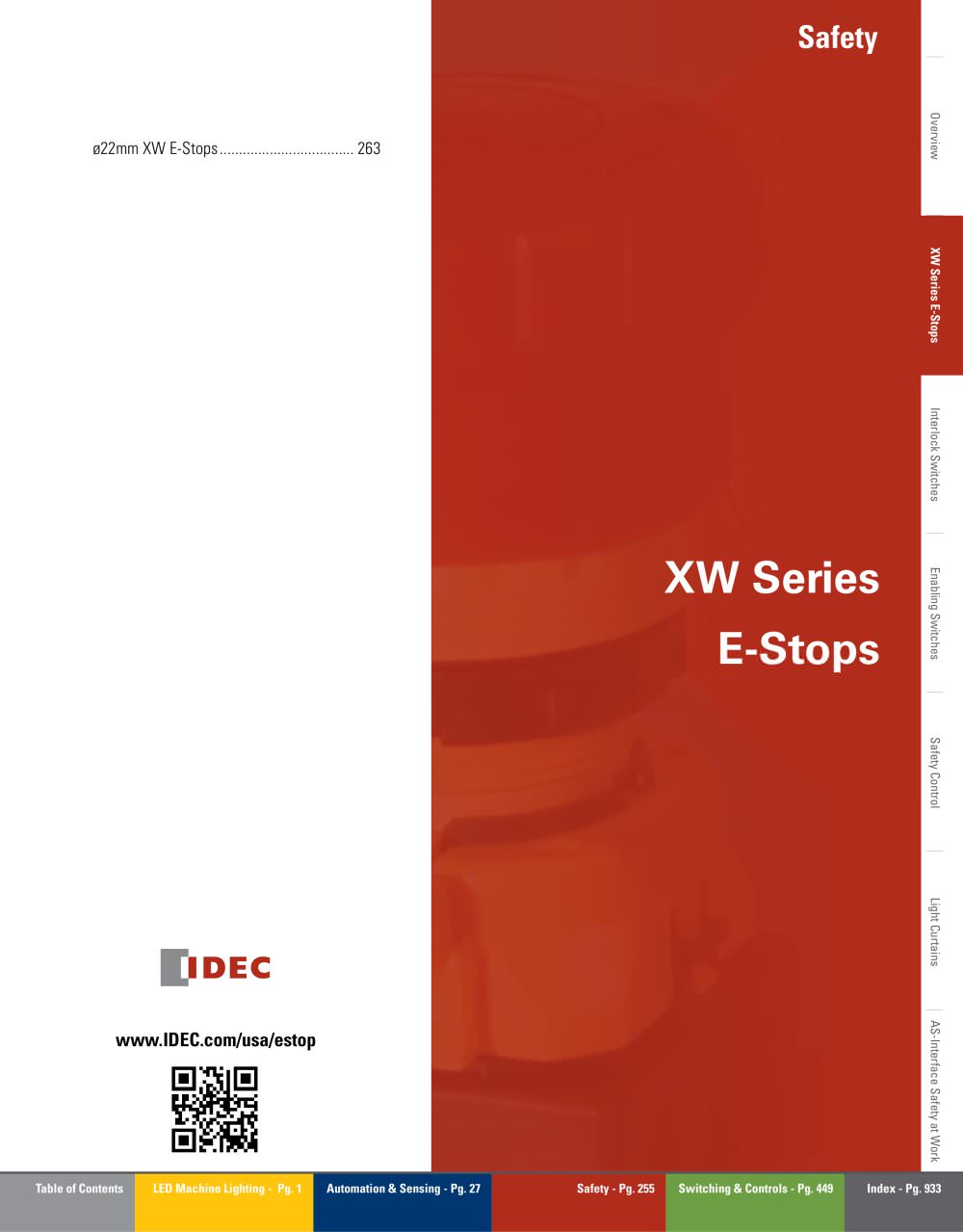

Complete X Series E-Stops Catalog
23Pages

X Series E-Stops X Series E-Stops Overview Revolutionary “Safe Break Action” Design The IDEC Emergency Stop switches, the XA, XW, and XN series, include revolutionary new technology that will change the way E-Stop switches are designed. This “safe break action” concept provides greater levels of human safety and is the first of its kind in the world! Conventional E-Stop switches are designed with spring pressure on the Normally Closed (NC) contacts, keeping them in the closed position and allowing the machine to operate. Improper installation or excessive force to the stop button in an...

X Series E-Stops X Series E-Stops Important Safety Information Overview X Series E-Stops have lower internal energy in the “Locked” (Latching) position than in the “Normal” (Reset) position. When the switch is damaged from an excessive shock, the main contact (NC) moves toward the OFF (Safe) position. Direct Opening Action XW Series E-Stops Even if the contacts are welded, the force applied on the button directly opens the contact. Rated Insulation Voltage: 250V Rated Thermal Current: 2.5A Safety Interlock Mechanism Contacts are opened when the operator is locked, and remain opened until...

X Series E-Stops X Series E-Stops Interlock Switches XW Series E-Stops Overview Selection Guide Series XA XW XN see Switches & Pilot Devices section 263 see Switches & Pilot Devices section 16mm 22mm 30mm Appearance Page Mounting Hole Operator Type Illuminated & Non-Illuminated E-Stops: Pushlock/Turn Reset, Push-Pull Reset Action Pushlock Pull or Turn Reset (both actions available in each switch, except XN4E) Contact Configuration 1NO - 1NC, 2NC, 1NO-3NC, 4NC Enabling Switches Electrical Life 100,000 Minimum Mechanical Life 250,000 Minimum Termination Degree of Protection PCB & Solder...

XW Series E-Stops 22mm XW E-Stops 22mm XW E-Stops Overview Key features: IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, UL508, UL991, CSA C22.2 No. 14 Non-illuminated: –25 to +60°C (no freezing), Illuminated: –25 to +55°C (no freezing) 45 to 85% RH (no condensation) –45 to +80°C Operating Force Push-to-lock: 32N Pull-to-reset: 21N Turn-to-reset: 0.27N·m Minimum Force Required for Direct Opening Action 80N Min Operator Stroke Required for Direct Opening Action 4mm Maximum Operator Stroke 4.5mm Contact Resistance 50mΩ maximum (initial value) Contact Material Gold plated silver...

XW Series E-Stops 22mm XW E-Stops Part Numbers Overview Style Operator Type Monitor Contact Non-Illuminated Main Contact Part Number 1NO XW1E-BV411M-R 2NC XW1E-BV402M-R 2NO 40mm Mushroom 1NC – 2NC XW1E-BV422M-R 1NO 3NC XW1E-BV413M-R – 4NC XW1E-BV404M-R XW1E-BV511M-R 2NC XW1E-BV502M-R 2NO 2NC XW1E-BV522M-R 1NO 60mm Mushroom 1NC – XW Series E-Stops 1NO 3NC XW1E-BV513M-R – Illuminated 4NC XW1E-BV504M-R 1NO 1 1NC XW1E-LV411Q4M-R – Interlock Switches XW1E-LV422Q4M-R 3NC XW1E-LV413Q4M-R – 40mm Mushroom Push-ON LED XW1E-LV402Q4M-R 2NC 1NO 4NC XW1E-LV404Q4M-R 1NO 2 2NC 2NO 40mm Mushroom LED with...

XW Series E-Stops Contact Ratings 22mm XW E-Stops Mounting Hole Layout Rated Current (Ith) Measurements øA 250V 5A 125V – 5A 3A Resistive Load (AC-12) – 3A 0.4A 0.22A 0.1A Resistive Load (AC-12) – 1.2A 0.6A – 0.6A 0.3A Panel Thickness 0.80.4A to 6 2A 0.2A Inductive Load (AC-14) Illuminated Resistive Load (DC-12) 20.1 Inductive Load (DC-13) 1A 0.22A Panel Cutout R0. ax. ø22 .3 M3 Terminal Screw Current Gasket Locking Ring Part Number Key 0.5 15mA X2 X1 *4 *1 R *3 L X2 X1 *2 *1 *2 *1 LED *3 R *4 *3 X2 X1 *4 *3 R Terminal Marking Description *4 LED L LED X1 X2 *3 TOP *4 L ∗4 R X2 • Contact...

XW Series E-Stops 22mm XW E-Stops XW LED Illuminated/Push-ON (with terminal cover) Illuminated R0. ø22 8m ax. .3 +0.4 0 R0. 18.5 8 +0.2 0 3.2max. ø22 .3 +0.4 Gasket M3 Terminal Locking Ring Screw 18.5 R0. ax. .3 Push-ON 0.5 18.5 3.2 +0.4 0 M3 Terminal M3 Terminal Screw Screw 20.1 +0.2 0 +0.4 0 +0.2 0 Gasket Gasket Locking Ring Locking Ring M3 Terminal Screw 0.5 ø40 ø40 37 37 37 37 +0.4 0 ø40 32 32 Terminal Cover IP20 Protection Cover XW9Z-VL2M XW9Z-VL2MF 0 IP20 Protection Cover XW9Z-VL2MF ø6 0.5 Interlock Switches 47.2 48.7 Terminal Cover XW9Z-VL2M Panel Cut-out 48.7 32 47.2 48.7 32 ø40mm...

XW Series E-Stops 22mm XW E-Stops Operating Instructions Installing the Contact Block First unlock the operator button. Grab the bayonet ring j and pull back the bayonet ring until the latch pin clicks k, then turn the contact block counterclockwise and pull out l. First unlock the operator button. Align the small t marking on the edge of the operator with the small s marking on the yellow bayonet ring. Hold the contact block, not the bayonet ring. Press the contact block onto the operator and turn the contact block clockwise until the bayonet ring clicks. k Turn counterclockwise Bayonet...

XW Series E-Stops 22mm XW E-Stops IP20 Protection Terminal Cover XW9Z-VL2MF Overview Screw Terminal 1. Wire thickness: AWG18 to 16 To install the IP20 protection cover, align the TOP marking on the cover with the TOP marking on the contact block, and press the cover toward the contact block. 2. Tighten the M3 terminal screw to a tightening torque of 0.6 to 1.0 N·m. Installing and Removing Terminal Covers Enabling Switches Interlock Switches XW Series E-Stops XW9Z-VL2M (Press) To install the terminal cover, align the TOP marking on the terminal cover with the TOP marking on the contact...

Switches & Pilot Devices ø16mm XA E-Stops Switches & Pilot Devices 16mm XA E-Stops Key features: Signaling Lights UL File No. E68691 CCC No. 2005010305150899 Relays & Sockets • Two button sizes: ø29 and ø40mm • Lead-free, RoHS compliant, (EU directive 2002/95/EC) • Depth behind the panel: Standard - only 27.9mm for 1 to 4 contacts Unibody - only 23.9mm for 1NC or 2NC • IDEC’s original “Safe break action” ensures that the NC contacts open when the contact block is detached from the operator. • Push-to-lock, Pull or Turn-to-reset operator • Direct opening action mechanism (IEC60947-5-5, 5.2,...
