Overview

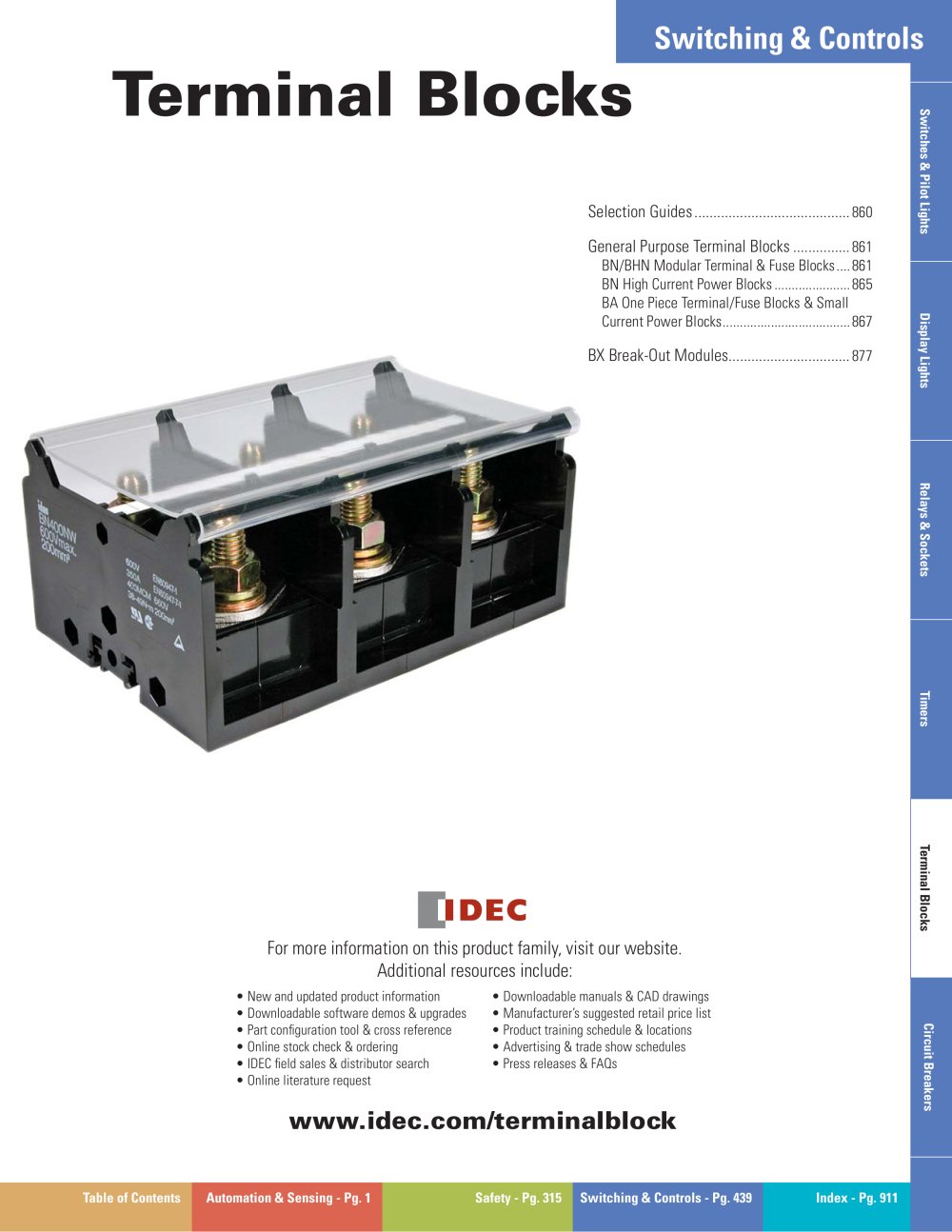

This document details IDEC's terminal blocks product family, covering modular and one-piece terminal blocks, fuse holders, power blocks, and accessories. It includes specifications, features, approvals, mounting options, dimensional data, and installation instructions for various series.

Key Features

• Flame- and shock-resistant UL94-V0 molded materials
• Mountable on standard 35mm DIN rails
• Available marking strips and dust covers for safety and identification
• Options for control circuits, power circuits, and fuse blocks
• Sectional (modular) or one-piece construction

General Specifications

• Insulation Voltage: 600V
• Dielectric Strength: 2,500V AC for 1 minute
• Insulation Resistance: Minimum 100 MΩ
• Operating Temperature: -25°C to +55°C
• Operating Humidity: 45% to 85% RH

Product Series and Selection Guide

BNH/BN Terminal Blocks

Features:

• Touch-down terminals with spring-loaded captive screws
• Jumpers available for models up to 30A
• Fuse blocks optionally with blown-fuse indicators (neon or LED)
• Mount on 35mm DIN rail
• UL Recognized and CSA Certified

Specifications: Voltage 600V, current ratings 10A to 150A, wire sizes 22 AWG to 0 AWG, terminal sizes M3 to M8, torque ranges per model.

Accessories: end plates, DIN rail stops, dust covers, marking strips (PVC and fiberglass), end clips, jumpers (ring and fork types), aluminum DIN rails (1m length).

BNF Fuse Blocks

Features: Fuse holders with no indicator, neon (100–300VAC), or LED (24V DC) blown fuse indicators. Rated 600V/10A max, wire sizes 18 to 10 AWG, mount on 35mm DIN rail.

Accessories: end plates, DIN rail stops, marking strips. Fuses not included.

BN Power Blocks

• Power blocks up to 350A
• Mountable on DIN rail or panel surface
• 2, 3, and 4 pole models
• UL Recognized and CSA Certified

Specifications: Voltage 600V, current 200A or 350A, wire sizes 0000 AWG to 400 MCM, terminal studs M10 or M12 with hex nuts, torque 21-49 N·m.

Includes dust covers and marking strips. Dimensional tables for all configurations provided.

BA Fuse Blocks and Power Blocks

• Self-contained design, no end plates needed
• Heavy-duty rugged construction
• Current up to 40A
• 3-pole units as one piece
• Fuse blocks with blown fuse indicators (none, neon, LED)
• UL Recognized and CSA Certified

Specifications: Voltage 150V to 600V, current 10A to 40A, wire sizes 22 to 6 AWG, terminal sizes M3 to M5, standard screw terminals, mount on 35mm DIN rail.

Accessories: DIN rail stops, dust covers, marking strips (PVC and fiberglass), end clips.

Accessories

• Aluminum DIN rails (1m length)
• Marking strips (PVC and fiberglass)
• Dust covers, end plates, DIN rail stops
• Jumpers (ring and fork terminal types)
• Connecting rods and nuts for dual-deck blocks

General Recommendations and Best Practices

• Apply correct torque values for terminal screws to ensure secure connections
• Select terminal blocks and fuse holders based on current and voltage requirements
• Use marking strips and dust covers for safety and clear identification
• Ensure compatibility with standard 35mm DIN rails
• Consult dimensional data for proper panel or DIN rail space planning

Terminal Blocks Accessories

Includes detailed part numbers and descriptions for:

• End Plates: used to close terminal block rows and provide mechanical protection
• DIN Rail Stops: prevent side-to-side movement; available in three sizes (BNL5, BNL6, BNL8)
• DIN Rail Stand-Offs: elevate terminal blocks (BNS3 - 37mm, BNS4 - 77mm)
• DIN Rails: aluminum, 1000mm length (BNDN1000)
• Dust Covers: polycarbonate UL94-V2, 1000mm length
• Marking Strips: PVC (BNM7) and fiberglass (BNM9), 9.5mm x 1000mm, with fasteners (BNM3)
• Jumpers: ring and fork terminal types, insulated versions available
• Mounting Hardware: surface mount brackets, threaded rods, connecting nuts, removal tools

Dimensions

• DIN Rail: 1000mm length, cross-section and slot details provided
• Jumpers: detailed dimensions including insulation thickness and pole counts
• DIN Rail Stops and Stand-Offs: mounting hole sizes and angles specified
• End Plates: lengths range from 38.5mm to 74.5mm depending on part

Installation Instructions

• Wiring BNH Series Touch-Down Terminals: Insert wire with screw open, push screw down to hold wire, tighten screw, loosen to remove wire
• Terminal Block Installation/Removal: Slide onto DIN rail, secure with BNL5 or BNL6 clips, snap down to lock, use BND2 tool for removal
• Mounting Double-Deck Terminal Blocks: DIN rail mount with end plates and BNL-8 clips; panel mount using BNDL2 clips, threaded rods, and nuts
• Calculating DIN Rail Length: Sum terminal block widths, add end plate thickness, add DIN rail stops width, round to nearest 50mm, add 25mm clearance each end

Torque Specifications

• Screw sizes M3 to M12 with torque values from 0.6 N·m to 49 N·m
• Dimensions for screw heads and threads provided for correct tool selection

Electrical Ratings

• Current ratings depend on wire gauge and temperature (60°C)
• Range from 3A (22 AWG) up to 350A (200mm² wire)
• UL and CSA certification ratings specified

BX Series Terminal Blocks

• Unique touch-down terminals with UL94-V0 flame- and shock-resistant PPE resin housing
• Mountable on DIN rail or flat surface
• Current capacity: 1A
• Available in 16, 20, 26, 34, 40, and 50 pin configurations
• Hinged covers with built-in marking strips

Specifications: Terminal width 7.62mm (M3 screw), rated voltage 125V, wire size 22-14 AWG, insulation resistance ≥100MΩ at 500V DC, dielectric strength 500V AC for 1 minute, operating temperature -10 to 65°C, humidity 45-85% RH.

Applications: Compatible with MicroSmart CPUs and I/O modules (FC4A, FC5A).

Accessories: Break-out modules, cables, DIN rail (BNDN1000), DIN rail stops (BNL6).

Terminal Arrangements and Dimensions: Pin numbering and physical dimensions provided for all pin counts.

Critical Information Summary

• Use appropriate end plates and DIN rail stops to secure terminal blocks and prevent movement
• Follow specified torque values for terminal screws to ensure reliable electrical connections
• Calculate DIN rail lengths carefully including terminal blocks, end plates, stops, and clearance
• BX series designed for low current (1A) applications with flame-resistant housing
• Installation and removal tools and procedures facilitate maintenance and safety

This comprehensive technical data supports proper selection, installation, and maintenance of IDEC terminal block systems across a wide range of electrical control and power distribution applications.
