IDEC
Complete Relay & Socket Catalog

Complete Relay & Socket Catalog

Product catalog summary

Overview: This document provides comprehensive technical specifications and configurations for IDEC's RH and RJ series relays and sockets, detailing relay types, internal connections, dimensions, and mounting options.

Relay Types and Features:

Basic Types: Includes SPDT, DPDT, 3PDT, and 4PDT relays with options for check buttons and indicators.
Indicator Types: Relays with LED or neon lamp indicators for various voltage levels.
Diode Types: Relays with diodes for back EMF absorption, available for DC coils only.

Specifications:

Diode Characteristics: Reverse withstand voltage of 1,000V and forward current of 1A.
Contact Ratings: Vary by model, specifying maximum allowable switching current and voltage.
Coil Ratings: Detailed for AC and DC models, including rated current, resistance, and power consumption.

Dimensions and Mounting:

Standard and Finger-safe DIN Rail Mount Sockets: Dimensions and terminal arrangements for various models.
PCB Mount Sockets: Specifications include terminal arrangements and mounting hole dimensions.
Through Panel Mount Sockets: Details on panel thickness and terminal arrangements.

RJ Series Relays:

Features: Compact design, large switching capacity, and high visibility LED indicators.
Electrical and Mechanical Life: Long operational life with specific ratings for AC and DC loads.
Compliance: RoHS directive compliant and certified by UL, CSA, and EN standards.

Ordering Information: Part numbers and coil voltage codes for various configurations, including standard, high capacity, and models with LED and surge suppression diodes.

Specifications:
1. Insulation Resistance: Minimum 0 MΩ at 500V DC.
2. Dielectric Strength: 1500V AC for pin terminals and 2000V AC for blade terminals for 1 minute.
3. Operating Frequency: Electrical operations up to 1800 per hour, mechanical operations up to 18,000 per hour.
4. Vibration Resistance: 10 to 55 Hz with 0.5 mm amplitude.
5. Shock Resistance: Damage limits at 1000 m/s² (100g), operating extremes at 100 m/s² (10G).
6. Mechanical Life: 10,000,000 operations.
7. Electrical Life: 200,000 operations at 220V AC, 5A.
8. Operating Temperature: -25 to +40°C without freezing.
9. Operating Humidity: 5 to 85% RH without condensation.
10. Weight: Varies by model, e.g., RR2P: 90g.

Coil Ratings:
1. AC Voltage: Ranges from 6V to 240V.
2. DC Voltage: Ranges from 6V to 110V.
3. Operating Characteristics: Maximum continuous applied voltage at 110%, pickup voltage at 80% maximum, dropout voltage at 30% minimum for AC and 10% minimum for DC.

Contact Ratings:
1. Maximum Contact Capacity: Continuous current of 10A.
2. TÜV, UL, and CSA Ratings: Specified for various voltages and load types.

Socket Specifications:
1. DIN Rail Sockets: Electrical rating of 300V, 10A.
2. Through Panel Mount Sockets: Electrical rating of 300V, 10A.

RU Series Universal Relays:
1. Features: Environmentally considerate design, plug-in and PCB mount styles, non-polarized LED indicator, cadmium-free contacts, and mechanical flag indicator.
2. Contact Ratings: Maximum ratings of 10A (RU2), 6A (RU4), 3A (RU42).
3. Certifications: UL Recognized, CSA Certified, EN Compliant.

Accessories:
1. Hold Down Springs & Clips: Available for various relay models.
2. Marking Plates: Available in multiple colors for easy identification.
3. DIN Rail and End Stops: Aluminum DIN rail and end stops for mounting.

Coil Ratings: Detailed specifications for coil ratings, including rated voltage, current, and resistance for both AC and DC coils.

Surge Suppressor Ratings: AC coils equipped with RC series circuits, DC coils use diodes with specified reverse voltage and forward current ratings.

Contact Ratings: Maximum contact capacity for different relay types, including continuous current and allowable contact power for resistive and inductive loads.

UL, c-UL, CSA, and TÜV Ratings: Voltage and current ratings for resistive and inductive loads under various standards.

Socket Specifications: Details on socket types, terminal arrangements, electrical ratings, wire sizes, and torque specifications for different mounting options.

Electrical Life Curves: Graphs illustrating the operational lifespan of relays under resistive and inductive loads.

Temperature Rise Curves: Curves showing the relationship between ambient temperature and temperature rise for different relay models.

Internal Connection Diagrams: Diagrams for standard and modified relay models, showing terminal connections for various coil voltages.

Dimensions: Detailed dimensional drawings for different relay and socket models.

RY/RM Series Miniature Relays: Specifications for miniature relays with different contact capacities and terminal styles.

Accessories: Information on available accessories, such as DIN rails, end stops, and hold-down springs.

Specifications:
1. Insulation Resistance: Minimum of 0 MΩ at 500V DC.
2. Dielectric Strength: 1500V AC to 2000V AC for 1 minute.
3. Operating Frequency: Electrical operations up to 1800 per hour, mechanical operations up to 18,000 per hour.
4. Vibration Resistance: 10 to 55 Hz with 0.5 mm amplitude.
5. Shock Resistance: Damage limits at 1000 m/s².
6. Mechanical Life: 50,000,000 operations.
7. Electrical Life: Up to 500,000 operations.
8. Operating Temperature: -25 to +55°C.
9. Operating Humidity: 45 to 85% RH.
10. Weight: Approximately 23g to 35g.

Coil Ratings:
1. AC Coil Ratings: Voltage ranges from 6V to 240V.
2. DC Coil Ratings: Voltage ranges from 6V to 110V.

Contact Ratings:
1. UL and CSA Ratings: Maximum contact capacity varies by voltage and relay type.
2. TÜV Ratings: Similar to UL and CSA.

Socket Specifications:
1. DIN Rail Mount Sockets: Various models with specific electrical ratings.
2. Through Panel Mount and PCB Mount Sockets: Specific models with defined electrical ratings.

Operating Instructions:
1. Ensure correct relay operation by applying rated voltage to the relay coil.
2. For DC coils, use a complete DC voltage for stable operation.

Socket Specifications: Various socket types including DIN Rail Mount, Through Panel Mount, and PCB Mount Sockets with electrical ratings of 300V, 7A.

Electrical Life Curve: Graphs showing the electrical life expectancy of sockets under different load conditions.

RSC Series Solid State Relays: Features include a slim design, built-in heat sink, and options for 20A, 30A, and 45A models.

RSS Series Solid State Relays: Features include input status LED indicator, dual SCR output, and zero voltage turn-on.

Recommended Loads: Guidelines for transformer, heater, solenoid valve, and lamp loads.

Technical Notes: Recommendations on avoiding excessive heat, using heat sinks, and proper wiring.

Temperature Derating Curves: Curves for different SSR output ratings, illustrating load current capacity decrease with increasing ambient temperature.

Catalog excerpts

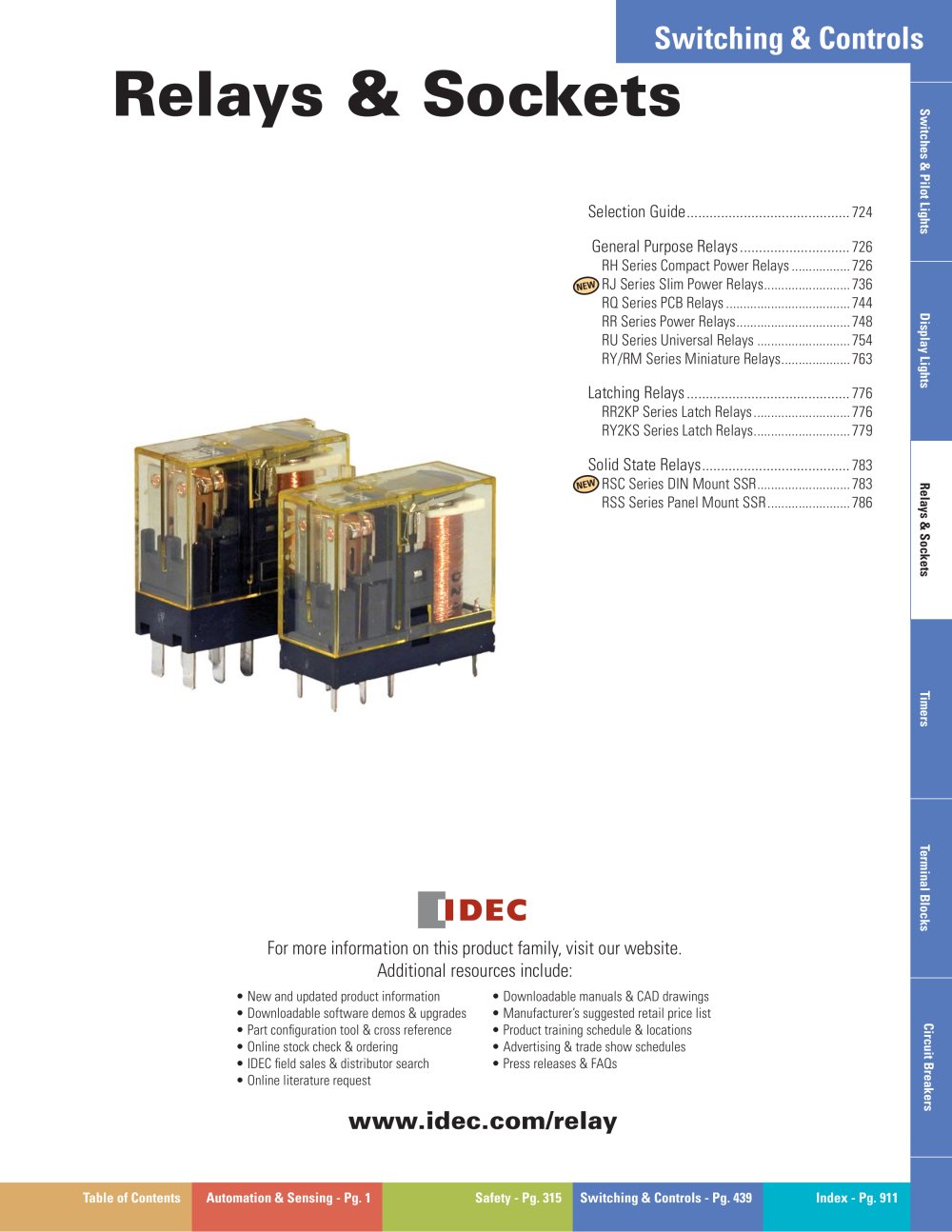

New and updated product information Օ Downloadable software demos & upgrades Part confi guration tool & cross reference Օ Online stock check & ordering IDEC fi eld sales & distributor search Օ Online literature request Downloadable manuals & CAD drawings Օ Manufacturers suggested retail price list ҕ Product training schedule & locations Advertising & trade show schedules Օ Press releases & FAQs Table of Contents Automation & Sensing - Pg. 1Safety - Pg. 315Switching & Controls - Pg. 439Index - Pg. 911 size="-2">

Open the catalog to page 1

RH SeriesRJ SeriesRQ SeriesRR SeriesAppearance > NEWModels Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Page 726736744748 Contact Confi guration SPDT, DPDT, 3PDT, 4PDTSPDT, SPST, DPDT, DPSTSPDT, DPDTSPDT, DPDT, 3PDT Terminal Blade or PCBBlade or PCBPCBPin or Blade Contact Material Silver-Cadmium OxideSilver-Nickel alloySilver-Nickel alloySilver Contact Rating(resistive) 10A, 30V DC/240V AC1/3HP, 240V AC 1/6HP, 120V ACSPDT: 12A/16A, 30V DC/250V ACDPDT: 8A, 30V DC/250V ACSPDT: 12A, 16ADPDT: 8A10A, 30V DC/ 240V AC1/3HP, 240V AC 1/4HP, 120V AC RU SeriesRY/RM...

Open the catalog to page 2

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers RR2KP SeriesRY2KSAppearance Page 776779 Contact Confi guration DPDTDPDT Terminal PinBlade 10A, 30V DC10A, 120V AC3A, 30V DC3A, 120V AC Contact Rating (resistive) Contact Material SilverSilver, gold-plated > Page 783786 Output Confi guration 1 Form A (SPST-NO)1 Form A (SPST-NO) Output Rating 20A, 30A, 45A48 - 600V AC10A, 25A, 50A, 75A, 90A 48 - 660V AC Output Dual SCR (zero crossing) >

Open the catalog to page 3

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Part Number ContactModelBlade TerminalPCB TerminalCoil Voltage Code (Standard Stock in bold) Basic RH1B-URH1V2-UAC6V, AC12V, SPDT AC24V , AC110V, AC120V , AC220V, AC240V DC6V, DC12V , DC24V , DC48V, DC110VWith IndicatorRH1B-ULWith Check ButtonRH1B-UCח With Indicator and Check ButtonRH1B-ULC Top Bracket MountingRH1B-UTח With Diode (DC coil only)RH1B-UDRH1V2-UDDC6V, DC12V , DC24V , DC48V, DC110VWith Indicator and Diode (DC coil only)RH1B-ULD DC12V , DC24V , DC48V, DC110VDPDT Basic RH2B-URH2V2-UAC6V, AC12V,...

Open the catalog to page 4

Maximum Contact CapacityModelContinuous Current Allowable Contact PowerRated Load VoltageResistiveGeneral UseHorse Power Rating RH1RH2RH3RH4RH1RH2RH3RH4RH1RH2RH3RH4240V AC10A7.5A7.5A7A6.5A5A1/3 HP1/3 HP120V ACח10A10A7.5A7.5A1/6 HP1/6 HPח 30V DC10A10A7Aחחח 28V DCח10Aחחח Resistive LoadInductive LoadVoltage (V)Res. LoadInd. LoadSPDT10A1540VA300W990VA210W110 AC10A7A220 AC7A4.5A30 DC10A7ADPDT3PDT 4PDT10A1650VA300W1100VA225W110 AC10A7.5A220 AC7.5A5A30 DC10A7.5A > Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Note: Inductive load for the rated load cos ׸...

Open the catalog to page 6

Contact Material Silver cadmium oxide > Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Contact Resistance > 1 50m maximum Minimum Applicable Load 24V DC, 30 mA; 5V DC, 100 mA (reference value) > 20ms maximum Operate Time > 2 20ms maximum Release Time > 2 AC: 1.1VA (50Hz), 1VA (60Hz) DC: 0.8W Power Consumption (approx.) > AC: 2.5VA (50Hz), 2VA (60Hz) DC: 1.5W Insulation Resistance 100M minimum (500V DC megger) Between live and dead parts: 2,000V AC, 1 minuteBetween contact and coil: 2,000V AC, 1 minute Between contacts of the same pole: 1,000V AC, 1...

Open the catalog to page 7

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers 10,000 operations) 10,000 operations) ח Life ( Life ( > 10,000 operations) 10,000 operations) ח Life ( Life ( > 10,000 operations) 10,000 operations) ח Life ( Life ( >

Open the catalog to page 8

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers 31.5 M3.5 TerminalScrew 18 14.5 8 DIN Rail (BNDN) >

Open the catalog to page 11

4.2 4.2 Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers 69 49 48 69 >

Open the catalog to page 12

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers >

Open the catalog to page 13

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers UL508 UL File No. E55996 CSA C22.2 No. 14 1608322 CSA File No. LR35144 EN61810-1 VDE (REG.-Nr B312) Reg.-Nr. B312 EN61810-1 EC Low Voltage Directive Part No. Coil Voltage Code

Open the catalog to page 14

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers RelaysStandard DIN Rail Mount Finger-safe DIN Rail MountPCB Mount Part NumberUsed With Socket RJ1S (Std) SJ1S-05B SJ1S-07L SJ1S-61RJ2S (Std) SJ2S-05B SJ2S-07L SJ2S-61 SJ9Z-C1SJ1S-05B, SJ1S-07L,SJ2S-05B, SJ2S-07L SQ9Z-CSQ1V-07B, SQ2V-07BSQ9Z-C63SQ1V-63, SQ2V-63 > Blade Models RJ1V (Std) SQ1V-07B* SQ1V-63*RJ1V (HC) RJ2Vח SQ2V-07B* SQ2V-63* > PCB Models *Hold-down clip or spring must be removed to use with RJ PCB relays. DescriptionAppearanceUse withPart No.Remarks Aluminum DIN Rail (1 meter length) All DIN...

Open the catalog to page 15

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers 250V ACResistive Load (NO contact)250V ACResistive Load (NO contact)250V ACResistive Load (NO contact) 30V DC Resistive Load(NO Contact) 30V DC Resistive Load (NO Contact) 30V DC Resistive Load (NO Contact) 10,000 operations) ( 10,000 operations) ( 10,000 operations) ח ( 1 1000 10100 10.1161 1000 10100 10.112 11 1000 10100 180.1 Load Current (A)Load Current (A)Load Current (A) AC Resistive (NO Contact) AC InductiveAC ResistiveDC Resistive(NO Contact)DC Resistive (NC Contact)DC Inductive (NO Contact)DC Inductive(NC...

Open the catalog to page 17

AC Coil (60 Hz) AC Coil (50 Hz) DC Coil > C) C) C) а Load Current 12A З 1 pole Load Current 12A 1 pole Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Load Current 12A ח 1 pole No Load Current No Load Current Temperature Rise ( Temperature Rise ( Temperature Rise ( No Load Current 0102030405060701020 30405060 708090100110120 130 010203040506070102030405060708090100110120 130 0102030405060701020 30405060 708090100 110120130 Ambient Temperature ( C) Ambient Temperature ( а C) Ambient Temperature ( C) > DC Coil AC Coil (50 Hz) DC Coil > 130120110 1009080706050...

Open the catalog to page 18
