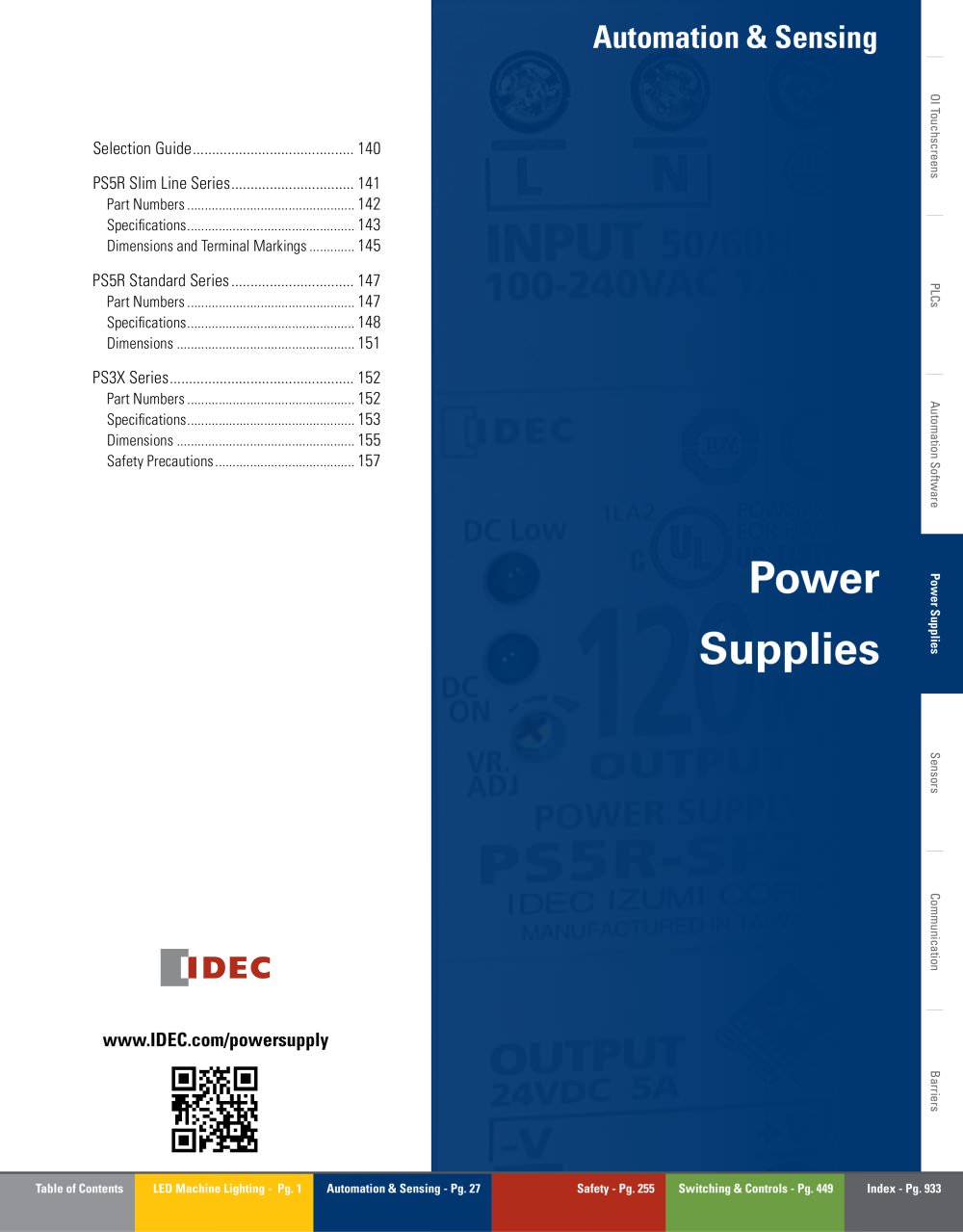

Complete Power Supply Catalog
20Pages

Power Supplies OI Touchscreens Selection Guide Selection Guide Series PS5R Slim Line PS5R PS3X PS3L 141 147 152 Visit www.IDEC.com/powersupply PLCs Appearance Page Housing Plastic Mounting DIN Rail or surface mount Metal Metal Direct or DIN Rail mount Panel or bracket mount 15W to 100W 10W to 300W Power Supplies 10W to 240W 7.5W to 240W Input Voltage 85 to 264 V AC, 100-370 V DC (100-350V DC, 120W & 240W) 85 to 264V AC, 105 to 370V DC 85 to 264V AC, 120 to 375V DC 85 to 264V AC, 105 to 370V DC 5VDC 2.0A 1.5A, 2.5A 3A, 5A, 12A, 16A 2A, 3A, 6A 12VDC 1.2A, 2.5A 0.6A, 1.2A, 2.5A 1.3A, 2.1A,...

Power Supplies PS5R Slim Line OI Touchscreens PS5R Slim Line Series Switching Power Supplies Key features: PLCs File #E234997 Automation Software • Lightweight and compact in size • Wide power range: 10W-240W • Universal input: 10W to 90W: 85-264V AC/100-370V DC 120W and 240W: 85-264V AC/100-350V DC • Power Factor Correction for 60W to 240W (EN61000-3-2) • Meets SEMI F47 Sag Immunity (120W & 240W only) • UL Listed for Class 1, Div. 2 Hazardous Locations • Overcurrent protection, auto-reset • Overvoltage protection, shut down • Spring-up screw terminal type, IP20 • DIN rail or panel surface...

Power Supplies OI Touchscreens PS5R Slim Line Part Numbers Rated Current Part Number 5V DC 2.0A PS5R-SB05 1.2A 0.65A 2.5A 3.75A PS5R-SE24 24V DC 5A PS5R-SF24 24V DC 10A PS5R-SG24 PS5R-SB24 12V DC 24V DC Watts PS5R-SB12 24V DC PLCs 12V DC Style Part Number 240 10 Rated Voltage Rated Current 120 Watts Rated Voltage 90 Style PS5R-SC12 Automation Software 15 30 Power Supplies 24V DC 60 1.3A PS5R-SC24 24V DC 2.5A PS5R-SD24 Sensors Accessories PS9Z-5R1B PS9Z-5R2B Panel Mounting Bracket for PS5R-SC and PS5R-SD PS9Z-5R1C Panel Mounting Bracket for PS5R-SE PS9Z-5R1E Panel Mounting Bracket for...

Power Supplies PS5R Slim Line 5V DC output PS5R-SB05 – – – – – 12V DC output PS5R-SB12 PS5R-SC12 – – – – 24V DC output Model PS5R-SB24 PS5R-SC24 PS5R-SD24 PS5R-SE24 PS5R-SF24 PS5R-SG24 15W (5V Model is 10W) 30W 60W 90W 120W 240W Output Capacity Input Voltage (single-phase, 2-wire) Input Current (maximum) 0.45A 0.9A 200VAC 0.3A 0.6A 2A 1.7A 2.3A 1.0A 1.4A 3.15A 3.5A 1.0A 1.7A 6.3A 50A maximum (at 200V AC) 132V AC: 0.38 mA maximum 264V AC: 0.75 mA maximum 0.75mA maximum 1mA maximum 5V DC 69% – – – – – 12V DC 75% 78% – – – – 24V DC 79% 80% 83% 82% Automation Software Output Current Ratings...

Power Supplies Temperature Derating Curves All IDEC Slim Line power supplies are listed to UL508, which allows operation at 100% capacity inside a panel. This eliminates the need to use oversize power supplies or utilize two power supplies derated at 50% of their rated output. 100 90 80 70 60 50 40 30 20 10 0 –10 Mounting A (standard) PS5R-SC Mounting B (upright) 100 90 80 70 60 50 40 30 20 10 0 -10 Mounting B, C, D Mounting C (left side up) 0 10 20 30 Mounting D (right side up) 40 50 55 60 65 70 PS5R-SD, -SE, -SF 100 90 80 70 60 50 40 30 20 10 0 -10 0 10 20 30 40 50 55 60 Operating...

Power Supplies PS5R Slim Line PS5R-SB PS5R-SC PS5R-SD Height 90mm Width 22.5mm Depth 95mm Height 95.0mm Width 36.0mm Depth 108.0mm INPUT 100-240VAC LOW PS5R-SE L N Height 115.0mm Width 46.0mm Depth 121.0mm INPUT 50/60Hz DC ON VR. ADJ ON OI Touchscreens Dimensions and Terminal Markings L N INPUT 50/60Hz DC ON VR. ADJ VR. ADJ OUTPUT -V OUTPUT +V -V +V PLCs OUTPUT Automation Software PS5R-SG Height 115.0mm Width 50.0mm Depth 129.0mm Height Width Depth 125 125.0 mm 80.0 mm 149.5 mm Power Supplies PS5R-SF 149.5 Sensors 80 Name Description V. ADJ Voltage adjustment Adjusts within ±10%; turn...

Power Supplies Mounting Bracket Dimensions (mm) PS9Z-5R1B (for PS5R-SB) PS9Z-5R2B (for PS5R-SB) PS9Z-5R1B PS9Z-5R1C (for PS5R-SC & PS5R-SD) PS9Z-5R2B 120 112 115 105 62.9 44 OI Touchscreens PS5R Slim Line PLCs 102 110 2-M4 tapped holes or 2-ø4.5 through holes (See the front page for mounting examples.) 26 38 12 24.7 2-M4 Tapped Holes or 2-ø4.5 Drilled Holes 2-M4 tapped holes or 2-ø4.5 through holes PS9Z-5R1G (for PS5R-SF & PS5R-SG) 135 Power Supplies 145 135 125 Automation Software PS9Z-5R1E (for PS5R-SE) 36 48 2-M4 Tapped Holes or 2-ø4.5 Drilled Holes 36 48 Barriers Communication Sensors...

Power Supplies PS5R Standard Series OI Touchscreens PS5R Standard Series Switching Power Supplies Key features: PLCs • Wide power range: 7.5W-240W • Universal input : 7.5W-50W: 85-264V AC/105-370V DC 100W: 85-132V AC/170-264V AC 240-370V DC (selectable) 75W, 120W, 240W: 85-264V AC/110-350V DC • Overcurrent/overvoltage protection • Power Factor Correction (75W, 120W, 240W models) EN61000-3-3 EN61000-3-2 • Voltage adjustment +10% • Spring-up crew terminal, IP20 (finger-safe) • DIN rail or panel surface mount • Approvals: CE marked UL 508 Listed c-UL TÜV approved EMC Directives: EN50081-2...

Power Supplies OI Touchscreens PS5R Standard Series Specifications PS5R-A05 — — — PS5R-B12 PS5R-C12 — — PS5R-A24 Output Capacity PS5R-B05* PS5R-A12 Model PS5R-B24 PS5R-C24 PS5R-D24 7.5W 15W 30W 50W PS5R-Q24 — — PS5R-E24 75W PS5R-F24 PS5R-G24 100W 120W 100 to 120V AC, 50/60Hz 200 to 240V AC, 50/60Hz (jumper selectable) 240 to 370V DC 240W 100 to 240V AC, 50/60Hz, 110 to 340V DC Input 100 to 240V AC nominal (85 to 264V AC), 50/60Hz (47 to 63Hz) 110 to 340V DC nominal (105 to 370V DC) Input Current (typical) PLCs Input Voltage (singlephase, 2-wire) 0.17A at 100V AC 0.3A at 100V AC 0.68A at...

Power Supplies Accessories Overcurrent Protection Characteristics PS5R-A/B Part Numbers: PS5R Accessories Appearance Description Part Number 100 DIN rail (1000mm) PLCs DIN rail end clip Output Voltage (%) BNDN1000 50 BNL5 0 100 The innovative terminals on the PS5R series use a spring-loaded screw. This makes installation as easy as pushing down and turning with a screwdriver. Installation time is cut in half since the screws do not need to be backed out to install wiring. The screws are held captive once installed and are 100% finger-safe. Screw terminals accept bare wire or ring or fork...
