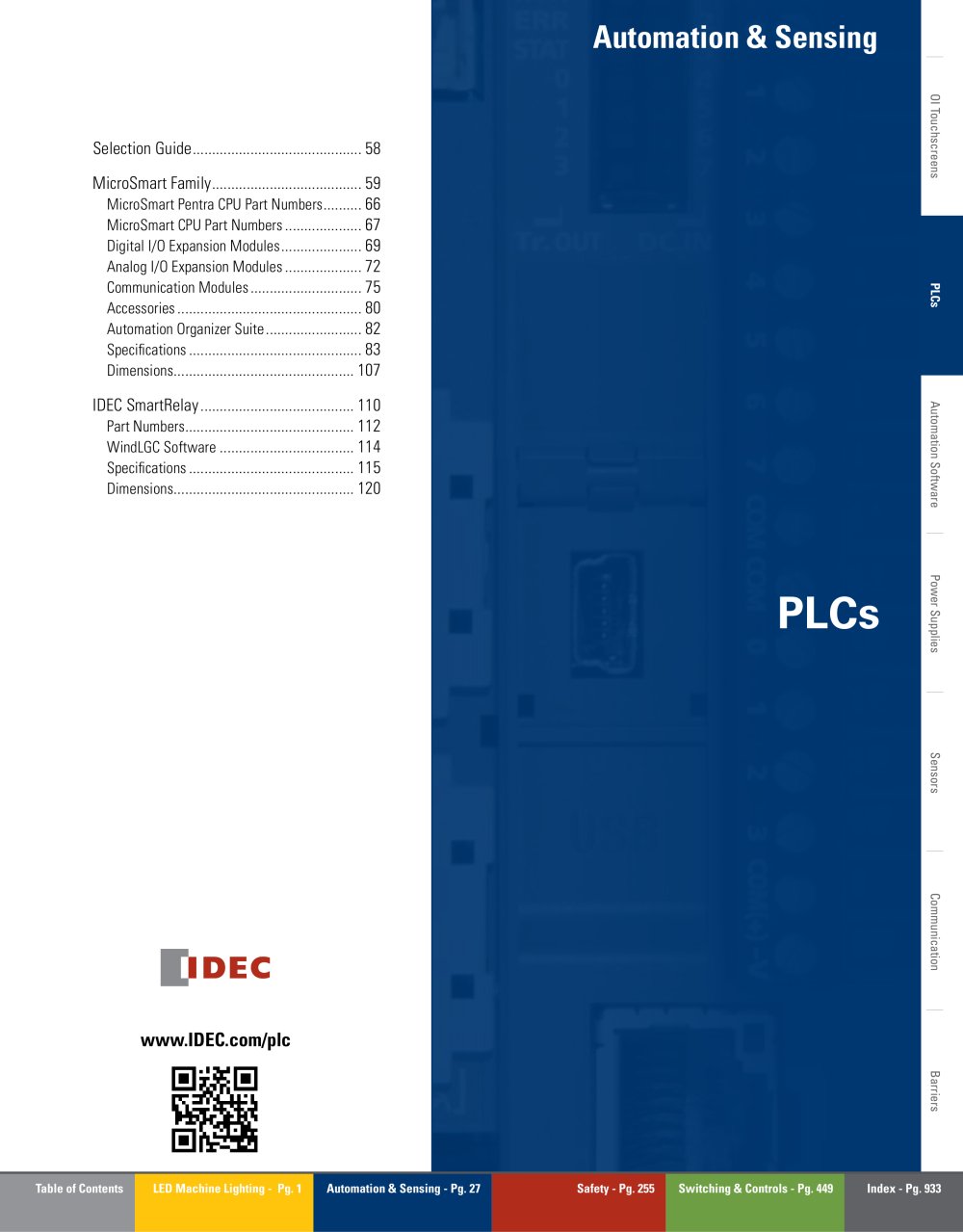

Complete PLC Catalog
64Pages

Programmable Logic Controllers Selection Guide Selection Guide OI Touchscreens Selection Guide Programmable Logic Controllers MicroSmart Family Series MicroSmart Pentra MicroSmart 59 67 OpenNet Controller (ONC) SmartRelay PLCs Appearance Page Number Visit www.IDEC.com/PLC 110 Automation Software Rated Voltage 12 VDC, 24 VDC, 100-240 VAC 24 VDC, 100-240 VAC 24 VDC 12-24 VDC, 24 VAC/DC, 100-240 VAC/DC Max. Digital I/O 512 264 480 40 42 10 CPU base module only 12 I/O 32K bytes 2K bytes Max. Analog I/O Maximum Program Capacity Max. Communication Ports 56 Slim style: 20, 40 I/Os Brick style: 10,...

Programmable Logic Controllers MicroSmart Pentra Series OI Touchscreens PLCs MicroSmart Pentra Series Safety Maximize efficiency and cut development time! MicroSmart Pentra PLCs combine advanced networking capabilities with unparalleled power, performance and connectivity. Designed to meet all your communication requirements, now and in the future, MicroSmart Pentra PLCs give you the flexibility to expand your system with as many as fifteen modules! Our new Embedded Ethernet PLC with built-in Modbus TCP also lets you remotely monitor status in real-time, receive email alerts and customize...

Programmable Logic Controllers MicroSmart Pentra Performance Embedded Ethernet Port Remote Access and Control The new MicroSmart Pentra PLC with an embedded Ethernet port, you can configure the MicroSmart Pentra PLC for remote monitoring and control. Using WindLDR software, you can remotely monitor or update the PLC programs without having to be near the PLC. PLCs OI Touchscreens MicroSmart Pentra Series Web Server Functions Using standard web browsers like Internet Explorer or Firefox, you can remotely log-in and access web pages that are stored directly on the MicroSmart Pentra PLC. Up to...

Programmable Logic Controllers MicroSmart Pentra Series Modbus TCP, RTU and ASCII OI Touchscreens Web Browser - Remote Monitor & Control WindLDR Software Monitor & Update Program SCADA Supervisory Controls TCP Modbus TCP Server 255 Modbus TCP Client Ethernet Modbus TCP Server 3 Modbus TCP Server 2 Pentra with Radio Modem OI Touchscreen PLCs Modbus TCP Server 1 VFD Pentra Pentra OI Touchscreen Modbus RTU/ASCII RS485 Automation Software Temperature Controller Pentra with Radio Modem Using intuitive WindLDR software, you can configure the MicroSmart Pentra to be a Master or Slave device on a...

Programmable Logic Controllers MicroSmart Pentra Series Power Supplies Automation Software PLCs OI Touchscreens User Web Pages With IDEC MicroSmart Pentra, users do not need to know JAVA programming to embed dynamic values and parts on their PLC web pages. Even novice HTML programmer can take full advantage of the integrated IDEC system library of numerical display/input, horizontal and vertical bar graphs, trend chart, ON/OFF pilot lights and pushbuttons. Up to 1MB of memory is reserved for user web pages. Integrated 100KHz Fast Inputs and Outputs Configure up to four high-speed inputs...

Programmable Logic Controllers MicroSmart Pentra Series Maximum 7 Communication Ports Port 6 RS232C/ RS485 Port 1 RS232C VFD Automation Software Port 5 RS232C/RS485 PLCs With MicroSmart Pentra PLCs, you don’t have to worry about limited communication capabilities. It doesn’t matter if you’re just starting out or a current user expanding your MicroSmart Pentra PLC, you can rest assured that these communication modules will provide reliable and seamless communication. If RS485 modules are used for all six ports, up to 186 RS485 slave devices can be connected with as high as a 115K baud rate...

Programmable Logic Controllers OI Touchscreens MicroSmart Pentra Series Choose a CPU for every application With three controller types to choose from, MicroSmart Pentra PLCs offer the features you need for your applications. Built to allow you the flexibility to expand when you need to, MicroSmart Pentra PLCs are the best way to get everything you need in just one controller. Potentiometer PLCs Power, Status, I/O LED Indicators Removable Terminal Block Automation Software Optional HMI module Optional Clock Cartridge USB mini-B Programming Port Optional HMI base module Optional EEPROM...

Programmable Logic Controllers MicroSmart Pentra Series OI Touchscreens Potentiometer 0-10V DC Analog Input (8-bit resolution) Potentiometer (x2) Optional HMI module RS232C port PLCs RS232C port Automation Software Optional Clock Cartridge Optional EEPROM cartridge Power, Status, I/O LED Indicators Power Supplies • Optional RS232C adaptor (8-pin mini DIN connector) • Optional RS485 adaptor (8-pin mini DIN or screw terminal connector) Screw Terminal or MIL connector termination Sensors • Optional EEPROM cartridge • Optional Clock Cartridge All-in-One CPU If you don’t need Ethernet, but still...

Programmable Logic Controllers OI Touchscreens MicroSmart Pentra Series MicroSmart Pentra CPU Part Numbers Slim Base Module with Embedded Ethernet Style Part Number Embedded I/Os Operating Voltage Ethernet & USB Port FC5A-D12K1E Output Maximum No. of Expansion Modules Transistor Sink 12 (8in/4out) 24V DC 15 (Maximum 492 digital I/Os) Yes Transistor Source PLCs FC5A-D12S1E Slim Base Module Automation Software Style Part Number Operating Voltage Ethernet & USB Port Output 6 Relays, 2 Trans. Sink FC5A-D16RK1 15 (Maximum 496 digital I/Os) 16 (8in/8out) 6 Relays, 2 Trans. Source FC5A-D16RS1 24V...

Programmable Logic Controllers MicroSmart Series OI Touchscreens MicroSmart Performance MicroSmart Series Key features: PLCs • Available in 10, 16, 20, 24, and 40 I/O CPUs. • PID Controls -Program up to 14 PID loops • High Speed I/O -Built-in 4 high speed inputs -Single or Dual Phase -Max. 20KHz frequency • Built-in 2 High speed outputs (Slim model only) • Configure up to 264 I/O Points • Data link up to 32 MicroSmart and Pentra CPUs • Using RS485 communication module/port, you can create a network of up to 32 CPUs. • Worldwide Approvals -cULus listed, CE marked -Class 1 Div. 2 for...
