IDEC

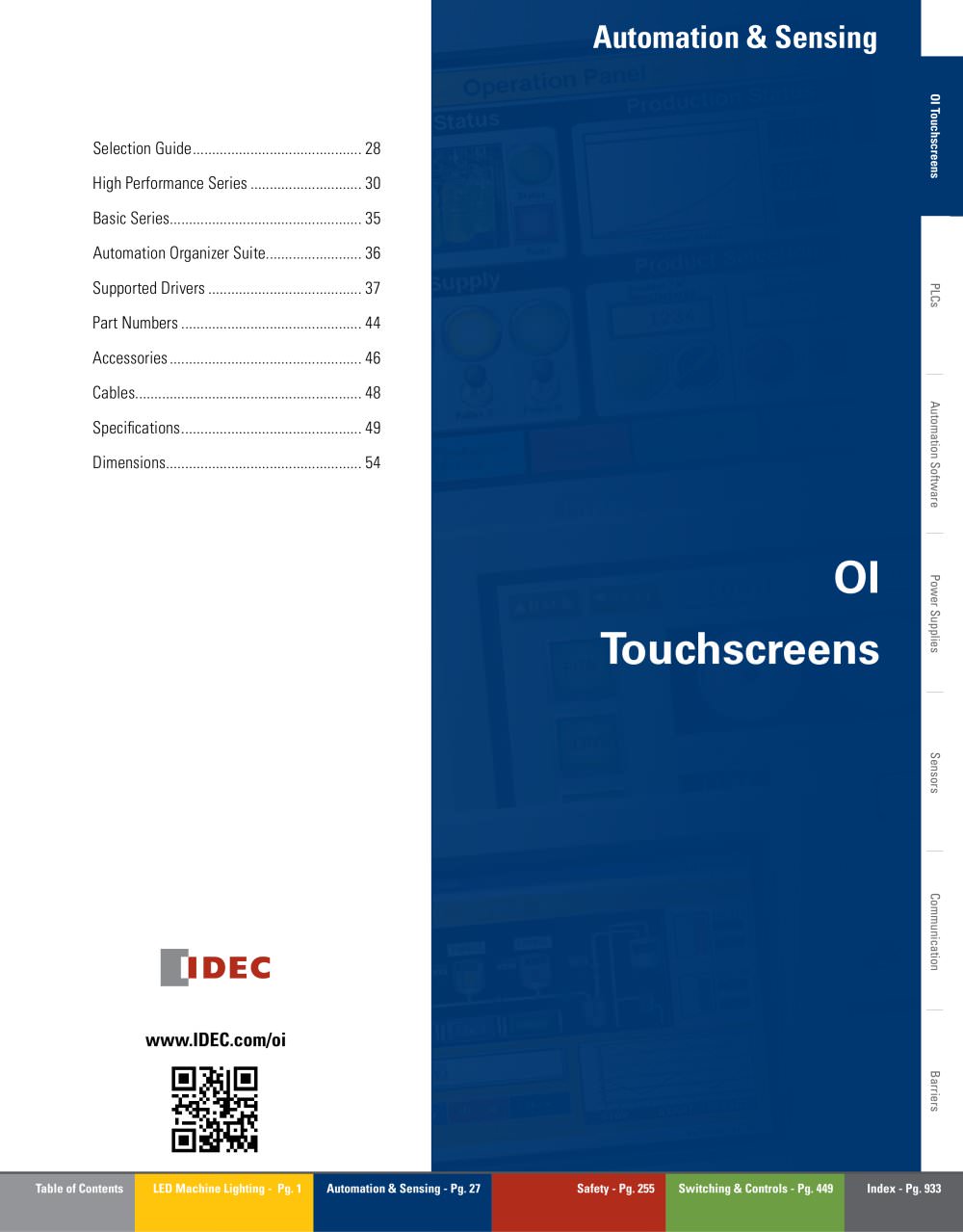

Complete O/I Catalog

Complete O/I Catalog

Product catalog summary

Overview: The document provides comprehensive details on IDEC's Operator Interface (OI) touchscreens, focusing on specifications, features, and connectivity options. It includes sections on selection guides, specifications, and key features of different touchscreen models.

High-Performance Series:

Sizes and Display: Available in 5.7”, 8.4”, 10.4”, and 12.1” sizes with 65,536 Color TFT LCD displays.
Mounting and Brightness: Supports portrait or landscape orientation with brightness up to 800 cd/m².
Connectivity: Features serial, Ethernet, and USB ports for remote access and control.
Video and Audio: Includes interfaces for real-time monitoring and playback.
Approvals: Certified by standards such as IP66, UL508, and CSA.

Basic Series:

Display Options: Offers 5.7” color and monochrome displays, and a 4.6” monochrome display.
Connectivity: Compatible with RS232, RS485, and RS422, with optional Ethernet ports.
Power and Brightness: Operates on 12-24 VDC with brightness up to 500 cd/m².

Key Features and Benefits:

Energy Efficiency: Utilizes LED backlights for reduced energy consumption.
High-Speed Processing: Equipped with a 400MHz RISC processor.
Flexibility and Storage: Supports SD cards up to 32GB and USB connectivity.

Specifications:

Super bright LCD screen with 500 cd/m² brightness.
Analog resistive touch panel.
High resolution of 300x100 pixels.
Screen orientation options: landscape or portrait.
Large memory capacity of 1MB.

Supported Drivers: Over 100 serial and networking drivers are supported. For a complete list, visit the IDEC website.

Automation Organizer Software Suite:

Includes PLC programming software (WindLDR) and OI programming software (WindO/I-NV2).
Facilitates system design and device configuration.
Features an intuitive interface with drag-and-drop functionality.

Supported Devices and Communication: Lists various manufacturers and their series, applicable CPUs, communication modules, and types, detailing compatibility with OI touchscreen series (HG4G, HG3G, HG2G, HG1F).

Part Numbers:

High Performance Series: Models like HG4G-CJT22MF-B (Black, 12.1” 65K Color TFT).
Basic Series: Models like HG2G-5ST22TF-W (Light Gray, 5.7” 256 Color TFT, Ethernet Port).

Procedures and Recommendations: Outlines the use of expansion modules and installation guidelines. Provides recommendations for protective covers and sheets.

Accessories: Lists programming tools, mounting clips, communication modules, and replacement parts.

Communication Cables: Provides details on communication cables for connecting PLCs and OI touchscreens, including part numbers and compatibility.

Critical Information: Emphasizes the importance of using correct accessories and following guidelines for optimal performance and longevity.

Specifications Overview: Details specifications for various models, including operating temperature, humidity, and storage conditions. Describes display types, power requirements, and protection standards.

Recommendations: Advises against using touchscreens in environments with strong UV rays and recommends regular battery replacement.

Catalog excerpts

OI Touchscreens OI Touchscreens Selection Guide Selection Guide Series High Performance Series Size 5.7” 8.4” 10.4” 12.1” PLCs Appearance Page 30 Color–TFT Color–TFT Color–TFT Color–TFT Color Depth 65,536 65,536 65,536 65,536 Rated Power Voltage Automation Software Display Type 24VDC 24VDC 24VDC 24VDC 640 x 480 800 x 600 800 x 600 800 x 600 800 600 700 550 2 RS232, RS485,RS422) 2 (RS232, RS485,RS422) 2 (RS232, RS485,RS422) 2 (RS232, RS485,RS422) Standard Standard Standard Standard 1 TypeA/1-miniB 1 TypeA/1-miniB 1 TypeA/1-miniB 1 TypeA/1-miniB Audio In/Out Audio In/Out Audio In/Out Resolution...

Open the catalog to page 2

OI Touchscreens Character Display Basic Series Size OI Touchscreens Series Selection Guide 4.6” 5.7” Appearance 35 visit www.IDEC.com/OI Display Type Monochrome Monochrome Color–TFT Color Depth 2 2 256 Rated Power Voltage 24VDC 24V DC 300 x 100 12V DC 320 x 240 – – 500 500 400 – – – 1 (RS232, RS485,RS422) 1 (RS232, RS485,RS422) Optional Brightness (cd / m2) SD Card Slot Expansion I/O module Optional RS232 RS485(422) USB Ports – – Audio In/Out Number of Screens Users can easily define as many screens as allowed by the unit’s memory Keys Keys are user definable LED LEDs can provide on/off status...

Open the catalog to page 3

OI Touchscreens PLCs OI Touchscreens High Performance High Performance Series Key Features: • 5.7”, 8.4”, 10.4”, & 12.1” sizes • 65,536 Color TFT LCD • Mounts Portrait or Landscape • Video & Audio Interface on select units • Super Bright: Up to 800 cd/m2 • Supports Expansion Discrete I/O modules • Remote Access, Monitor & Control • Serial, Ethernet, & USB ports 12.1” HG4G 8.4” HG3G Power Supplies Automation Software 10.4” HG3G 5.7” HG2G Our high-performance OI Touchscreens are so vivid thanks to cutting-edge color conversion technology, the same technology used in LCD TVs. These screens deliver...

Open the catalog to page 4

OI Touchscreens High Performance OI Touchscreens PLCs Automation Software Real-time video monitoring Remote access, monitoring & control Connect anytime, anywhere using your PC, PDA or Smart Phone The high-performance series (8.4”, 10.4” and 12.1” OI Touchscreens) feature a built-in video interface (Video In) and audio interface (Audio In/Out). That means a video camera, microphone and speaker can be connected to the OI Touchscreen and used in the following ways: Distance isn’t an issue with our high-performance line of OI Touchscreens. When you need access to your machine or equipment, but can’t...

Open the catalog to page 5

OI Touchscreens Expand your control With a wide range of connectivity options, our high-performance OI Touchscreens offer a communication solution for every application. Store programming or log data with up to 12MB of user memory, communicate with multiple controllers and devices and even remotely monitor and control. If extra storage is needed, an SD card or USB flash drive can easily be used. SD Card • Supports up to a 32GB SD card for storage • Store IDEC MicroSmart ladder and touchscreen programs, pictures, log data, alarm logs, screen hard copies, recipe data, operation logs, audio and...

Open the catalog to page 6

OI Touchscreens High Performance OI Touchscreens The connectivity you want, the flexibility you need PLCs Expansion Module Depending on your application and OI Touchscreen size, up to 4 MicroSmart expansion digital I/O modules can be connected. They easily snap on the back of any High-performance Series OI Touchscreen to offer simple I/O control with the option to perform independently of the touchscreen scan time using Cyclic Script. Automation Software 2 Serial Ports RS232 and RS485 (422) Power Supplies • Host – Communicate with a PLC/device using 1:1 or 1:N PLC communication • Sub Host – Communicate...

Open the catalog to page 7

High Performance OI Touchscreens Fast. Flexible. Environmentally-friendly! Mounting Flexibility PLCs All High-Performance series can be mounted with the screen orientation set to portrait or landscape mode depending on space requirements. This allows you the flexibility of mounting the touchscreen according to your specific application needs. Plus OI Touchscreens are designed with a slim body style, providing a big advantage in situations where panel space is at a premium. Low Energy Consumption Portrait Designed with an energy-saving design and LED backlight, these touchscreens use 50% less...

Open the catalog to page 8

OI Touchscreens Basic 5.7” Mono LCD OI Touchscreen Key Features Key Features PLCs 5.7” Color LCD OI Touchscreen OI Touchscreens Basic Series • Built-in Ethernet Port (Optional) • Super Bright LCD Screen: 400 cd/m2 • RS232, RS485 and RS422 Compatible • Power LED indicator Automation Software • 256 Color TFT • Operating Voltage: 12-24 VDC • USB mini B port • Analog Touch Panel • 15 level monochrome • Operating Voltage: 12 or 24 VDC • Analog Touch Panel • Built-in Ethernet Port (Optional) • Super Bright LCD Screen: 500 cd/m2 • RS232, RS485 and RS422 Compatible • Power LED indicator Power Supplies...

Open the catalog to page 9

OI Touchscreens OI Touchscreens Basic Automation Organizer Suite Programming Software Part Number SW1A-WIC Automation Organizer Software Suite Power Supplies Automation Software PLCs Automation Organizer (AO), the IDEC software suite combining the latest versions of our popular PLC programming software (WindLDR) and OI programming software (WindO/I-NV2) with new system configuration software (WindCFG) , is made to enable you to see the layout of your system design and basic configuration of devices. AO gives you a powerful and easy-to-use tool to design, debug, and document control systems, saving...

Open the catalog to page 10

OI Touchscreens Drivers Manufacturer Series MicroSmart/ Pentra MicroSmart (FC4A/FC5A) Applicable CPU Communication Module Built‑in Port or Comm. Module FC4A, FC5A IDEC Built-in or Web Server Unit (FC4A‑SX5ES1E) OpenNet FC3A Web Server Unit (FC4A‑SX5ES1E) MicroLogix 1000 Host I/F Driver 12.1” HG4G 8.4”&10.4” HG3G 5.7” HG2G 4.6” HG1F x x x x RS485 (422) OpenNet(FC3A), MicroSmart (FC4A/FC5A) x x x x Ethernet Web Server Unit (FC3A/FC4A/FC5A) x x x – RS232 x x x x RS485 OpenNet(FC3A), MicroSmart (FC4A/FC5A) x x x x Ethernet Web Server Unit (FC3A/FC4A/FC5A) x x x – Built‑in Port RS 232 MicroLogix /...

Open the catalog to page 11
