IDEC

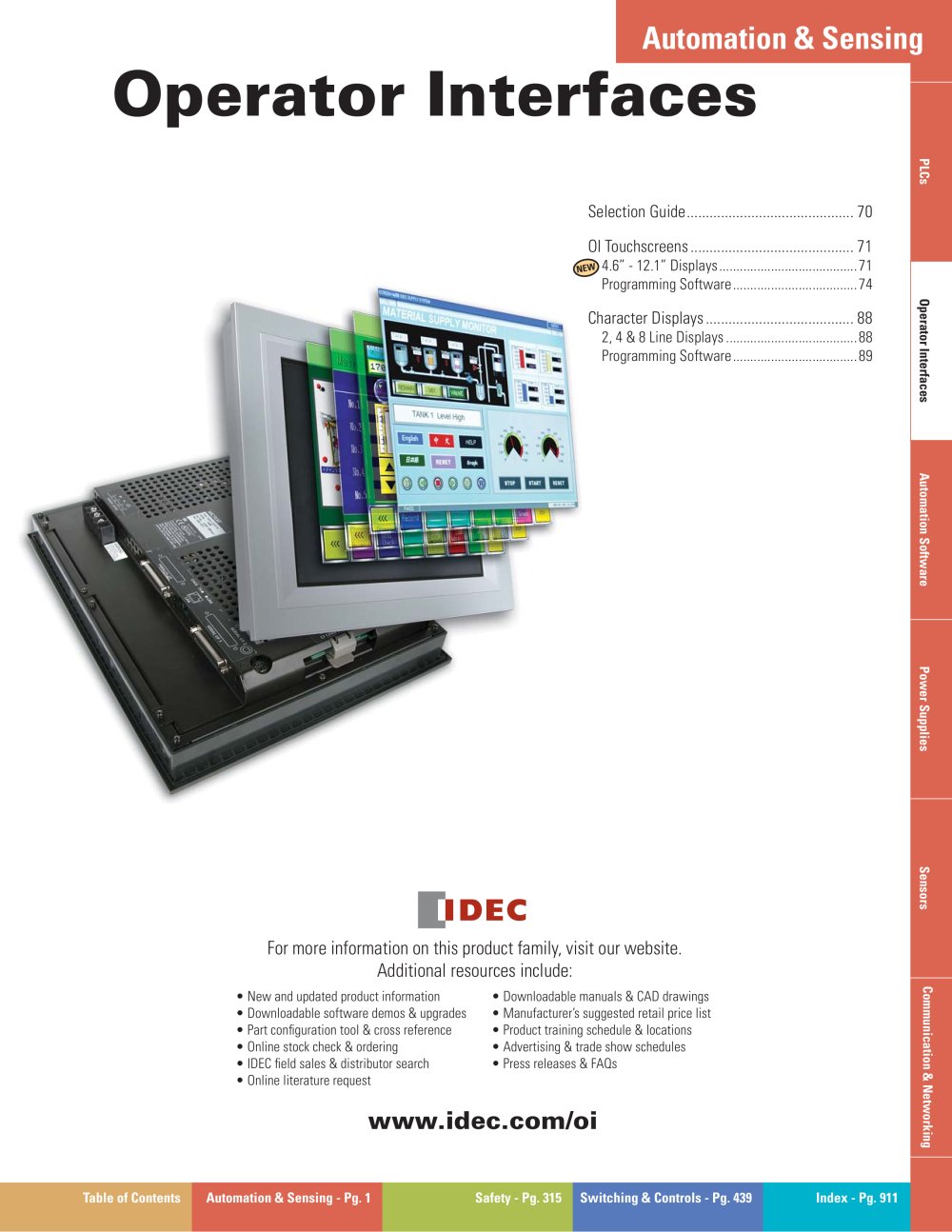

Complete O/I Catalog

Complete O/I Catalog

Product catalog summary

Automation & Sensing Overview
This section introduces IDEC's automation and sensing products, emphasizing the versatility and functionality of their touchscreens. These touchscreens can function as standalone controllers or interface with various PLCs, offering graphical data presentations and replacing traditional mechanical switches with illuminated pushbuttons.

Operator Interfaces
The operator interfaces section describes IDEC's touchscreen models, which range from 4.6” to 12.1” in size. They support both monochrome and 256-color displays with high pixel resolution, designed for space efficiency and robust enough for industrial applications.

Programming Software
IDEC's WindO/I-NV2 software is noted for its intuitive drag-and-drop interface, extensive image library, and multilingual support. It facilitates easy programming, recipe creation, alarm logging, and trend graphing, with advanced scripting capabilities.

Communication and Networking
The document details the communication features of IDEC touchscreens, including Ethernet support for remote operations. OI Link Communication allows a single PLC to connect with multiple touchscreens, and 1:N PLC Communication mode enables one touchscreen to manage several PLCs, supporting a wide range of PLC manufacturers.

Additional Features
Additional features include barcode reader support, printer functions, debugging tools, and security functions to restrict access and maintain project integrity.

Specifications

Communication: Supports PLC link, DM link, OI link communications, with Ethernet available in HG4F models.
User Memory: Ranges from 1 MB to 8 MB, with HG4F models having the highest capacity.
Interface Options: Includes RS232C/RS485, Ethernet (HG4F), and CF card slots.
Display Features: Offers both monochrome and color displays with varying resolutions and brightness levels.

Available Functions

System program and font downloads, project transfer via CF card, and printer output are supported across all models.
Advanced features like web server function and Ethernet downloads are exclusive to HG4F models.
Common functionalities include simulation, device monitoring, alarm logging, and password settings.

Parts and Accessories

Includes various buttons, displays, and input options like bit/word buttons, numerical input, and alarm displays.
Accessories such as programming tools, converters, protective sheets, and mounting clips are available for different models.

Cable Compatibility

Details communication types and required modules for connecting different PLCs with IDEC operator interfaces.
Provides part numbers for cables compatible with various manufacturers like Allen Bradley, Siemens, and Mitsubishi.

HG1X Series Overview
This section provides technical specifications and connectivity options for the HG1X Series operator interfaces, detailing compatibility with various PLC brands and specifications for different models.

Programming Software and Compatibility
The HG1X Series supports communication drivers for major PLC brands and offers specific programming cables for PC connections, with part number HG9Z-PC125A.

Cable Specifications
Lists various cables for connecting HG1X models to PLCs, specifying manufacturer, model, communication type, and part numbers.

General Specifications
The HG1X Series is divided into two groups, adhering to safety and EMC standards, with electrical specifications including rated voltage and power consumption.

Environmental and Structural Specifications
Operating temperature range is 0 to 55˚C, with humidity ranges specified for different models. The devices are IP65 rated and designed for panel mount installation.

Key Dimensions
Provides detailed dimensions and panel cutout sizes for each model, ensuring proper installation and system compatibility.

Catalog excerpts

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking Smart design to fi t your needs > From the large 12.1 TFT LCD Screen, to the compact 4.6Ԕ STN LCD, our screens support either mono- chrome or 256 colors with high pixel resolution to give you sharp images and excellent visibility. In keeping with IDECs attention to detail, our slim- body design adapts to applications where space is limited. With up to 8MB of memory and a 200MHz 32-bit RISC CPU, IDEC Touchscreens put control, power and speed at your fi ngertips. Versatile, High functionality > IDEC Touchscreens...

Open the catalog to page 3

The OI Touchscreen Family is ideally matched to todays sophisticated technology. Using a wide range of graphical options, you can represent specifi c equipment, make production information immediately apparent and instantly display safety problems. Consolidating controls on an IDEC touchscreen eliminates costly investments in wir- ing and installation of multiple pushbutton indicators on a traditional control panel. Just think how you can benefi t with touchscreens. > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking An expansion digital I/O module gives...

Open the catalog to page 4

To meet your application needs, IDEC offers 12.1Ҕ and 10.4 TFT LCD screens, and 4.6Ԕ and 5.7 STN LCD screens that come with 256 colors or in monochrome to provide you with either multicolored or gray scale graphics. All screens have high pixel resolution and super bright LCD screens with 400 cd/m > IDEC Touchscreen communications capabilities expand well beyond IDEC brand PLCs. Other major PLC manufacturers supported are: Allen Bradley, Mitsubishi, Omron, Automation Direct (Koyo), Keyence, GE, Modicon, Siemens, Sharp, Hitachi, Schneider, Yaskawa, Fanuc, Matsushita Electric Works (Panasonic) and...

Open the catalog to page 5

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking The WindO/I-NV2 software for all OI Touchscreens is the programming tool that lets you create colorful graphical interfaces to visualize operating conditions. The software is very intuitive with drag and drop functionality. The Help menus are a great source of information and a built-in library of bitmaps provides over 5000 images to help expand your creativity. The software also includes a debug function where you can go online with the touchscreen for monitoring and changing data. > With WindO/I-NV2 software,...

Open the catalog to page 6

Compatible with Standard Windows > TM Fonts Multilingual Capabilities for Worldwide Applications > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking The OI Touchscreen family can support other languages. With the text group function you can create a text database in different languages. Once the touchscreen is in a different country (e.g. China or Mexico) the customer can easily switch all text messages from English to Chinese or Spanish by a touch of a button. Windows 2000, Vista and XP make it possible to input Japanese, Simpli-fi ed Chinese, Traditional...

Open the catalog to page 7

Part NumbersBezel ColorDescription12.1 HG4F-JT22TFWLight GrayColor TFT LCD TouchscreenHG4F-JT22TFBBlack*Color TFT LCD Touchscreen HG4F-JT22TFW-DH485-500Light GrayColor TFT LCD Touchscreen with DF1 / DH485 converter/cable package for SLC 500 (w/RJ45 connector) > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking HG3F-FT22TFWLight GrayColor TFT LCD TouchscreenHG3F-FT22TFBBlack*Color TFT LCD Touchscreen HG3F-FT22TFW-DH485-500Light GrayColor TFT LCD Touchscreen with DF1/DH485 converter/cable package for SLC 500 (w/RJ45 connector) 5.7Ԕ withCC Click 10.4 HG2F-SS22VCFLight...

Open the catalog to page 9

ModelHG1FHG2FHG3FHG4FVoltage 24V DC > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking Voltage Range 20.4 to 28.8V DC19.2 to 28.8V DC Power Consumption 10W maximum25W maximum Inrush Current 20A maximum15A maximum (cold start) Allowable Momentary Power Interruption 10 ms minimum Dielectric Strength 1,000V AC, 10 mA, 1 minute between power and FG terminals1,500V AC, 10 mA, 1 minute between power and FG terminals Insulation Resistance 50 M minimum between power and FG terminals (500V DC megger)10 M minimum between power and FG terminals (500V DC megger) Backup...

Open the catalog to page 16

ModelHG1FHG2FHG3FHG4FColorMonochromeColorColorLCD Monochrome STNColor STNMonochrome STNColor TFT > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking Effective Display Area (mm) 115W x 39W118.2W x 89.4H211.2W x 158.4H246W x 184.5H Display Resolution 300W x 100H320W x 240H pixels640W x 480H pixels800W x 600H pixels LCD Life 50,000 hours minimum100,000 hours minimum60,000 hours minimum Contrast Adjustment Possible in steps using the front touch screen Backlight Cold-cathode tubeCold-cathode tube (2 tubes) Backlight Life 50,000 hours nominal (Note)40,000 hours...

Open the catalog to page 17

CF Card Interface Specifi cationsParallel Interface Specifi cations (HG3F/4F)Ethernet Specifi cations (HG3F/4F)Interface Specifi cations Compact Flash Type I standard compliant*IEEE 802.3 standard compliant, 10Base-T Electrical Characteristics חCentronics interface compliant > PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking Connector 50-pin compact fl ash card connectorD-sub 25-pin female connectorח > *Memory size supports up to 512MB. RS232CElectrical Characteristics Maintenance CommunicationElectrical Characteristics EIA RS232C compliant EIA RS232C...

Open the catalog to page 18

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking >

Open the catalog to page 19

The HG1X series are text message displays with built-in user defi nable function keys which make them an excellent tool for small applications. The bright, back lit LCD screens can display data, alarms, errors, and data entry. The user can defi ne as many screens as allowed by the memory and create multiple alarms with basic acknowledgements. In addition, they can communicate with IDEC PLCs as well as many other major brand PLCs.Models available:2-line, 16 character display with 24KB memory4-line, 20 character display with 24KB memory8-line, 20 character display with 64KB memoryAll keys are programmable...
