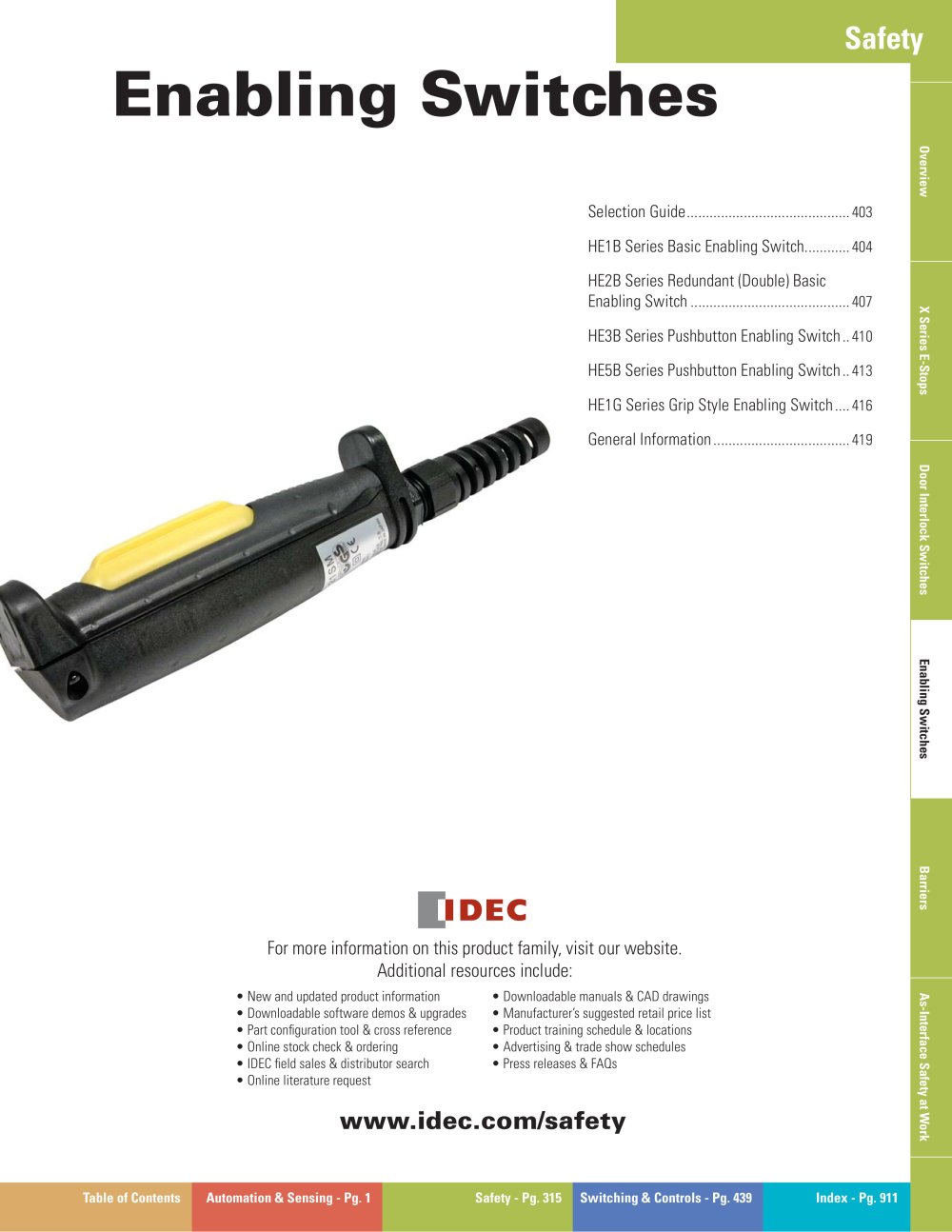

Enabling Switches Overview Enabling “Dead Man” Switches An enabling switch is a 3-position (OFF-ON-OFF) switch to allow a machine operation only when the switch is lightly pressed and held in the middle position (position 2). Because it disables machine operation when released (position 1) or further depressed (position 3) by a panicked operator, the safety of operators is ensured. Because operators use pendants in hazardous environments performing teaching, system changeover, and maintenance of robots, they must have protection against unpredictable motion of robots, and therefore teach pendants...

Enabling Switches Selection Guide Selection Guide Enabling Switches HE1B HE2B HE3B HE5B HE1G 404 407 410 413 416 Basic Switch Redundant Basic Switch 16mm Panel Mount 16mm Round Enabling Switch Grip Switch 1NO DPDT/DPDT, 2NC/DPDT, 4NC DPDT DPDT DPDT, 1NC/DPDT, 2NC Overview Series Model Appearance Description Maximum Contacts X Series E-Stops Page Application Example Teaching Pendant Back of Teaching Pendant Door Interlock Switches For information on the Teaching Pendant visit www.idec.com/oi/pendant Enabling Switches Enabling Switch HE1B Enabling Switch Movement Barriers 3 Position Enabling Switch...

Enabling Switches HE1B Series HE1B Series Basic Enabling Switch HE1B Key features include: X Series E-Stops Overview • 3 position funtionality (OFF – ON –OFF) as required for manual robotic control • Ideally suited for use as enabling (aka “deadman”) switch on teach pendants • Provides a high level of safety based on human behavioral studies that determine personnel may squeeze OR let go when presented with a panic situation • Positive action contacts “On” (pos. 2) to “Off” (pos. 3) ensure no contact welding (per EN60947-5-1 / IEC60947-5-1) • Contacts will not close when released from “Off” (pos....

Enabling Switches HE1B Series Part Numbers Item Part Number Side HE1B-M1 Front HE1B-M1N Overview Installation X Series E-Stops Current Ratings Rated Insulation Voltage (Ui) AC / DC250V Thermal Current (lth) 5A Rated Operating Voltage (Ue) AC 50/60Hz Rated Operating Current (le) 125V 250V – 3A 1.5A Inductive Load (AC-15) – 1.5A 0.75A Resistive Load (DC-12) 2A 0.4A 0.2A 1A 0.22A 0.1A Inductive Load (DC-13) Contact Structure Door Interlock Switches DC 30V Resistive Load (AC-12) SPST-NO three position (OFF-ON-OFF) Minimum applicable load: AC/DC3V • 5mA (For reference only). Operating Characteristics...

Enabling Switches HE1B Series Dimensions (mm) 30 13.6 12 7.6 4 4 13 5 7 Overview When pressed to position 3: 2 2.8 4 8 Solder Terminal Installation Dimensions (mm) HE1B-M1 (Side Mounting) 1. M3 Screw (not provided) 2. Locking nut (2 pcs) included 24±0.5 15 min. 9 min. 3 M 24±0.2 Panel Thickness 1mm - 2mm Enabling Switches HE1B-M1N (Front Mounting) Screw Length = (panel thickness + 5 to 6mm) 1. M3 Screw (not provided) 2. Thread built in Door Interlock Switches X Series E-Stops 24 Insert the nuts supplied with the switch. AS-Interface Safety at Work Barrires When using a panel thicker than 2mm,...

Enabling Switches HE2B Series HE2B Series Redundant (Double) Basic Enabling Switch HE2B Key features include: Overview • 3 position funtionality (OFF – ON –OFF) as required for manual robotic control • Ideally suited for use as enabling (aka “deadman”) switch on teach pendants • Provides a high level of safety based on human behavioral studies that determine personnel may squeeze OR let go when presented with a panic situation • Snap acting contacts from Off‡On (1‡ 2) • Positive action contacts from On‡Off (2‡ 3) ensure no contact welding (per EN60947-5-1 / IEC60947-5-1) • Contacts will not re-close...

Enabling Switches HE2B Series Part Numbers Number of Contacts Model Part Number Push Monitor Switch Return Monitor Switch 2 0 0 HE2B-M200 2 1 1 HE2B-M211 2 2 2 HE2B-M222 2 0 0 HE2B-M200PY 2 1 1 HE2B-M211PY 2 2 2 HE2B-M222PY 2 0 0 HE2B-M200PB 2 1 1 HE2B-M211PB 2 Overview 3 Position Switch 2 2 HE2B-M222PB Without Rubber Cover Yellow With Rubber Cover X Series E-Stops Black Ratings Door Interlock Switches Contact Ratings Rated Insulation Volute (Ui) 250V Thermal Current (lth) 3A Rated Operating Voltage (Ue) 30V AC 3 Position Switch DC Enabling Switches Rated Operating Current (le) Push/return Monitor...

Enabling Switches HE2B Series Operating Characteristics Operating Characteristics (without rubber cover/center of button being pushed) Position 2 Position 3 Overview Position 1 Approx. 30N Operating Force (reference value) (without rubber boot, when pressing the center of the operator) Approx. 4N 1.4±0.3 Travel (mm) 0 : ON (closed) : OFF (open) 6.0±0.5 X Series E-Stops When pressing the operator 2.4±0.3 3.0±0.3 3.6±0.5 4.2±0.5 Between NO1 - C1 Between NO2 - C2 Between 11 - 12 Between 21 - 22 Between 31 - 32 Between 41 - 42 Door Interlock Switches When releasing the operator Between NO1 - C1 Between...

Enabling Switches HE3B Series HE3B Series Pushbutton Enabling Switch HE3B Key features include: X Series E-Stops Overview • 3 position funtionality (OFF – ON – OFF) as required for manual robotic control • Provides a high level of safety based on human behavioral studies that determine personnel may squeeze OR let go when presented with a panic situation • Contacts will not re-close when released from Off‡On (3‡1) (per IEC60204-1; 9.2.5.8) • Multiple contacts for enhanced reliability • Snap acting contacts from position 1 to 2 • Available with or without rubber cover Specications IEC60947-5-1,...

Enabling Switches HE3B Series Part Numbers Model Contact Arrangement Part Numbers Overview Without Rubber Cover HE3B-M2 DPDT Yellow HE3B-M2PY Black HE3B-M2PB With Rubber Cover X Series E-Stops Contact Ratings Rated Insulation Voltage (Ui) 125V Thermal Current (lth) 3A Rated Operating Voltage (Ue) Rated Operating Current (le) DC 125V – 1A Inductive Load (AC-15) – 0.7A Resistive Load (DC-12) 1A 0.2A Inductive Load (DC-13) 0.7A 0.1A Contact Structure (3 Position Switch) Door Interlock Switches AC 30V Resistive Load (AC-12) 2 contacts (DPDT) .2 +0 0 NC2 NO1 NO2 C1 6.2 Mounting Panel Thickness 0.5...
