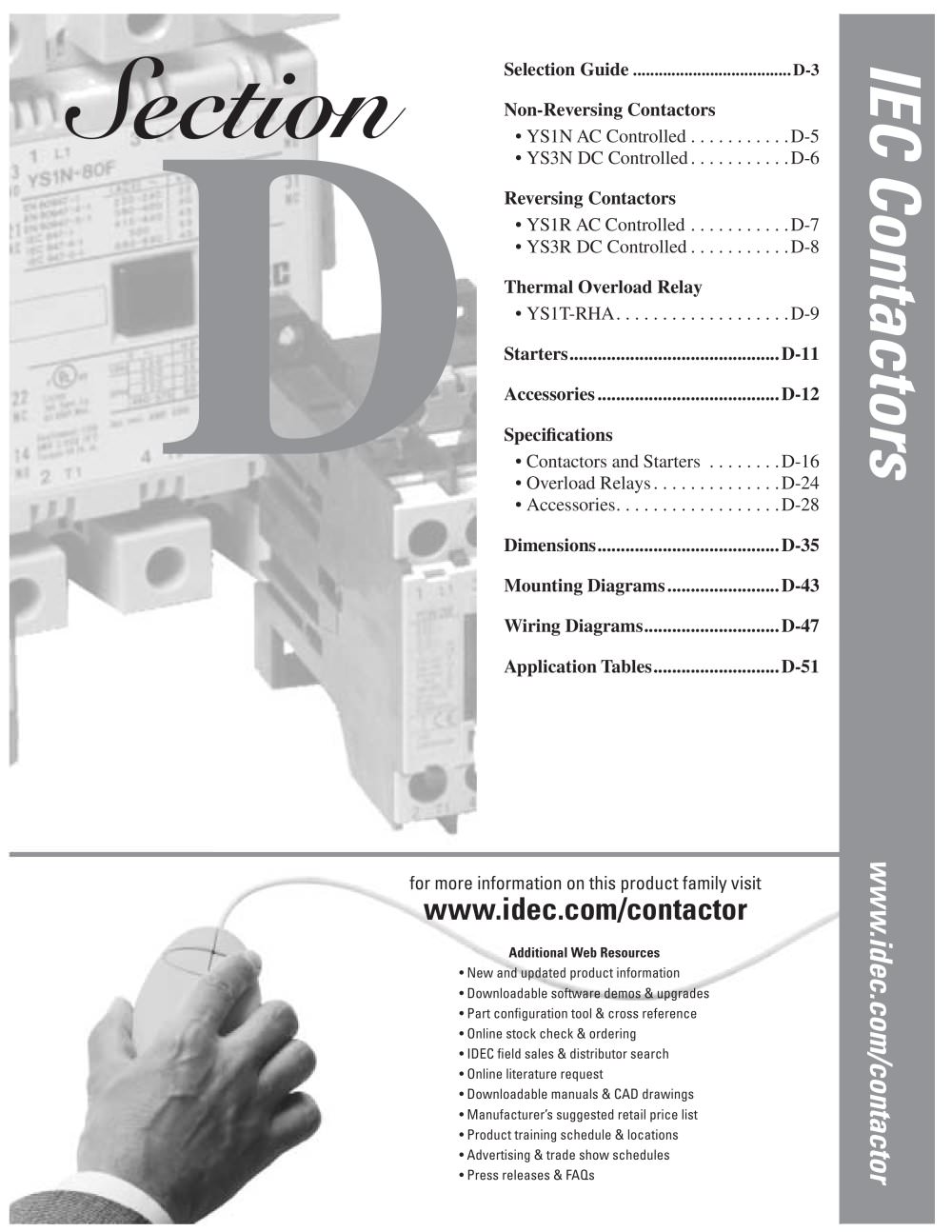

Complete Contactors Catalog
60Pages

IEC Contactors Selection Guide IDEC YS Series Contactors / Starters IEC Contactors D YS Series: Superior performance and low maintenance Key features include: • Simple, compact, rugged electromechanical devices • Meets IEC, UL, c-UL and other international standards • All Contactors, Thermal Overload Relays, and Auxiliary Contact Blocks bear the CE mark • 35mm or 75mm DIN Rail or direct panel mounting • Bifurcated double bridge auxiliary contacts, the moving contact bridge has an “H” form; suitable for interface with electronic circuit • Advanced design and materials, special silver-alloy...

IEC Contactors Selection Guide Selection Guide RELAY INTERFACE MODULE (With Surge Suppressor Module) YS9Z-TCU500UH SURGE SUPPRESSOR MODULES YS9Z-TU25 YS9Z-TU65 YS9Z-TU125 YS9Z-TU180 YS9Z-TU300 The interface module incorporates contacts which are actuated upon energization of the module from low power 24VDC sources such as outputs from sensors and programmable controllers. for YS1N-9F to -25F for YS1N-32F to -65F for YS1N-80F to -125F for YS1N-150F to -180F for YS1N-220F to -300F SECOND CONTACTOR For reversing applications YS1R, AC Controlled YS3R, DC Controlled (reversing type) D IEC...

IEC Contactors YS Series YS Series Contactors Key features of the YS Series include: • Compact size • AC and DC coil, reversing and non-reversing • Weld-resistant silver alloy contacts • No cadium used in contacts • Highly reliable auxiliary contacts use bifurcated double bridge contact form • Direct panel mount with screws or 35mm DIN rail (9F to 65F) • Conforms to IEC standards: EN60947-1, EN60947-4-1, EN-60947-5-1 • Approval standards: UL508 (UL File No. E67770, E184169) IEC Contactors D CE Certied Ordering Information IEC CONTACTORS Specify the maximum AC3 current code for the contactor...

IEC Contactors YS Series Thermal Overload Relays YS1T-RHA thermal overload relays are designed to meet the heating characteristics of induction motors with insulation class type E. Various functions can be selected by using the reset button and adjustment button on top of the thermal overload relay. Key features of the YS1T Series include: • Single-phase protection • Bi-metallic • Compact and sturdy • Ambient temperature compensation mechanism • Manual/automatic reset operation • 3 element type with phase failure protection • Conforms to IEC Standards EN60947-1, EN60947-4-1, EN60947-5-1 •...

IEC Contactors YS Series YS Series Starters Ordering Instructions for an Assembled Starter STARTERS (Contactors with Thermal Overload Relay) • Select the appropriate contactor (AC or DC, reversing or non-reversing) from pages D-5 through D-8. • Select the correct size overload from page D-9 throught D-10. • The complete assembled part number is the same as the contactor with the following changes: (See examples below) YS2R - FD 11 **** T### D Completed Part Number of Reversing Starter YS1N YS1R YS3N YS3R contactor contactor contactor contactor ----> ----> ----> ----> YS2N YS2R YS4N YS4R IEC...

IEC Contactors Accessories Accessories Accessory Auxiliary Contact Blocks Description Number of Poles Mounting Style Part Number IEC Contactors 1 YS1A-TAH211F 0 YS1A-TAH220F 4 YS1A-TAH404F 1 3 YS1A-TAH413F 2 Side YS1A-TAH202F 2 YS1A-TAH422F 1 YS1A-TAH431F 4 2 Poles YS1A-TAS211F 2 3 Replacement Auxiliary Contact Block 1 0 4 Poles 1 2 Top NC 1 2 Poles NO 0 Side D 0 YS1A-TAH440F 1 1 YS1A-TAS211FL For use with YS-9F through YS-12F YS9Z-KIF411346-A YS9Z-KIF411347-A For use with YS-80F through YS-125F YS9Z-KIF411348-A For use with YS-150F YS9Z-KIF411588-A For use with YS-180F Overload DIN Rail...

IEC Contactors Accessories Accessories, continued Accessory Surge Suppressor Description Type Part Number 50-127V AC YS9Z-TU*C120 110-240V AC RC Circuit YS9Z-TU*C240 50-127V AC YS9Z-TU*V120 110-240V AC YS9Z-TU*V240 380-440V AC Varistor Isolates the coil of contactor from PLC output by providing an easy to mount module that takes 24V DC input and switches up to 380V AC for contactor coils. External source required for contactor coil. 100V AC to 240V AC 50/60 Hz YS9Z-TCU500UH* 12 = YS-9F to YS-12F 25 = YS-20F- to YS-25F 38 = YS-32F to YS-38F 65 = YS-40F to YS-65F 125 = YS-80F to YS-125F 180 =...

IEC Contactors Accessories Accessories, continued Accessory Description Part Number each part number is for ONE (1) main contact Stationary Main Contacts For use with YS-20F For use with YS-25F YS9Z-KIF409057-A For use with YS-32F YS9Z-KIF410179-A For use with YS-38F YS9Z-KIF410180-A For use with YS-40F YS9Z-KIF409083-A For use with YS-50F YS9Z-KIF409083-B For use with YS-65F D YS9Z-KIF409056-A YS9Z-KIF409083-C IEC Contactors For use with YS-80F YS9Z-KIF410697-B For use with YS-125F YS9Z-KIF410697-C For use with YS-150F YS9Z-KIF410853-A For use with YS-180F YS9Z-KIF410854-A For use with...

IEC Contactors Accessories Accessories, continued Part Number Description For Use With 35mm Aluminum DIN Rail 7.5 mm deep 1 meter long YS1N-9F through YS1N-38F Contactors 35mm Aluminum DIN Rail 10.5 mm deep. 1 meter long YS1N-9F through YS1N-38F Contactors Plastic replacement markers sold in 100 piece packs YS-9F through YS-65F series contactors, overloads relays and top mount auxiliary contact blocks. DIN Rail End Stop used to prevent contactors from sliding on DIN rails YS1N-32F/YS1N-38F & YS1R reversing contactors DIN Rail End Stop used to prevent contactors from sliding on DIN rails...

IEC Contactors Specications YS1N-300F YS1N-180F YS1N-220F YS1N-80F YS1N-100F YS1N-125F YS1N-150F YS1N-65F YS1N-50F YS1N-38F,-40F 10 YS1N-20F YS1N-9F Millions of Operating Cycles YS1N-12F Fig. 3 Utilization Category AC1 AC1 Ue < 440V YS 5 4 3 1N -2 5F 2 1 D 0.2 0.1 1 2 3 4 5 10 20 30 40 50 100 150 200 240 300 260 IEC Contactors YS1N-32F 0.5 0.4 0.3 400 500 350 Breaking current Ic (A) Switching a resistive circuit (cos ø ≥ 0.95) The breaking current in AC1, Ic, is equal to Ie. (le = rated operational current of the load) Electrical Life in Mixed AC3/AC4 Duty Applications By calculation: In a...
