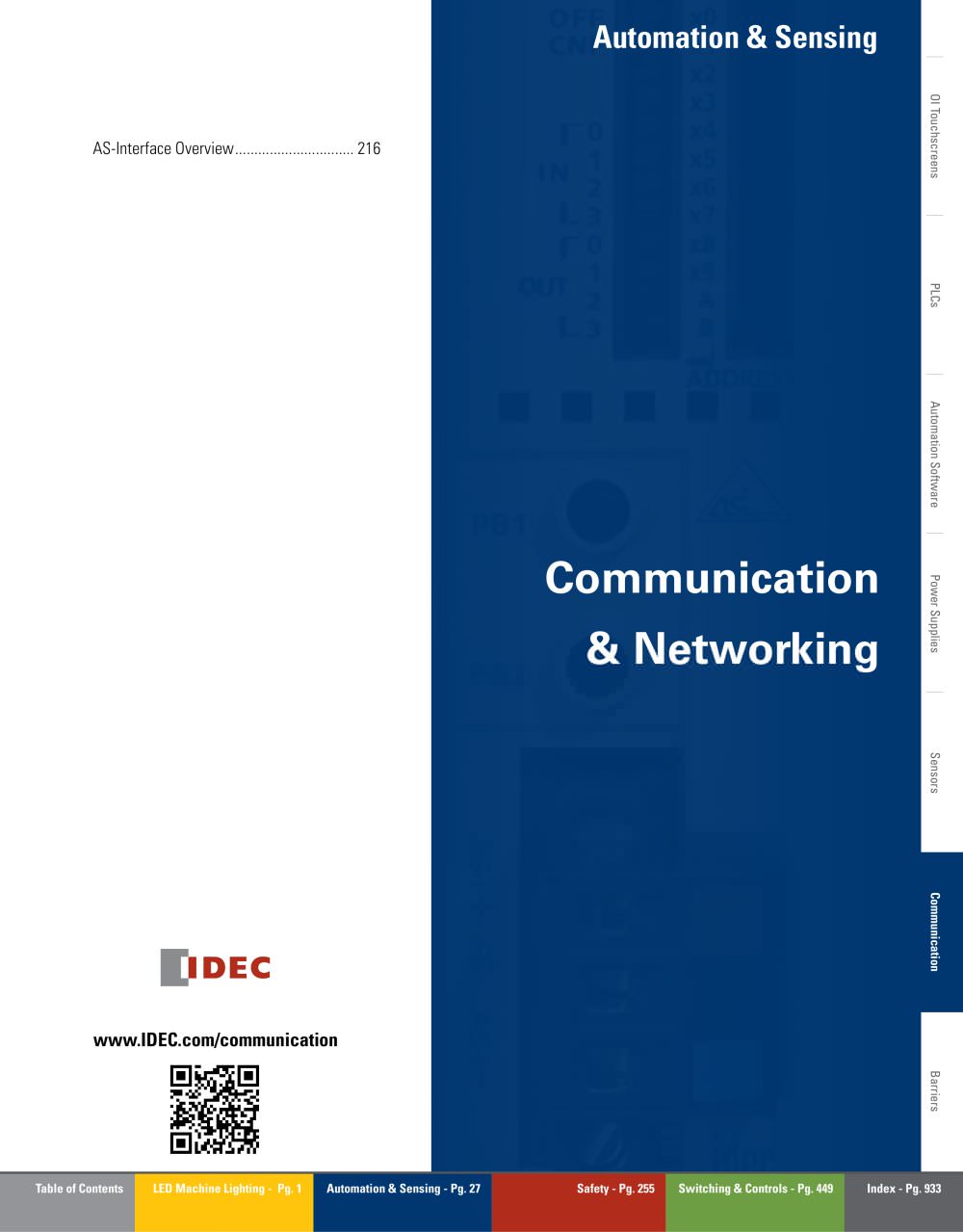

Complete Communications & Networking Catalog
1 / 6Pages

Communication & Networking AS-Interface OI Touchscreens AS-Interface Overview PLCs (Actuator Sensor Interface) 73W See PLC section for more information. 145W Visit www.IDEC.com/powersupply SX5A AS-Interface Safety Contact IDEC for more information. AS-Interface Flat Cable Connector Power Supplies Automation Software MicroSmart Pentra SX5A AS-Interface I/O modules Sensors SX5A AS-Interface Safety Communication Terminal (Safety Slave) IDEC SmartRelay 4 inputs 2 inputs/2 outputs 4 inputs/3 outputs (See PLC section for more information) 4 inputs 4 inputs/3 outputs Communication Contact IDEC for...

Communication & Networking AS-Interface OI Touchscreens Link to the world and reduce wiring at the same time! SwitchNet Control Units directly connect to an AS-Interface network Panels can be built with substantially less wiring at a lower total cost. • Signals and power are carried through two wires. • A maximum of 62 switches and pilot lights can be connected. The wire length can be extended to 300m by using two repeaters. • Spring clamp terminals save wiring time. PLCs Each control switch or pilot light contains a communication chip (AS-Interface Ver. 2.1). XA & XW E-Stops Automation...

Communication & Networking AS-Interface OI Touchscreens Easy & Flexible Quick & Secure Connection Easy Wiring SX5A AS-Interface Communication Terminal Spring clamp terminal Contact Pins Base Module Power Supplies Automation Software PLCs AS-Interface Flat Cable (Not supplied by IDEC) Contact pins pierce through the cable’s insulation and make secure contact with the copper conductor. After disconnecting the AS-Interface communication terminal, the elasticity of the sheath closes the pierced holes and maintains insulation. Spring clamp reduces wiring time SwitchNet control units feature...

AS-Interface Space & Wire Savings MicroSmart AS-Interface Master Module AS-Interface Communication Terminal (IP20) SX5A AS-Interface Power Supply PS2R Inside Panel M12 Branch Connector (IP65) SX9Z-CT1 Protection Cap (IP67) SX9Z-CAP1 Power Supply for Auxiliary Power PS5R AS-Interface Flat Cable Branch Connector (IP65) SX9Z-CF1 SwitchNet Control Units HW·L6 Auxiliary Power Line AS-Interface Sensor AS-Interface Flat Cable Branch Connector (IP65) SX9Z-CF1 General-purpose Sensor Automation Software T-branch Connector (IP20) LA9Z-SNTB AS-Interface Flat Cable End Tube (IP65) SX9Z-CPA1 Outside...

Communication & Networking AS-Interface OI Touchscreens Cost Savings Inside-Panel Wiring Example: Cost Savings Approximately 25% Wiring Comparison Conventional Wiring AS-Interface & SwitchNet Wiring I/O Modules PLC I/O Modules PLC Power Supply Power Supply PLC I/O Modules PLCs PLC AS-Interface Master Module AS-Interface Master Module PLC I/O Modules 10m PLC Power Terminal Supply Blocks Power Terminal Supply Blocks 10m PLC 10m 10m Terminal Blocks Terminal Blocks Conventional pushbuttons, pilot lights, illuminated pushbuttons Conventional pushbuttons, pilot lights, illuminated pushbuttons...
