IDEC USA

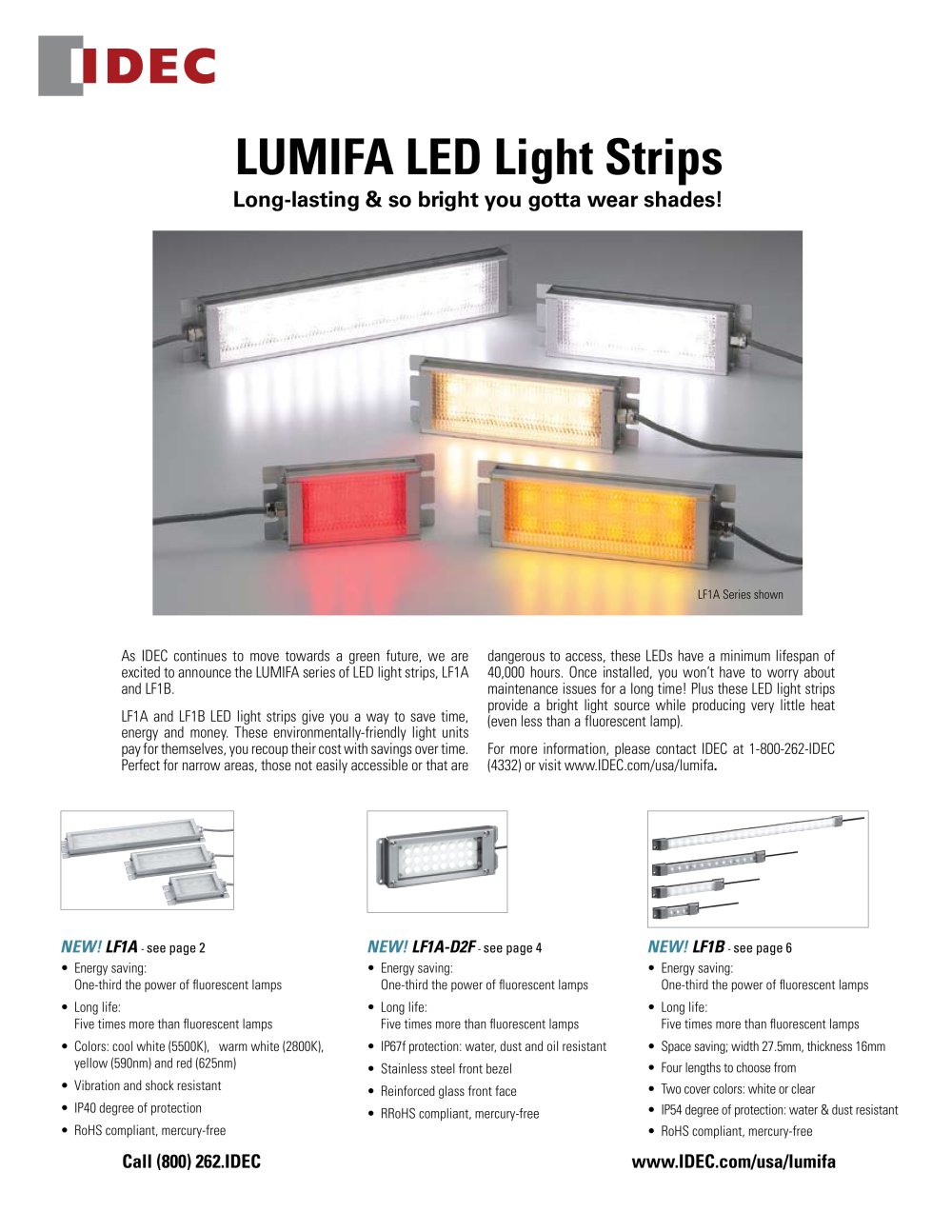

Lumifa LED Light Catalog

Lumifa LED Light Catalog

Product catalog summary

Introduction
The document introduces the LUMIFA series of LED light strips by IDEC, focusing on the LF1A and LF1B models. These LED strips are designed for energy efficiency, longevity, and environmental friendliness, offering significant cost savings over time.

LF1A Series

Energy Efficiency: Uses one-third the power of fluorescent lamps.
Longevity: Lasts five times longer than fluorescent lamps, with a lifespan of 40,000 hours.
Color Options: Available in cool white, warm white, yellow, and red.
Protection: IP40 rated, vibration and shock resistant, RoHS compliant, and mercury-free.

LF1A-D2F Series

Enhanced Protection: IP67f rated, resistant to water, dust, and oil.
Construction: Features a stainless steel front bezel and reinforced glass front face.

LF1B Series

Compact Design: Space-saving with a width of 27.5mm and thickness of 16mm.
Versatility: Available in four lengths and two cover colors.
Protection: IP54 rated, water and dust resistant.

Mounting Accessories
Details mounting accessories that allow the LED strips to be mounted at any angle from 0 to 90 degrees, suitable for various industrial applications.

Specifications

Voltage: Rated at 24V DC (non-polarized).
Operating Conditions: Temperature range from -30 to +55ºC, humidity from 45 to 85% RH.
Construction: Plastic housing with options for clear or white covers.

Applications
The LED strips are suitable for machine tools, control panels, inspection equipment, food processing machines, and semiconductor manufacturing equipment.

Conclusion
The LUMIFA LED light strips by IDEC offer a reliable, energy-efficient lighting solution for industrial environments, with various models providing different levels of protection and application versatility.

Overview
The document provides detailed specifications and features of the LUMIFA LED Light Strips, specifically the LF1A and LF1B series, designed for energy efficiency, durability, and versatility in various industrial applications.

Specifications

Rated Voltage: 24V DC (non-polarized)
Input Current: Varies by model and LED configuration
Operating Temperature: -20 to +50ºC for LF1A, -30 to +55ºC for LF1B
Storage Temperature: -25 to +70ºC for LF1A, -35 to +70ºC for LF1B
Humidity: 45 to 85% RH (no condensation)
Life: 40,000 hours (half luminance)
Degree of Protection: IP67f for LF1A, IP54 for LF1B

Features

Energy-saving, consuming approximately one-third the power of fluorescent lamps.
Long lifespan, reducing maintenance needs.
Available in multiple colors: cool white, warm white, yellow, and red.
Vibration and shock resistant, suitable for industrial environments.
Compliant with RoHS directive, mercury-free.
Low heat emission and noiseless operation.

Applications
Suitable for machine tools, food processing lines, automotive equipment, semiconductor manufacturing, and more.

Design and Construction

Stainless steel housing for durability and corrosion resistance.
Reinforced glass for safety against shavings or filings.
Available in various lengths and configurations to fit different spaces.

Mounting Accessories
Adjustable mounting accessories allow for installation at any angle from 0 to 90 degrees, enhancing versatility in different environments.

Conclusion
The LUMIFA LED Light Strips offer a reliable, energy-efficient lighting solution for industrial applications, with robust construction and a variety of configurations to meet diverse needs.
