Complete Relay & Socket Catalog

Complete Relay & Socket Catalog

Product catalog summary

Overview: This technical guide by IDEC provides comprehensive information on various relay and socket types, including detailed specifications, features, and part numbers for relay series such as RV8H, RJ, RQ, RH, RR, RU, RY/RM, RF1V, and solid-state relays. It also covers accessories and replacement parts.

1. Specifications: Each relay series is detailed with technical specifications such as contact configuration, terminal type, contact rating, contact material, and protection degree. For instance, the RV8H Series features a 6mm width, gold-plated contacts, and a wide input voltage range from 6 to 240V.

2. Procedures: The document includes part number selection guides and ordering information for each relay series, with tables for coil voltage codes and accessories like DIN rails, marking plates, and hold-down springs.

3. Standards and Compliance: The relays comply with international standards such as UL, CSA, and EN, and are RoHS compliant, indicating they are free from hazardous substances like lead and mercury.

4. Recommendations: Recommendations include using specific accessories and replacement parts for optimal performance and compatibility, along with guidelines for operating conditions such as temperature and humidity ranges.

5. Key Features: Each relay series has unique features. For example, the RJ Series is noted for its compact size, high switching capacity, and long electrical and mechanical life, while the RV8H Series is highlighted for its space-saving design and high dielectric strength.

6. Tables and Diagrams: The document includes tables summarizing contact ratings, coil ratings, and dimensions, along with diagrams illustrating internal connections and relay dimensions to aid installation and understanding of the product layout.

Specifications: Relays have a mechanical life of 10 million operations and an electrical life of 100,000 operations at full rated load. They operate within a temperature range of -40 to 85º C and a humidity range of 45 to 85% RH. Dimensions are 29 x 12.7 x 15 mm, and weight is 15g.

Coil Ratings: DC voltages include 12V, 24V, 110V, and AC voltages include 24V, 115V, 230V, with power consumption of 0.40W (DC) and 0.71W to 0.88W (AC).

Socket Specifications: DIN Rail Sockets are rated at 300V, 12A or 8A, and PCB Mount Socket at 300V, 12A.

Electrical Life Curves: Maximum switching capacity varies with load current and voltage.

RH Series Compact Power Relays: Contact types range from SPDT to 4PDT with a contact capacity of 10A, available with indicators, check buttons, and diodes.

Contact Ratings: Maximum contact capacity is 10A for SPDT, DPDT, 3PDT, 4PDT, with TÜV, UL, and CSA ratings provided for various voltages.

Accessories: Accessories include Aluminum DIN Rail, DIN Rail End Stop, and Replacement Hold-Down Spring Anchor.

Additional Specifications: Contact material is silver cadmium oxide, with insulation resistance of 100MΩ minimum and dielectric strength of 2,000V AC. Operating frequency is electrical - 1,800 ops/hour, mechanical - 18,000 ops/hour, with detailed vibration and shock resistance.

Overview: The document provides detailed technical specifications and dimensions for various models of relays and sockets, focusing on the RH and RR series from IDEC, including information on LED indicators, surge absorbers, and mounting options.

Specifications: Relays are available in SPDT to 3PDT configurations with 10A contacts, designed for both pin and blade terminal styles. Key features include options for indicators, check buttons, and side flanges. Contact material is silver, with a contact resistance of 30 mΩ maximum and a minimum applicable load of 1V DC, 10 mA.

Electrical Characteristics: Relays have an operating time and release time of 25 ms maximum, with power consumption of approximately 3 VA for AC and 1.5W for DC. Insulation resistance is 100 MΩ minimum, and dielectric strength varies between pin and blade terminals. Operating frequency is up to 1800 operations per hour electrically and 18,000 mechanically.

Mechanical and Environmental Specifications: Relays have a mechanical life of 10 million operations and an electrical life of 200,000 operations at 220V AC, 5A. They operate within a temperature range of -25 to +40°C and a humidity range of 5 to 85% RH.

Mounting and Dimensions: Detailed dimensions for various relay models and their corresponding sockets are provided, including standard DIN rail mount, finger-safe DIN rail mount, through panel mount, and PCB mount sockets. M3 and M3.5 terminal screws are specified with torque specifications.

Contact Ratings: Maximum contact capacity is specified for both resistive and inductive loads, with detailed ratings for AC and DC voltages. TÜV, UL, and CSA ratings are included for different voltage and load conditions.

Accessories: Available accessories include hold-down springs, clips, and DIN rail end stops, with part numbers and descriptions.

Overview: The document provides technical specifications and operating instructions for various types of relays and sockets, including RF1V, SF1V, RSC, and RSS series, covering contact configurations, mounting dimensions, operating instructions, safety precautions, and specific features of solid-state relays.

Specifications: Details include contact configurations like 4NO-2NC, 3NO-3NC, and 5NO-1NC, with dimensions for DIN rail and panel mount sockets, emphasizing correct voltage application and the use of smoothing capacitors for stable relay operation.

Operating Instructions: Key instructions include ensuring rated voltage application, managing leakage current, and using surge suppression for transistor driving circuits. The importance of using correct contact protection circuits to prevent welding and improve reliability is highlighted.

Safety Precautions: The document stresses turning off power before installation or maintenance, using appropriate wire sizes, and ensuring surge protection. It advises against using relays near strong magnetic fields and exceeding rated values to avoid hazards.

RSC Series Features: The RSC series relays are noted for their slim design, built-in heat sink, and various current output models (20A, 30A, 45A), with features like zero voltage switching, transient protection, and compliance with multiple safety standards.

RSS Series Features: The RSS series relays offer dual SCR output, internal transient protection, and high surge capability, suitable for transformer and heater loads, with recommendations for load ratings at different voltages.

Key Recommendations: For optimal performance, relays should be used within specified voltage and current limits, with appropriate protection circuits, adhering to safety standards to prevent electrical hazards.

Recommended Loads: SSR ratings are provided for different voltages: at 120V AC, 10A supports 900W, 25A supports 2,100W, and 50A supports 3,800W. At 240V AC, these ratings double.

UL Motor Load Ratings: Horsepower ratings vary across 120V, 240V, and 480V for different amperages. For example, a 10A relay supports 1/2 HP at 120V and 3/4 HP at 240V and 480V.

Lamp Loads: Zero voltage switching is recommended for incandescent lamps to reduce inrush current and extend lamp life.

Technical Notes:

Environment: Avoid excessive heat and ensure good ventilation. Reduce load current in high-temperature environments.
Heat Sinks: Recommended for all SSRs, with specified dimensions and materials for different output ratings.
Wiring: Use shielded wires and keep SSRs away from motor leads to prevent malfunction.
Mounting: Ensure proper ventilation and use specified screws for mounting. Vertical mounting is preferred.
Additional Information: Do not exceed voltage and current specifications. Use resistors to manage leakage current and varistors for over-voltage protection.

Temperature Derating Curves: Graphs show the relationship between ambient temperature and load current for different SSR outputs.

Dimensions: Detailed dimensions for mounting and optional covers are provided.

Catalog excerpts

Switching & Controls Switches & Pilot Lights Signaling Lights Relays & Sockets Contactors Terminal Blocks Circuit Breakers

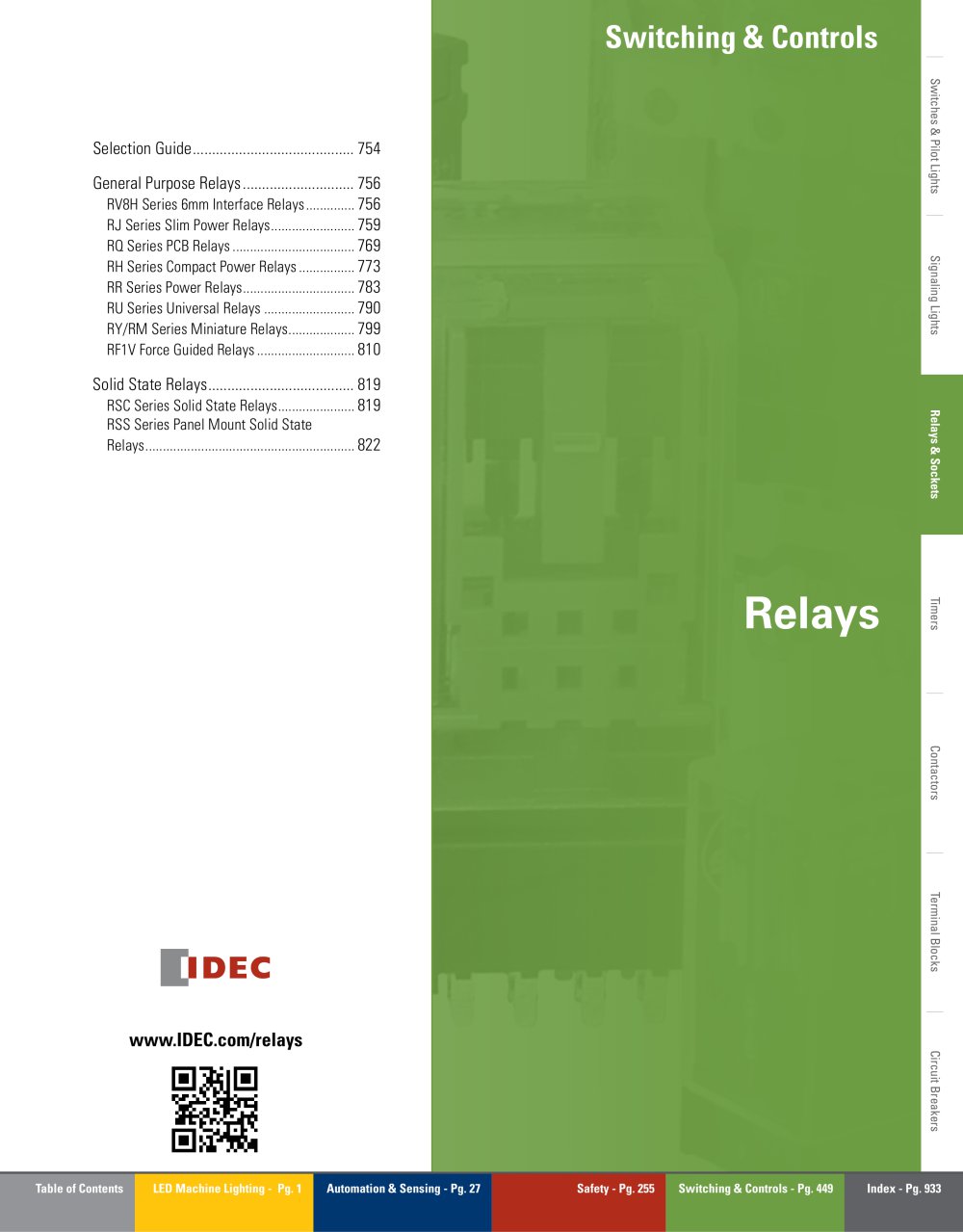

Open the catalog to page 1

Relays & Sockets Switches & Pilot Lights Selection Guide Selection Guide General Purpose Relays Series Signaling Lights Contact Configuration Terminal Contact Rating (resistive) Contact Material Relays & Sockets SPDT, DPDT Silver-Nickel with gold plating Silver-Nickel alloy Silver-Nickel alloy Silver-Cadmium Oxide RY/RM Series Page Contact Configuration Timers SPDT, SPST, DPDT, DPST Contact Rating (resistive) Silver Tin Oxide Indium Gold-Silver Alloy on Silver Gold plated silver Silver alloy Circuit Breakers Terminal Blocks Contact Material

Open the catalog to page 2

Relays & Sockets Selection Guide Switches & Pilot Lights Selection Guide con’t Bifurcated Contacts Relays Series Signaling Lights Contact Configuration Contact Rating (resistive) Contact Material Gold clad Gold Silver Alloy on Silver Relays & Sockets Latching Relays RY2KS Series visit www.IDEC.com/relays DPDT Contact Rating (resistive) Contact Material Silver, gold-plated Contact Configuration Solid State Relays RSC Series Output Configuration Output Rating Terminal Blocks Dual SCR (zero crossing) Circuit Breakers

Open the catalog to page 3

Relays & Sockets RV8H Series 6mm Interface Relays Key features: • Space-saving 6mm width • Only 70mm in height from DIN rail • Gold-plated contacts • Pre-assembled relay and DIN mount socket • Universal screw terminals (flat and Phillips) • Spring clamp terminals • Universal AC/DC socket with built-in surge suppression and green LED • Lever for easy locking and removal of relay • Wide input voltage range: 6 to 240V • High dielectric strength and impulse withstand voltages • Reverse Polarity protected • 400V AC maximum switching voltage • 1500VA maximum switching power • RoHS compliant Complete...

Open the catalog to page 4

Relays & Sockets Contact Ratings Contact Configuration Contact material Allowable contact power Resistive load Operating extremes Damage limits Damage limits NO: Frequency 10 to 55Hz, Amplitude 0.5mm NC: Frequency 10 to 55Hz, Amplitude 0.2mm Operating extremes Minimum Applicable Load NO: Frequency 10 to 55Hz, Amplitude 1.0mm NC: Frequency 10 to 55Hz, Amplitude 0.4mm Allowable Switching Power Allowable Switching Voltage Operating Temperature Operating Humidity Relays & Sockets Mechanical Life (without load) Signaling Lights Shock Resistance Allowable Switching Current Between pole Vibration Resistance...

Open the catalog to page 5

Relays & Sockets Switches & Pilot Lights Note: Drawings are not to scale. Relays & Sockets Signaling Lights Internal Connection (bottom view) RV8H-S Spring Clamp Terminal Terminal Blocks Marking Plate Placement Cut Circuit Breakers *Available in black, gray and blue.

Open the catalog to page 6

Relays & Sockets RJ Switches & Pilot Lights RJ Series Slim Power Relays Relays & Sockets Signaling Lights • Compact and rugged power relays. Large switching capacity • Compact housing only 12.7-mm wide. Large contact rating RJ1 (1-pole): 16A (UL general use rating @250V AC) RJ2 (2-pole): 8A • Non-polarized LED indicator available on blade type. IDEC’s unique light guide structure enables high visibility of coil status from any direction. • The smallest width for 2-pole/bifurcated contact relay • Excellent electrical and mechanical life. Electrical life: 200,000 operations (AC load) Mechanical...

Open the catalog to page 7

Relays & Sockets Coil Voltage Table Coil Voltage Code Replacement Hold Down Springs Relays Standard DIN Rail Mount Finger-safe DIN Rail Mount Part Number Used With Socket Signaling Lights Coil Rating Blade Models Switches & Pilot Lights Jumpers for SJ Sockets Poles Part Number Relays & Sockets Must purchase in quantities of 10. Shown with optional marking plate. *Hold-down clip or spring must be removed to use with RJ PCB relays. Accessories Appearance Aluminum DIN Rail (1 meter length) The BNDN1000 is designed to accommodate DIN mount sockets. Made of durable extruded aluminum, the BNDN1000...

Open the catalog to page 8

Relays & Sockets Number of Poles Contact Configuration Contact Material DPDT bifurcated contacts Silver-nickel alloy DPDT (bifurcated), DPST-NO (bifurcated) AgNi (gold clad) IP40 Flux-tight structure 50 mΩ maximum Signaling Lights 15ms maximum (with diode: 20 ms maximum) Release Time 2 Dielectric Strength Degree of Protection Contact Resistance (initial value) Switches & Pilot Lights 10 ms maximum (with diode: 20 ms maximum) Between contact and coil Between contacts of the same pole Between contacts of different poles Shock Resistance Operating extremes Damage limits 10 to 55 Hz, amplitude 0.75...

Open the catalog to page 9

Relays & Sockets Coil Ratings Rated Voltage Switches & Pilot Lights Signaling Lights Bifurcated Models Coil Voltage Code Blade Models Bifurcated Models Operating Characteristics2 Pickup Voltage Dropout Voltage Power Consumption Rated Voltage Coil Ratings Relays & Sockets Coil Voltage Code Operating Characteristics2 Pickup Voltage Dropout Voltage Power Consumption 1. LED Indicator is only available on Blade or Bifurcated relays. 2. Operating characteristics are at 20ºC. 3. The maximum allowable voltage is the maximum value which can be applied to the relay coils. Contact Ratings Circuit Breakers...

Open the catalog to page 10

Relays & Sockets RJ Switches & Pilot Lights Agency Ratings UL General Use Signaling Lights Relays & Sockets *According to the utilization categories of IEC60947-5-1 Socket Specifications Terminal Electrical Rating Wire Size M3 screw with captive wire clamp M3 screw with captive wire clamp, fingersafe M3 screw with captive wire clamp, fingersafe M3 screw with box clamp, fingersafe M3 screw with box clamp, fingersafe M3 screw with captive wire clamp Finger-safe DIN Rail/Panel Mount DIN Rail/ Panel Mount — Terminal Blocks Circuit Breakers

Open the catalog to page 11

Relays & Sockets Electrical Life Curve (Resistive Load) RJ1 30V DC Resistive Load (NO Contact) 1000 250V AC Resistive Load (NO contact) 100 30V DC Resistive Load (NO Contact) 10 DC Resistive (NO Contact) DC Resistive (NC Contact) DC Inductive (NO Contact) Operating Temperature and Coil Temperature Rise Load Current 12A ¥ 1 pole Load Current 12A ¥ 1 pole Load Current 8A ¥ 2 poles Load Current 12A ¥ 1 pole Load Current 8A ¥ 2 poles Relays & Sockets 30V DC Resistive Load (NO Contact) 250V AC Resistive Load (NO contact) Maximum Switching Capacity (Resistive Load) Terminal Blocks 250V AC Resistive...

Open the catalog to page 12
