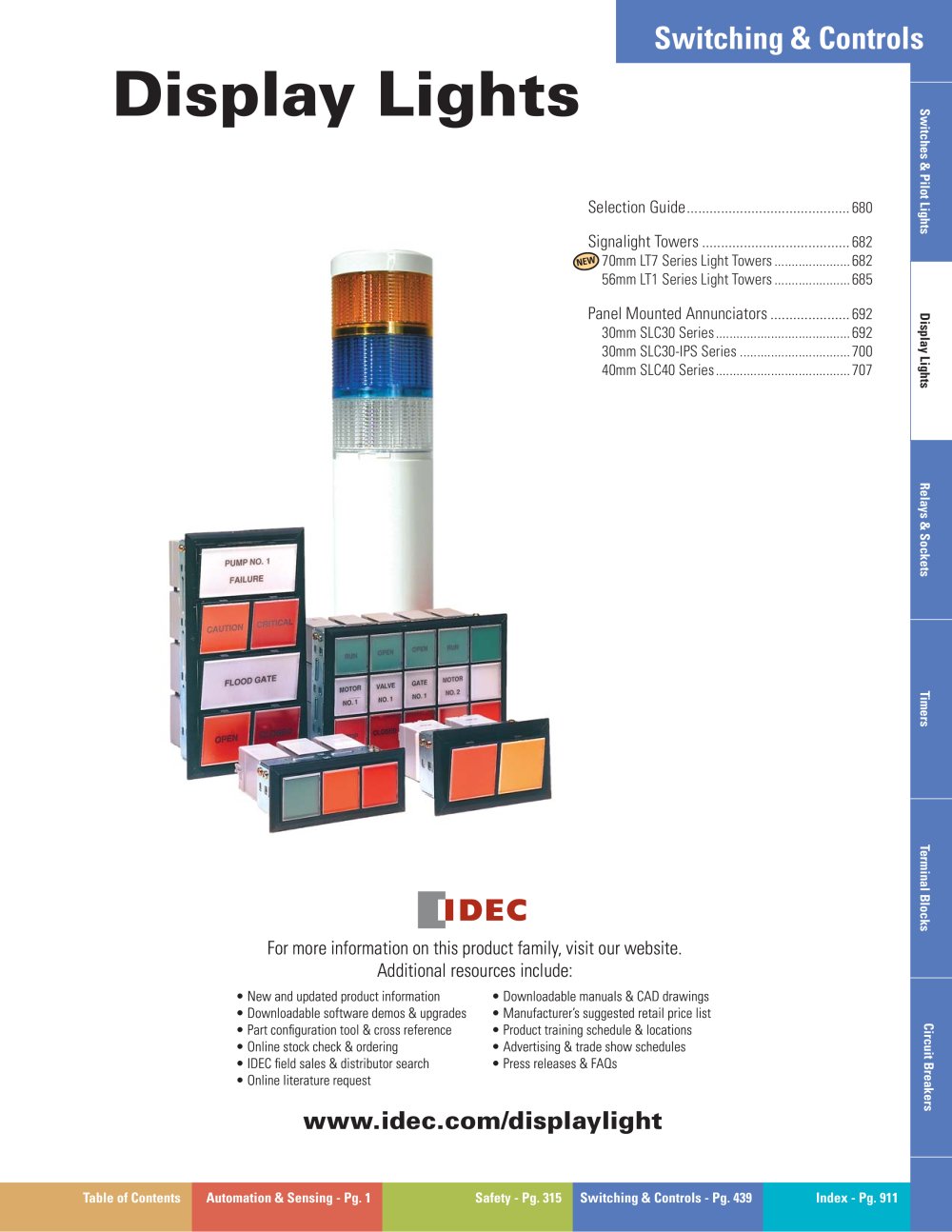

Complete Display Lights Catalog
Product catalog summary
Overview: This document provides comprehensive details on IDEC's product offerings, focusing on automation and sensing, safety, switching and controls, and display lights, with a particular emphasis on SignaLight Towers.
Key Sections:
- Automation & Sensing: Discusses automation technologies and sensing devices.
- Safety: Covers safety equipment and protocols.
- Switching & Controls: Includes a selection guide and specifications for various control devices.
- Display Lights: Provides a detailed guide to SignaLight Towers, including specifications and part numbers.
Display Lights - SignaLight Towers:
- 70mm LT7 Series: Features ultra-bright LEDs, modular assembly, and IP65 protection, suitable for indoor use with high visibility.
- 56mm LT1 Series: Offers custom configurations with LED or incandescent lamps, designed for indoor use with IP20 protection.
Specifications and Features:
- LT7 Series: Details on voltage, power consumption, and environmental protection ratings.
- LT1 Series: Specifications for incandescent and LED models, including voltage and protection levels.
Part Numbers and Assembly: Includes detailed part numbers for easy identification and ordering of specific configurations.
Additional Resources: References additional online resources such as product information, software demos, and manuals.
Specifications:
- Light Source: LED and Incandescent options.
- Nominal Voltages: Options include 6, 12, 24V AC/DC, and 120, 240V AC.
- Colors: Amber, Green, Red, Yellow, Blue, White, and dual color Red/Green.
- Current Consumption: Varies by voltage and color.
- Insulation Resistance: More than 100 MΩ.
- Degree of Protection: IP20 for indoor use.
- Operating Temperature: -20˚ to +40˚C.
Components and Accessories:
- Includes body frame, lenses, lamps, and mounting accessories.
Wiring and Connections:
- Color-coded wiring for flashing and non-flashing series.
Dimensions:
- Various tier heights for SignaLight Towers.
Ordering Information:
- Structured part numbers and detailed ordering instructions.
Engraving Methods: Two methods for engraving SLC annunciator layouts are provided, with an example table for organizing engraving information.
Accessories: Lists various accessories for SLC annunciators with descriptions and part numbers.
Installation Instructions: Detailed instructions for installing SLC series components, including heat management and panel mounting.
Mounting Clips: Specifies the number and recommended positions for mounting clips.
Assembly Order for Lamp Colors: Instructions for assembling lamp colors and using matte surfaces for different light sources.
