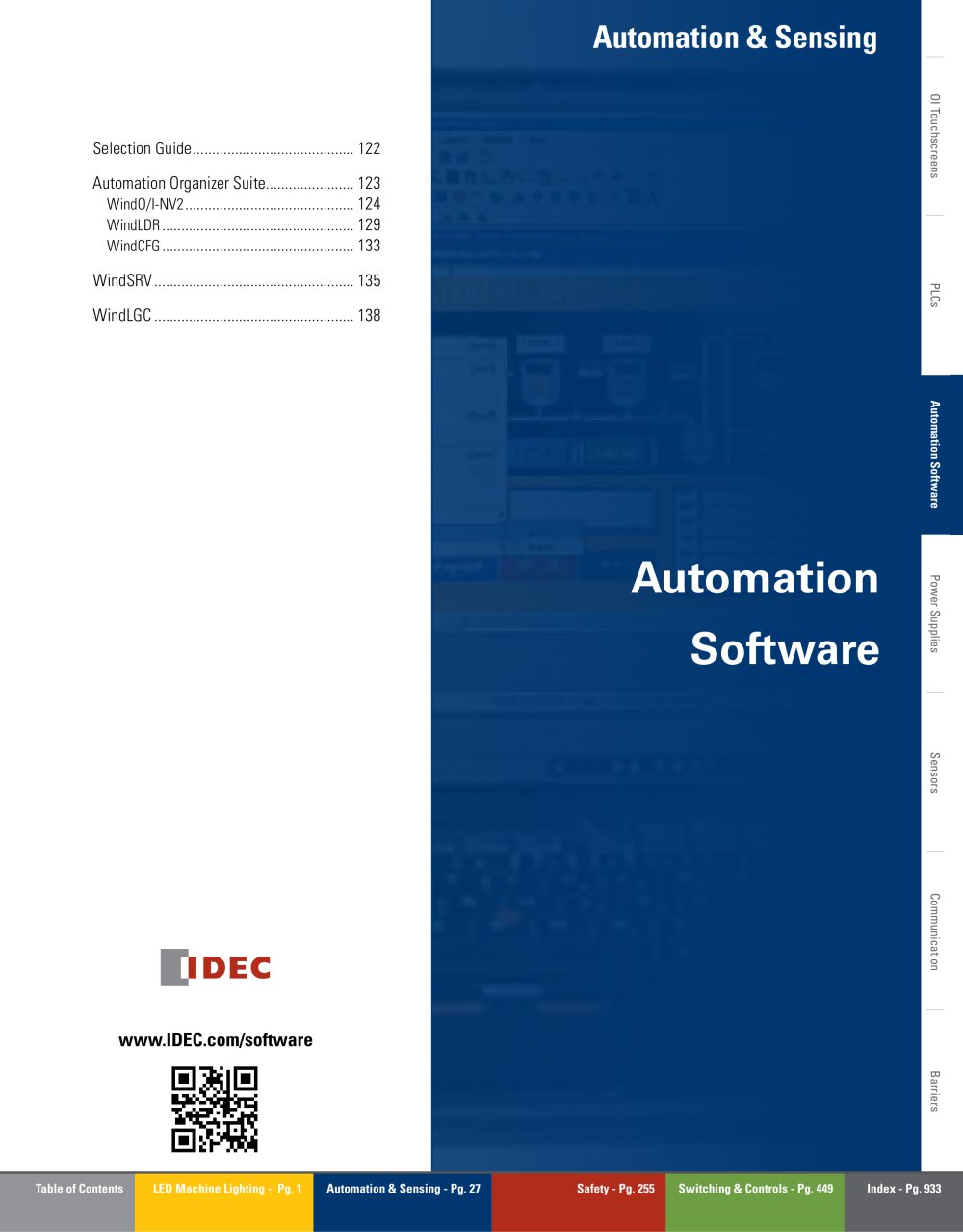

Automation & Sensing OI Touchscreens Automation Software Power Supplies Sensors Communication www.IDEC.com/software Barriers

Automation Software Selection Guide Selection Guide Series Automation Organizer Software Suite visit www.IDEC.com/ software System Configuration Tool for OI Touchscreens & PLCs Character Displays Page Number Power Supplies Automation Software

Automation Software Automation Software Suite Automation Organizer Suite A one-stop automation software package for all IDEC PLC and OI Touchscreens Automation Organizer (AO), the IDEC software suite combining our popular PLC programming software (WindLDR) and OI programming software (WindO/I-NV2) with system configuration software (WindCFG), is made to enable you to see the layout of your system design and basic configuration of devices. AO gives you a powerful and easy-to-use tool to design, debug, and document control systems, saving valuable time and money. FREE Upgrades The Automation Organizer...

Automation Software Automation Organizer Suite - WindO/I-NV2 Programming Software for IDEC OI Touchscreens Key Features • Built-in Serial and Network Protocols • Pass-thru function • Extensive Image Library • Intuitive Drag & Drop Functionality • Flexible Screen Display for Efficient Editing • Workspace – easy to manage projects & screens Power Supplies Automation Software 1 Create Creating a project is simple! Just name a project file and select your parameters (OI type and model, protocol type, and optional settings). 2 Configure Select a functional part and assign a device address. The other...

Automation Software Create a powerful graphical display Extensive Image Library A built-in symbol library provides over 7,000 bitmaps to help you create cutting-edge graphical screens. Image data from BMP and JPG files can You can create a database of device addresses, including Tag Names, which help you label each address to best match your information or documentation. By creating a Tag database, you can choose addresses used to read data from the PLC or Host device, or write data to the PLC or device. Even more convenient, if you have a list of IDEC PLC addresses already made in WindLDR, you...

Automation Software Supports Standard Windows Fonts Automation Software These OI Touchscreens support all fonts used in Windows, including Stroke and 7 Segment Display fonts, making it possible to choose from a variety of text styles to create the look and feel you want to achieve. The IDEC Touchscreen family supports many different languages. Using the Text Group function you can create a text database in Japanese, Chinese, Korean, Taiwanese, as well as Baltic, Cyrillic and other European languages. Plus, you can easily switch text messages from English to Japanese or any other supported language...

Automation Software Security Function When you have multiple users editing projects or displaying screens and parts, it may be necessary to have different levels of security and restrictions. With the Security Function, you can password protect programs, screens and parts from other users. PLCs Automation Software Operation and Alarm Log Functions Power Supplies The operating log helps investigate, analyze and solve problems and system errors by checking who, when, what and where operations were performed. Plus, once you setup up the Alarm Log function for messages and alerts, it can monitor...

Automation Software Switches, Pilot Lamps, and Meters Hundreds of colorful pushbuttons, switches and meter images can give your display a realistic appearance mimicking a real panel. Pushbuttons and switches are used to set a bit, move data, switch screens or print screen images, while pilot lamps or multi-state lamps read and display statuses from single or multiple bits on the PLC or device. Bar Graphs and Trend Charts Power Supplies Automation Software Use the Bar graphs and numerical displays to show range or flow for analog values from your PLC or device, or create Trend Charts to closely...

Automation Software Automation Organizer Suite - WindLDR Programming Software for IDEC PLCs • Online Edit • Simulation Mode • Comment download WindLDR is an excellent, long-term investment for your control solutions. It programs every IDEC PLC including the OpenNet Controller, MicroSmart and the fastest micro-controller on the market, MicroSmart Pentra. It’s adaptable to whatever hardware you need today and down the road. Icon-based toolbars and drag-and-drop functionality make basic ladder programming accessible to anyone. But WindLDR also shows you how to display parameters and settings and...

Automation Software The Confirm and Cancel options allow users to select whether to permanently accept the changes (Confirm) or revert the program back to the original settings (Cancel). This unique Debug tool allows users to download any changes in the program to a temporary memory location in the PLC. With this option, users can verify the changes they make before selecting whether to accept or cancel them. Online Editing Shutting down for minor changes can be a major hassle, so WindLDR allows you to edit and download programs while the PLC is still in Run mode. You’ll be able to make changes...

Automation Software Analog Macro PLCs Setting up analog controls with WindLDR software just got a lot easier. The analog macro instruction allows users to point and select modules, signal and data type in a matter of seconds. And, all of these configurations convert into just one ladder line instruction. Automation Software Power Supplies Sensors Simple-to-use PID Configuring PID loops with WindLDR software is a snap using the built-in PID dialog box. The PID dialog allows users to quickly select and fine tune the desired controls without needing to remember each and every parameter of a PID...

Automation Software Powerful Debugging Tools Comment Download Settings The comment download settings allow users to choose whether to download Tag names, rung comments, custom monitor dialog boxes and file names into the MicroSmart Pentra. The biggest advantage of utilizing these settings is that once a program is retrieved from the PLC, all these important parameters will be available. Automation Software Users can create, save and download the custom monitor dialog into the MicroSmart Pentra controller. Compile and enter a list of parameters you want to monitor, then save it and access it again...
