iC-BM Quad Four-Quadrant Analog Multiplier

iC-BM Quad Four-Quadrant Analog Multiplier

Product catalog summary

Features:
The iC-BM is a four-channel, four-quadrant analog multiplier designed as a replacement for the MLT04. It features four independent channels with a voltage output defined by W = 0.4 × X × Y, an analog input range of ±2.5 V, a bandwidth of 3.5 MHz, and low power dissipation. It is suitable for applications such as analog computation, squaring circuits, modulation and demodulation, and voltage-controlled amplifiers and filters. The device is available in an RoHS-compliant SO18W package.

Description:
The iC-BM consists of four analog multipliers, each utilizing a Gilbert cell multiplier with a 0.4 scale factor, a linearization circuit, and a unity gain output amplifier. Internal bias currents are derived from an internal band-gap reference for higher precision, and all pins are ESD protected.

Pin Configuration:
The SO18W package includes pins for four channels, each with inputs X and Y, an output W, and a ground pin. The device operates with a positive power supply (VCC) of +5 V and a negative power supply (VEE) of -5 V.

Package Dimensions:
The dimensions for the SO18W package are provided in millimeters, with a recommended PCB footprint.

Absolute Maximum Ratings:
The device can withstand a maximum VCC of 7 V and a minimum VEE of -7 V. The voltage at pins X, Y, and W should remain within -7 V to 7 V. The chip and storage temperatures range from -40°C to 150°C.

Thermal Data:
Operating conditions include a VCC of 5 V ±0.25 V, VEE of -5 V ±0.25 V, and a thermal resistance of 68 K/W. The operating ambient temperature range is -40°C to 85°C.

Electrical Characteristics:
The device operates with a positive supply voltage range of 4.75 V to 5.25 V and a negative supply voltage range of -5.25 V to -4.75 V. The power dissipation is between 150 mW and 200 mW. Multiplier performance includes offset voltages, scale factor, total error, and linearity error specifications. Dynamic performance includes a bandwidth of 3.5 MHz, a slew rate of 30 V/µs, and a settling time of 1 µs.

Ordering Information:
The iC-BM is available in the SO18W package. For technical support and ordering, contact iC-Haus GmbH in Germany or visit their website for local distributors.

Catalog excerpts

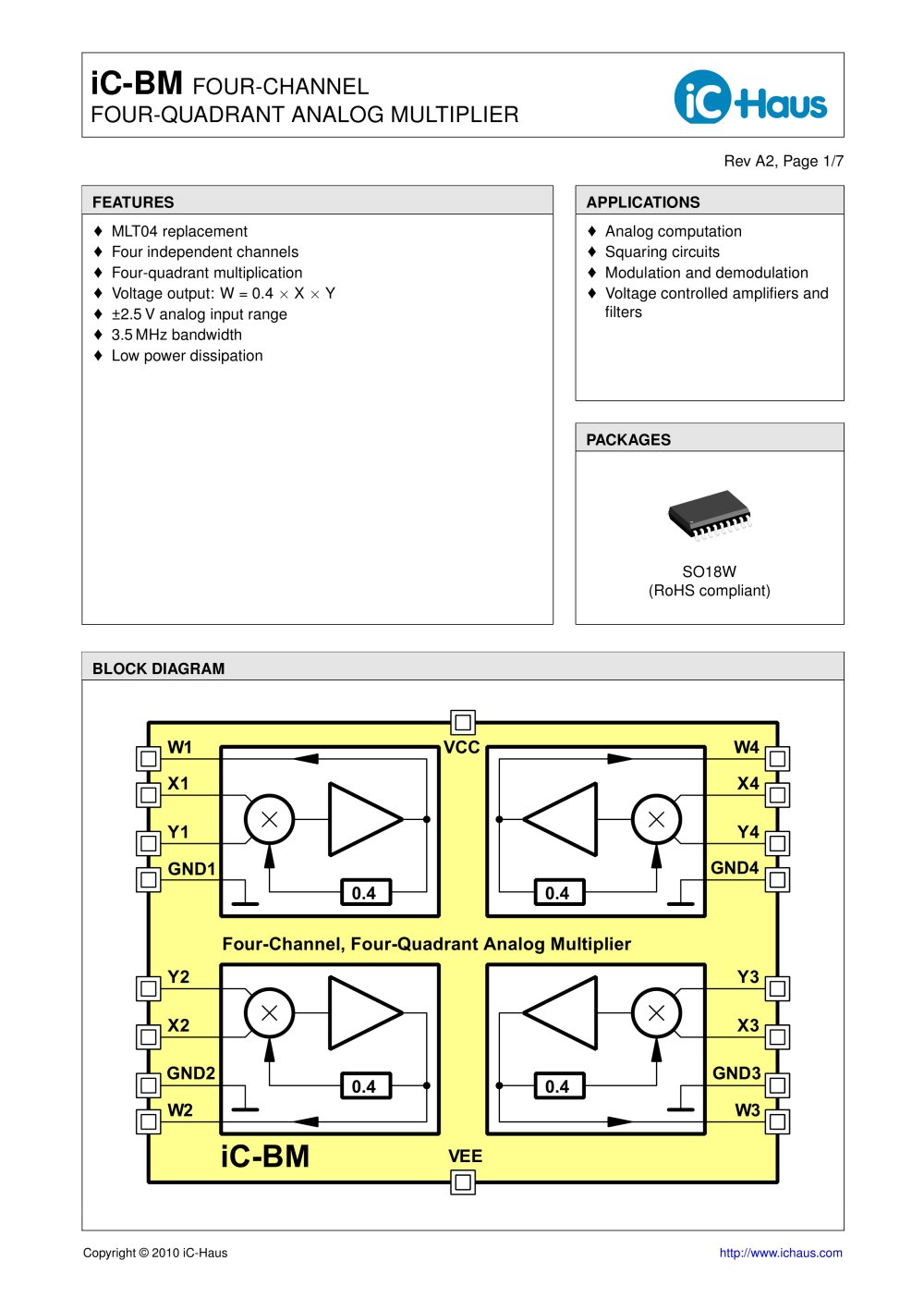

iC-BM Quad Four-Quadrant Analog Multiplier-1

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 1/7 FEATURES ' MLT04 replacement ' Four independent channels ' Four-quadrant multiplication ' Voltage output: W = 0.4 X Y ' ±2.5 V analog input range ' 3.5MHz bandwidth ' Low power dissipation APPLICATIONS ' Analog computation ' Squaring circuits ' Modulation and demodulation ' Voltage controlled amplifiers and filters PACKAGES SO18W (RoHS compliant) BLOCK DIAGRAM Y1 X2 W4 0.4 X4 0.4 W3 Y3 VEE X3 W2 W1 X1 Y4 Y2 0.4 0.4 VCC GND1 GND2 GND4 GND3 iC-BM Four-Channel, Four-Quadrant Analog Multiplier Copyright © 2010 iC-Haus http://www.ichaus.com

Open the catalog to page 1

iC-BM Quad Four-Quadrant Analog Multiplier-2

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 2/7 DESCRIPTION iC-BM features four analog multipliers. Each fourquadrant multiplier consists of a Gilbert cell multiplier with a 0.4 scale factor, a linearisation circuit and a unity gain output amplifier. For higher precision all internal bias currents are derived from an internal band-gap reference. All pins are ESD protected. PACKAGES PIN CONFIGURATION SO18W PIN FUNCTIONS No. Name Function 1 W1 Channel 1: Analog multiplier output 2 GND1 Channel 1: Ground 3 X1 Channel 1: First input of multiplier 4 Y1 Channel 1: Second input of...

Open the catalog to page 2

iC-BM Quad Four-Quadrant Analog Multiplier-4

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 4/7 ABSOLUTE MAXIMUM RATINGS Beyond these values damage may occur; device operation is not guaranteed. Item Symbol Parameter Conditions Unit No. Min. Max. G001 VCC Positive Power Supply 7 V G002 VEE Negative Power Supply -7 V G003 V() Voltage at Pins X1...4, Y1...4 and W1...4 -7 7 V G004 Tj Chip Temperature -40 150 °C G005 Ts Storage Temperature -40 150 °C THERMAL DATA Operating Conditions: VCC = 5 V ±0.25 V , VEE = -5 V ±0.25V, Tj = -40...100 °C, RL = 2 k , if not other specified Item Symbol Parameter Conditions Unit No. Min. Typ....

Open the catalog to page 4

iC-BM Quad Four-Quadrant Analog Multiplier-5

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 5/7 ELECTRICAL CHARACTERISTICS Operating Conditions: VCC = 5 V ±0.25 V , VEE = -5 V ±0.25V, Tj = -40...100 °C, RL = 2 k , if not other specified Item Symbol Parameter Conditions Unit No. Min. Typ. Max. General 101 V(VCC) Positive Supply Voltage Range 4.75 5 5.25 V 102 V(VEE) Negative Supply Voltage Range -5.25 -5 -4.75 V 103 I(VCC) Positive Supply Current W1...4 without load resistors 15 20 mA 104 I(VEE) Negative Supply Current W1...4 without load resistors -20 -15 mA 105 PDISS Power Dissipation PDISS = 5 V ICC + 5 V IEE 150 200...

Open the catalog to page 5

iC-BM Quad Four-Quadrant Analog Multiplier-6

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 6/7 iC-Haus expressly reserves the right to change its products and/or specifications. An info letter gives details as to any amendments and additions made to the relevant current specifications on our internet website www.ichaus.de/infoletter; this letter is generated automatically and shall be sent to registered users by email. Copying – even as an excerpt – is only permitted with iC-Haus’ approval in writing and precise reference to source. iC-Haus does not warrant the accuracy, completeness or timeliness of the specification...

Open the catalog to page 6

iC-BM Quad Four-Quadrant Analog Multiplier-7

iC-BM FOUR-CHANNEL FOUR-QUADRANT ANALOG MULTIPLIER Rev A2, Page 7/7 ORDERING INFORMATION Type Package Order Designation iC-BM SO18W iC-BM SO18W For technical support, information about prices and terms of delivery please contact: iC-Haus GmbH Tel.: +49 (61 35) 92 92-0 Am Kuemmerling 18 Fax: +49 (61 35) 92 92-192 D-55294 Bodenheim Web: http://www.ichaus.com GERMANY E-Mail: [email protected] Appointed local distributors: http://www.ichaus.com/sales_partners

Open the catalog to page 7
