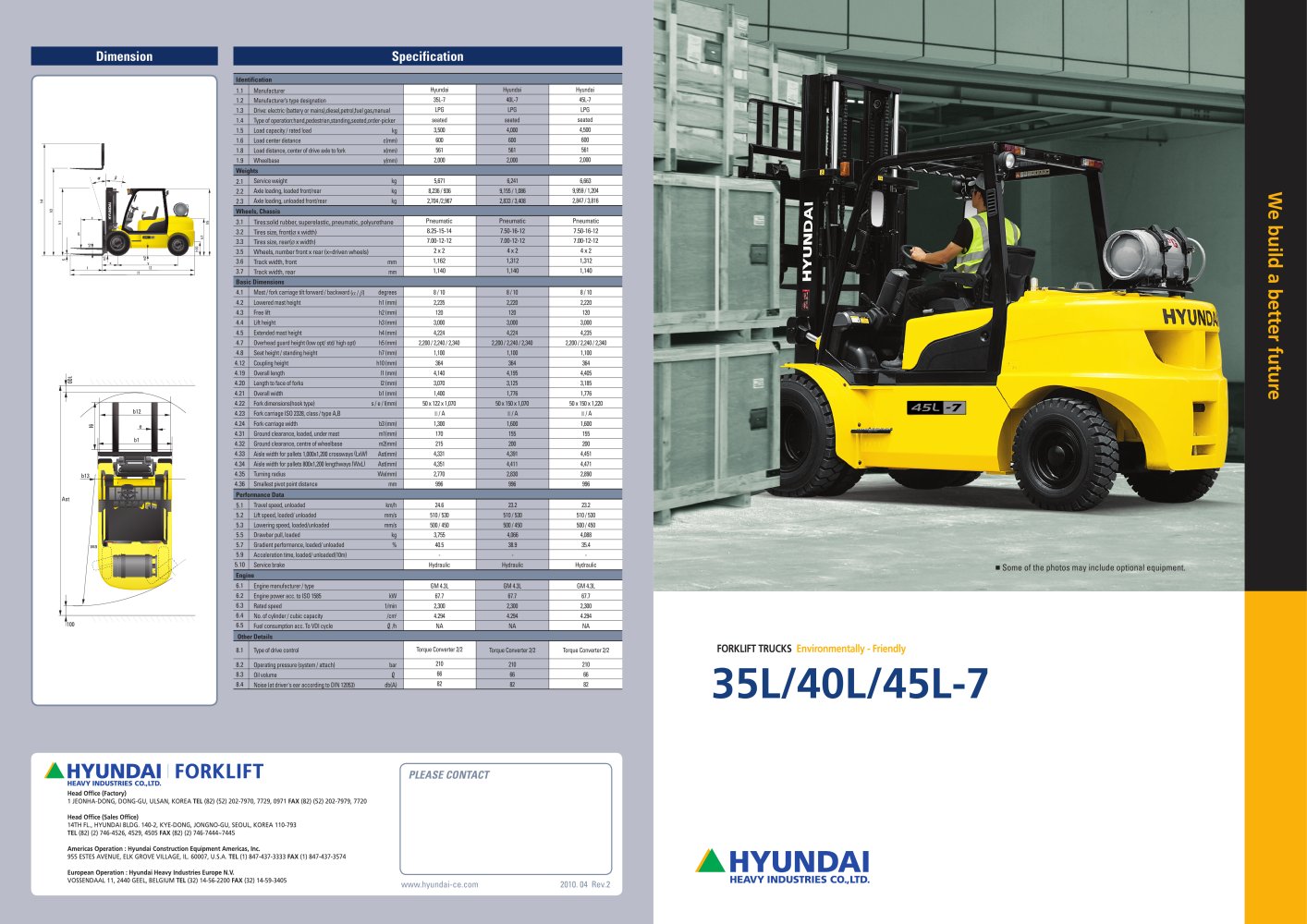

PLEASE CONTACT www.hyundai-ce.com 2010. 04 Rev.2 Dimension Weights Wheels, Chassis Basic Dimensions Performance Data Engine Other Details Specification 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 Manufacturer Manufacturer’s type designation Drive: electric (battery or mains),diesel,petrol,fuel gas,manual Type of operation:hand,pedestrian,standing,seated,order-picker Load capacity / rated load kg Load center distance c(mm) Load distance, center of drive axle to fork x(mm) Wheelbase y(mm) Hyundai 35L-7 LPG seated 3,500 600 561 2,000 Hyundai 40L-7 LPG seated 4,000 600 561 2,000 Hyundai 45L-7 LPG seated 4,500 600 561 2,000 Service weight kg Axle loading, loaded front/rear kg Axle loading, unloaded front/rear kg 5,671 8,236 / 936 2,704 /2,967 6,241 9,155 / 1,086 2,833 / 3,408 6,663 9,959 / 1,204 2,847 / 3,816 Tires:solid rubber, superelastic, pneumatic, polyurethane Tires size, front(ø x width) Tires size, rear(ø x width) Wheels, number front x rear (x=driven wheels) Track width, front mm Track width, rear mm Pneumatic 8.25-15-14 7.00-12-12 2 x 2 1,162 1,140 Pneumatic 7.50-16-12 7.00-12-12 4 x 2 1,312 1,140 Pneumatic 7.50-16-12 7.00-12-12 4 x 2 1,312 1,140 Mast / fork carriage tilt forward / backward (á / â) degrees Lowered mast height h1 (mm) Free lift h2 (mm) Lift height h3 (mm) Extended mast height h4 (mm) Overhead guard height (low opt/ std/ high opt) h5 (mm) Seat height / standing height h7 (mm) Coupling height h10 (mm) Overall length l1 (mm) Length to face of forks l2 (mm) Overall width b1 (mm) Fork dimensions(hook type) s / e / l(mm) Fork carriage ISO 2328, class / type A,B Fork-carriage width b3 (mm) Ground clearance, loaded, under mast m1(mm) Ground clearance, centre of wheelbase m2(mm) Aisle width for pallets 1,000x1,200 crossways (LxW) Ast(mm) Aisle width for pallets 800x1,200 lengthways (WxL) Ast(mm) Turning radius Wa(mm) Smallest pivot point distance mm 8 / 10 2,235 120 3,000 4,224 2,200 / 2,240 / 2,340 1,100 364 4,140 3,070 1,400 50 x 122 x 1,070 ‡V/ A 1,300 170 215 4,331 4,351 2,770 996 8 / 10 2,220 120 3,000 4,224 2,200 / 2,240 / 2,340 1,100 364 4,195 3,125 1,776 50 x 150 x 1,070 ‡V/ A 1,600 155 200 4,391 4,411 2,830 996 8 / 10 2,220 120 3,000 4,235 2,200 / 2,240 / 2,340 1,100 364 4,405 3,185 1,776 50 x 150 x 1,220 ‡V/ A 1,600 155 200 4,451 4,471 2,890 996 Travel speed, unloaded km/h Lift speed, loaded/ unloaded mm/s Lowering speed, loaded/unloaded mm/s Drawbar pull, loaded kg Gradient performance, loaded/ unloaded % Acceleration time, loaded/ unloaded(10m) Service brake 24.6 510 / 530 500 / 450 3,755 40.5 - Hydraulic 23.2 510 / 530 500 / 450 4,066 38.9 - Hydraulic 23.2 510 / 530 500 / 450 4,088 35.4 - Hydraulic Engine manufacturer / type Engine power acc. to ISO 1585 kW Rated speed 1/min No. of cylinder / cubic capacity /cm2 Fuel consumption acc. To VDI cycle /h GM 4.3L 67.7 2,300 4.294 NA GM 4.3L 67.7 2,300 4.294 NA Torque Converter 2/2 210 66 82 GM 4.3L 67.7 2,300 4.294 NA Torque Converter 2/2 210 66 82 Type of drive control Operating pressure (system / attach) bar Oil volume Noise (at driver's ear according to DIN 12053) db(A) Torque Converter 2/2 210 66 82 2.1 2.2 2.3 3.1 3.2 3.3 3.5 3.6 3.7 4.1 4.2 4.3 4.4 4.5 4.7 4.8 4.12 4.19 4.20 4.21 4.22 4.23 4.24 4.31 4.32 4.33 4.34 4.35 4.36 5.1 5.2 5.3 5.5 5.7 5.9 5.10 6.1 6.2 6.3 6.4 6.5 8.2 8.3 8.4 8.1 Identification Forklift Trucks Environmentally - Friendly 35L/40L/45L-7 Some of the photos may include optional equipment.

Hyundai introduces a new line of 7 series LPG forklift trucks. Excellent power and performance make your business more profitable. 02 03 Neew ccrriitteerriiaa ooff FFoorrkklliifftt TTrruucckkss FORKLIFT Model Some of the photos may include optional equipment.

07 Adjustable steering wheel Steering wheel with horn button can be adjusted by a lever on the right-hand side for the most comfortable operator position. Easy and safe shift lever A single lever on the left side of the steering column gives the operator fast and easy controls of the direction. Multi-function switch lever Multi-functional switch lever gives easy access to lights and horn. Quick response of operating control levers Only minimal operator’s effort is required for precise, safe and productive control. Ergonomically positioned pedals Based on human engineering, the accelerator, brake...

09 Expansion bellows The expansion bellows absorbs vibration and reduces noise generated from the exhaust gas system and also extends the life cycle of exhaust gas system. Bright, protected headlights Bright, protected headlights are positioned for exceptional visibility. Easy access of electrical Components Var ious elect r ic par t s ar e centralized in dash board resulting in improve-ment in maintenance. 08 Strong overhead guard The safety overhead guard exceeds EEC and ANSI regulations and protects the operator during hazardous jobs. Ground clearance The engine and transmission are as sembled...
