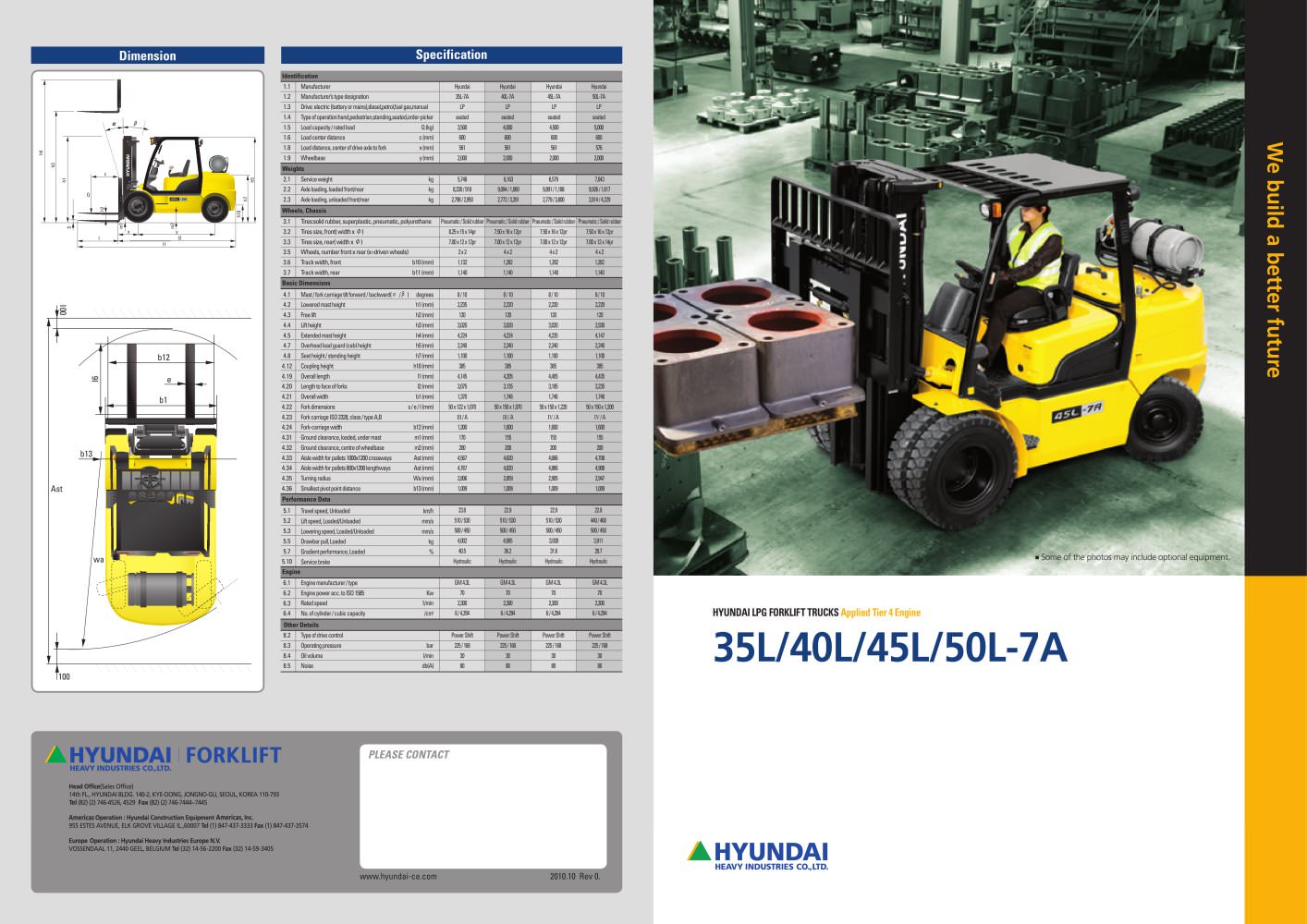

www.hyundai-ce.com 2010.10 Rev 0. PLEASE CONTACT HYUNDAI LPG FORKLIFT TRUCKS Applied Tier 4 Engine 35L/40L/45L/50L-7A Some of the photos may include optional equipment. Dimension Specification h4 h3 S h1 h5 h7 h10 h2 I6 m1 m2 c b12 100 b13 wa Ast 100 b1 e Q I x y I1 I2 Weights Wheels, Chassis Performance Data Engine 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 Manufacturer Manufacturer’s type designation Drive: electric (battery or mains),diesel,petrol,fuel gas,manual Type of operation:hand,pedestrian,standing,seated,order-picker Load capacity / rated load Q (kg) Load center distance c (mm) Load distance, center of drive axle to fork x (mm) Wheelbase y (mm) Hyundai 40L-7A LP seated 4,000 600 561 2,000 Hyundai 35L-7A LP seated 3,500 600 561 2,000 5,748 8,330 / 918 2,798 / 2,950 6,163 9,094 / 1,069 2,772 / 3,391 6,579 9,891 / 1,188 2,779 / 3,800 7,043 9,926 / 1,617 2,814 / 4,229 Pneumatic / Solid rubber 8.25 x 15 x 14pr 7.00 x 12 x 12pr 2 x 2 1,132 1,140 Pneumatic / Solid rubber 7.50 x 16 x 12pr 7.00 x 12 x 12pr 4 x 2 1,282 1,140 Pneumatic / Solid rubber 7.50 x 16 x 12pr 7.00 x 12 x 12pr 4 x 2 1,282 1,140 Pneumatic / Solid rubber 7.50 x 16 x 12pr 7.00 x 12 x 14pr 4 x 2 1,282 1,140 8 / 10 2,235 120 3,020 4,224 2,240 1,100 385 4,145 3,075 1,370 50 x 122 x 1,070 III / A 1,300 170 200 4,567 4,767 2,806 1,009 8 / 10 2,220 120 3,020 4,224 2,240 1,100 385 4,205 3,135 1,746 50 x 150 x 1,070 III / A 1,600 155 200 4,620 4,820 2,859 1,009 8 / 10 2,220 120 3,020 4,235 2,240 1,100 385 4,405 3,185 1,746 50 x 150 x 1,220 IV / A 1,600 155 200 4,666 4,866 2,905 1,009 8 / 10 2,220 120 2,930 4,147 2,240 1,100 385 4,435 3,235 1,746 50 x 150 x 1,200 IV / A 1,600 155 200 4,708 4,908 2,947 1,009 23.8 510 / 530 500 / 450 4,002 40.5 Hydraulic 22.9 510 / 530 500 / 450 4,065 36.2 Hydraulic 22.9 510 / 530 500 / 450 3,930 31.6 Hydraulic 22.8 440 / 460 500 / 450 3,911 28.7 Hydraulic GM 4.3L 70 2,300 6 / 4,294 GM 4.3L 70 2,300 6 / 4,294 GM 4.3L 70 2,300 6 / 4,294 GM 4.3L 70 2,300 6 / 4,294 Hyundai 45L-7A LP seated 4,500 600 561 2,000 Hyundai 50L-7A LP seated 5,000 600 576 2,000 Service weight kg Axle loading, loaded front/rear kg Axle loading, unloaded front/rear kg Tires:solid rubber, superplastic, pneumatic, polyurethane Tires size, front( width x Ö) Tires size, rear( width x Ö) Wheels, number front x rear (x=driven wheels) Track width, front b10 (mm) Track width, rear b11 (mm) Mast / fork carriage tilt forward / backward( á / â) degrees Lowered mast height h1 (mm) Free lift h2 (mm) Lift height h3 (mm) Extended mast height h4 (mm) Overhead load guard (cab) height h5 (mm) Seat height / standing height h7 (mm) Coupling height h10 (mm) Overall length l1 (mm) Length to face of forks l2 (mm) Overall width b1 (mm) Fork dimensions s / e / l (mm) Fork carriage ISO 2328, class / type A,B Fork-carriage width b12 (mm) Ground clearance, loaded, under mast m1 (mm) Ground clearance, centre of wheelbase m2 (mm) Aisle width for pallets 1000x1200 crossways Ast (mm) Aisle width for pallets 800x1200 lengthways Ast (mm) Turning radius Wa (mm) Smallest pivot point distance b13 (mm) Travel speed, Unloaded km/h Lift speed, Loaded/Unloaded mm/s Lowering speed, Loaded/Unloaded mm/s Drawbar pull, Loaded kg Gradient performance, Loaded % Service brake Engine manufacturer / type Engine power acc. to ISO 1585 Kw Rated speed 1/min No. of cylinder / cubic capacity /cm3 2.1 2.2 2.3 3.1 3.2 3.3 3.5 3.6 3.7 4.1 4.2 4.3 4.4 4.5 4.7 4.8 4.12 4.19 4.20 4.21 4.22 4.23 4.24 4.31 4.32 4.33 4.34 4.35 4.36 5.1 5.2 5.3 5.5 5.7 5.10 6.1 6.2 6.3 6.4 Other Details Type of drive control Operating pressure bar Oil volume l/min Noise db(A) Power Shift 225 / 168 30 80 Power Shift 225 / 168 30 80 Power Shift 225 / 168 30 80 Power Shift 225 / 168 30 80 8.2 8.3 8.4 8.5 Identification Basic Dimensions S h1 h5 h7 h10 h2 I6 m1 m2 c b12 100 b13 wa Ast 100 b1 e Q I x y I1 I2
Open the catalog to page 1
FORKLIFT Excellent Model 02 03 of Forklift Trucks NEW criteria Hyundai introduces a new line of 7A series LPG forklift trucks. Excellent power and performance make your business more profitable. Some of the photos may include optional equipment. OPSS (Operator Presence Sensing System) Control of mast tilting, lifting and lowering is not possible through operation of the appropriate control when the operator is not in the seated position. Lift Lock Tilt Lock Drive Lock
Open the catalog to page 2
04 05 High Power & Performance High Power Low Noise 8B10B The new master on the job-site! Smooth running, efficient and ergonomically designed, 35/40/45/50L-7A series are made to meet your needs. State-of-the-art Hydraulic System The latest large-capacity hydraulic system reacts quickly during operation, and a low-noise control valve increases both efficiency and durability. Fully Hydrostatic Power Steering A hydraulic steering system always guarantees smooth and flexible steering, preventing overrun and kick-back. Increased mast tilting angle Utilizing the mast tilting angle of 8 degrees...
Open the catalog to page 3
06 07 Comfortable Operation Operator friendly gauges and water-resistant monitor panel New High Visibility for Safe Operation The operator is able to work with increased safety and accuracy due to a wider view mast. Ergonomically Positioned Pedals Based on human engineering, the accelerator, brake and inching pedals are optimally positioned for convenience while operating the equipment. Cup Holder & Console Box Additional storage spaces are located inside the operating space for operator’s convenience. A design based on human engineering relieves fatigue and increases operator’s efficiency....
Open the catalog to page 4
08 09 Endurance & Safety Safety and durability are priorities in design of the equipment. Strong Overhead Guard The safety overhead guard meets ISO 6055 regulation and protects the operator during hazardous jobs. Parking brake Ratchet type parking brake requires less effort the operator to set. Highly Durable Split type Drive Axle The planetary reduction drive axle smoothly delivers desired torque to the drive wheels. Large Footboard & Hand Grip Wide“open”step offers convenience and safety when entering and exiting truck. Electrically Monitored Air Filter Air cleaner sensor alerts the...
