Catalog excerpts
Standard Equipment Optional Equipment ISO standard cabin All-weather steel cab with all-around visibility Safety glass windows Rise-up type windshield wiper Sliding fold-in front window Sliding side window Lockable door Hot & cool box Accessory box & Ash-tray Computer Aided Power Optimization (New CAPO) system 2-power mode, 3-work mode, 2-user mode Auto deceleration & one touch deceleration system Auto warm up system Auto overheat prevention system Robex 210NLC-7A Heater & Defroster Self diagnostic system Starting Aid (air grid heater), cold weather Centralized monitoring LCD display Engine speed Clock & Error code Gauges Fuel level gauge Engine coolant temperature gauge Hyd. oil temperature gauge Warning Fuel level CPU Engine oil pressure Engine coolant temperature Hyd. oil temperature Low battery Air cleaner clogging Indicator Power max Preheat & Engine warming-up One touch decel Door and cab locks, one key AM/FM radio and cassette Radio remote switch Two outside rearview mirrors Fully adjustable suspension seat with seat belt Slidable joystick, pilot-operated Console box tilting system(LH.) Three front working lights Electric horn Batteries (2 x 12V x 100 AH) Battery master switch Removable clean out screen for Hyd. oil cooler Automatic swing brake Removable reservoir tank Water separator & pre filter, fuel line Boom holding system Arm holding system Counterweight (4700 kg, 10360 lb) Mono boom (5.65m, 18’ 6”) Arm (2.90m, 9’ 6”) Track shoes (500 mm, 20”) Track rail guard Fuel warmer Air-conditioner (5000 kcal/hr, 20000 BTU/hr) Sun visor for cabin inside Fuel filler pump (35 /min, 9.5 US gpm) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single acting piping kit (breaker, etc) Double acting piping kit (clamshell, etc) Accumulator, work equipment lowering 12 volt power outlet (24V DC to 12V DC converter) Electric transducer Travel alarm Various optional Arms Super short arm (2.00m, 6’ 7”) Short arm (2.40m, 7’ 10”) NEW 7A SERIES CRAWLER EXCAVATOR Applied Tier 3 Engine Various optional Buckets (SAE heaped) Standard bucket (0.87m3, 1.14yd3) Narrow bucket (0.51m3, 0.67yd3) Narrow bucket (0.80m3, 1.05yd3) Light duty bucket (0.92m3, 1.20yd3) Light duty bucket (1.10m3, 1.44yd3) Light duty bucket (1.20m3, 1.57yd3) Light duty bucket (1.34m3, 1.75yd3) Heavy duty bucket (0.74m3, 0.97yd3) Heavy duty bucket (0.90m3, 1.18yd3) Heavy duty bucket (1.05m3, 1.37yd3) Rock bucket (0.87m3, 1.14yd3) Slope fishing bucket (0.75m3, 0.98yd3) Cabin FOPS/FOG(ISO 10262) Cabin roof cover(Transparent type) Cabin lights Track shoes Triple grousers shoe (600mm, 24”) Pre heating system Tool kit Operator suit Special cooling Low noise kit FATC(Full Automatic Temperature Control) Seat Adjustable air suspension seat Mechanical suspension seat with heater Adjustable air suspension with heater Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement rounded off to nearest pounds or inches. PLEASE CONTACT www.hyundai-ce.com www.hyundai-ce.com 2003. 6 2007. 07 Rev 1. 0 Some of the photos may include optional equipment.

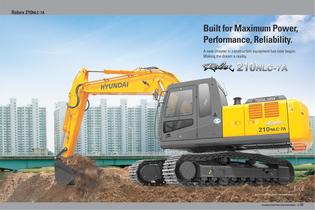

Open the catalog to page 1Robex 210NLC-7A Built for Maximum Power, Performance, Reliability. A new chapter in construction equipment has now begun. Making the dream a reality. Some of the photos may include optional equipment. HYUNDAI CONSTRUCTION EQUIPMENT 02 / 03

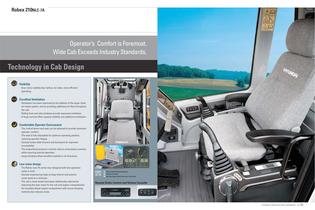

Open the catalog to page 2Robex 210NLC-7A Operator’s Comfort is Foremost. Wide Cab Exceeds Industry Standards. Technology in Cab Design Visibility . Even more visibility than before, for safer, more efficient operating. Excellent Ventilation . Ventilation has been improved by the addition of the larger fresh air intake system, and by providing additional air flow throughout the cab. . Sliding front and side windows provide improved ventilation. . A large sunroof offers upward visibility and additional ventilation. Comfortable Operator Environment . The control levers and seat can be adjusted to provide maximum...
Open the catalog to page 3Robex 210NLC-7A Improved Intelligent Display Instrument Panel is installed in front of RH console box. It is easy to check all critical systems with easy-to-read indicators. Minimization of Shock and Vibration through Cab Mounting System The application of Viscous Mounting to the cabin support provides the operator with a much improved ride. The operator work efficiency will increase as the shock and noise level in the cabin decreases. Operating Environment Maximum Protection Storage box and Cup Holder An Additional storage box and cup holder are located behind operator’s seat, and it keeps...

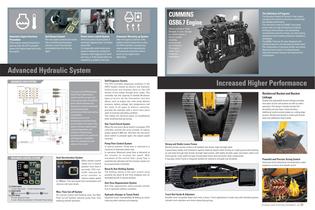

Open the catalog to page 4CUMMINS QSB6.7 Engine Automatic Engine Overheat Prevention If the engine coolant temperature gets too high, the CPU controller lowers the engine speed and cools the engine. Anti Restart System Power boost control System Automatic Warming-up System The new system protects the starter from re-starting during engine operation, even if the operator accidentally turns the start key again. When the power boost system is activated, digging power increases about 10%. It is especially useful when extra power is temporarily needed, for instance, when digging hard earth and rock, or if the bucket...
Open the catalog to page 5Robex 210NLC-7A Durability of structure proven through FEM(Finite Element Method) analysis and long term durability test. Full open doors and master key system provide easy access for servicing. Reliability & Serviceability Side Cover with Left & Right Swing Open Type Easy to maintain engine components Easy access to vital components gives unrestricted view of component allows easy maintenance and repair. The cooling and preheating system are provided for optimum and immediate operation, guaranteeing longer life for the engine and hydraulic components. Servicing of the engine and hydraulics...
Open the catalog to page 6Specifications Backhoe attachment Engine Buckets Swing system Model Cummins QSB6.7 Water cooled, 4 cycle Diesel,6-Cylinders in line, direct injection, turbo charged, charger air cooled, low emission Type J1995 (gross) J1349 (net) 6271/1 (gross) 6271/1 (net) Max. torque Bore x stroke Piston Batteries Starting motor Alternator Rated SAE flywheel horse DIN power 151 HP (113 kW) at 1900 rpm 143 HP (107 kW) at 1900 rpm 153 PS (113 kW) at 1900 rpm 145 PS (107 kW) at 1900 rpm 63 kgf.m(456 lbf.ft) at 1500 rpm 107 x 124 mm (4.2” x 4.9”) 6,700 cc (409 cu in) 2 x 12 V x 100 AH 24 V, 4.5kW 50 Amp...
