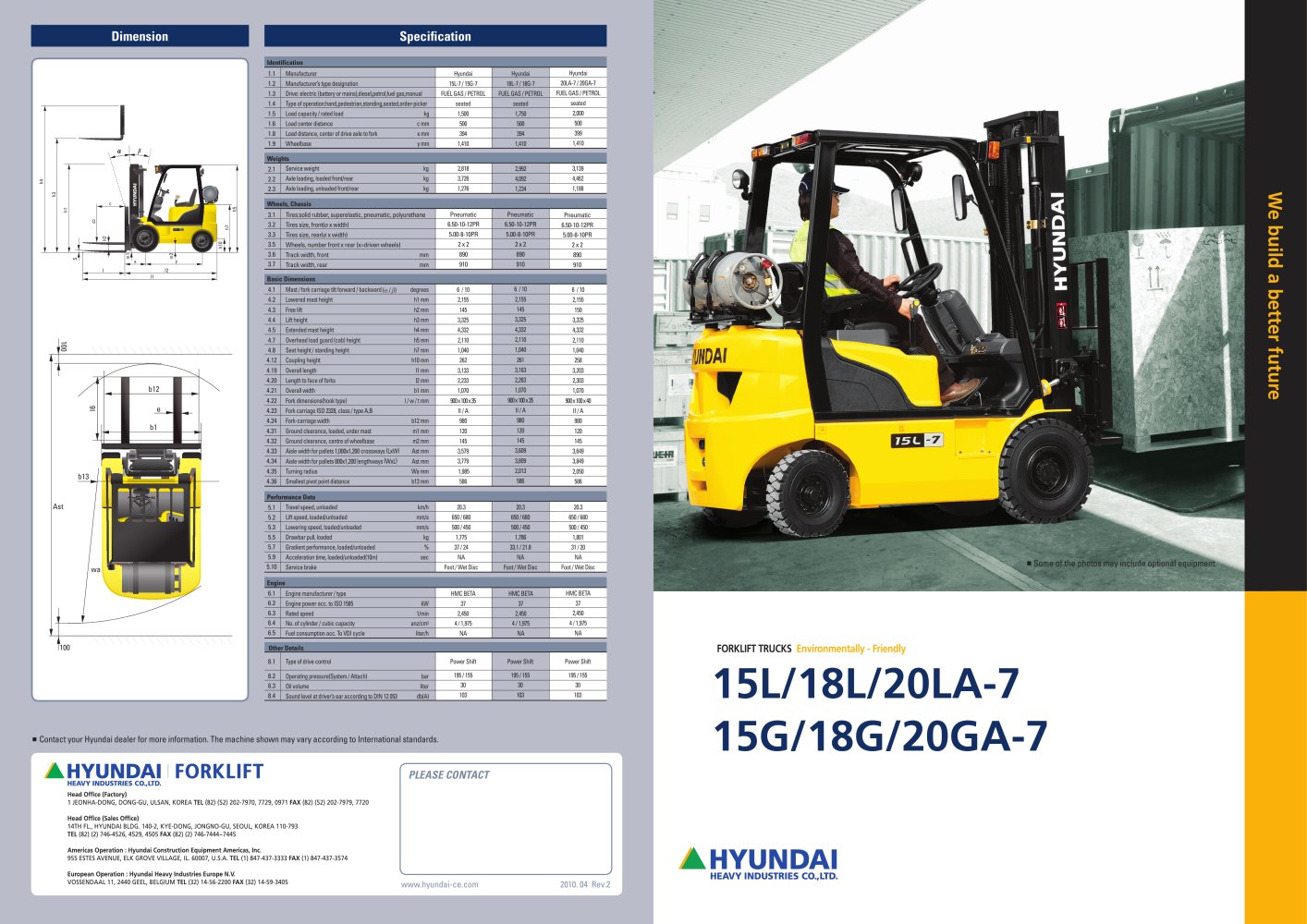

PLEASE CONTACT www.hyundai-ce.com 2010. 04 Rev.2 Forklift Trucks Environmentally - Friendly 15L/18L/20LA-7 15G/18G/20GA-7 Some of the photos may include optional equipment. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. Dimension Specification h4 h3 S h1 h5 h7 h10 h2 I6 m1 m2 c b12 100 b13 wa Ast 100 b1 e Q I x y I1 I2 h3 S h1 h5 h7 h10 h2 I6 m1 m2 c b12 100 b13 wa Ast 100 b1 e Q I x y I1 I2 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 Manufacturer Manufacturer’s type designation Drive: electric (battery or mains),diesel,petrol,fuel gas,manual Type of operation:hand,pedestrian,standing,seated,order-picker Load capacity / rated load kg Load center distance c mm Load distance, center of drive axle to fork x mm Wheelbase y mm Hyundai 15L-7 / 15G-7 FUEL GAS / PETROL seated 1,500 500 394 1,410 Hyundai 18L-7 / 18G-7 FUEL GAS / PETROL seated 1,750 500 394 1,410 Hyundai 20LA-7 / 20GA-7 FUEL GAS / PETROL seated 2,000 500 399 1,410 Wheels, Chassis Tires:solid rubber, superelastic, pneumatic, polyurethane Tires size, front(ø x width) Tires size, rear(ø x width) Wheels, number front x rear (x=driven wheels) Track width, front mm Track width, rear mm Pneumatic 6.50-10-12PR 5.00-8-10PR 2 x 2 890 910 Pneumatic 6.50-10-12PR 5.00-8-10PR 2 x 2 890 910 Pneumatic 6.50-10-12PR 5.00-8-10PR 2 x 2 890 910 3.1 3.2 3.3 3.5 3.6 3.7 Basic Dimensions Mast / fork carriage tilt forward / backward (á / â) degrees Lowered mast height h1 mm Free lift h2 mm Lift height h3 mm Extended mast height h4 mm Overhead load guard (cab) height h5 mm Seat height / standing height h7 mm Coupling height h10 mm Overall length l1 mm Length to face of forks l2 mm Overall width b1 mm Fork dimensions(hook type) l / w / t mm Fork carriage ISO 2328, class / type A,B Fork-carriage width b12 mm Ground clearance, loaded, under mast m1 mm Ground clearance, centre of wheelbase m2 mm Aisle width for pallets 1,000x1,200 crossways (LxW) Ast mm Aisle width for pallets 800x1,200 lengthways (WxL) Ast mm Turning radius Wa mm Smallest pivot point distance b13 mm 6 / 10 2,155 145 3,325 4,332 2,110 1,040 262 3,133 2,233 1,070 900 x 100 x 35 II / A 980 120 145 3,579 3,779 1,985 586 6 / 10 2,155 145 3,325 4,332 2,110 1,040 261 3,163 2,263 1,070 900 x 100 x 35 II / A 980 120 145 3,609 3,809 2,013 586 6 / 10 2,155 150 3,325 4,332 2,110 1,040 258 3,203 2,303 1,070 900 x 100 x 40 II / A 980 120 145 3,649 3,849 2,050 586 4.1 4.2 4.3 4.4 4.5 4.7 4.8 4.12 4.19 4.20 4.21 4.22 4.23 4.24 4.31 4.32 4.33 4.34 4.35 4.36 Performance Data Travel speed, unloaded km/h Lift speed, loaded/unloaded mm/s Lowering speed, loaded/unloaded mm/s Drawbar pull, loaded kg Gradient performance, loaded/unloaded % Acceleration time, loaded/unloaded(10m) sec Service brake 20.3 650 / 680 500 / 450 1,775 37 / 24 NA Foot / Wet Disc 20.3 650 / 680 500 / 450 1,786 33.1 / 21.8 NA Foot / Wet Disc 20.3 650 / 680 500 / 450 1,801 31 / 20 NA Foot / Wet Disc 5.1 5.2 5.3 5.5 5.7 5.9 5.10 Engine Engine manufacturer / type Engine power acc. to ISO 1585 kW Rated speed 1/min No. of cylinder / cubic capacity anz/cm3 Fuel consumption acc. To VDI cycle liter/h HMC BETA 37 2,450 4 / 1,975 NA HMC BETA 37 2,450 4 / 1,975 NA HMC BETA 37 2,450 4 / 1,975 NA 6.1 6.2 6.3 6.4 6.5 Other Details Type of drive control Operating pressure(System / Attach) bar Oil volume liter Sound level at driver’s ear according to DIN 12 053 db(A) Power Shift 195 / 155 30 103 Power Shift 195 / 155 30 103 Power Shift 195 / 155 30 103 8.2 8.3 8.4 8.1 Identification 2,818 3,726 1,276 2,992 4,092 1,234 3,139 4,462 1,188 Weights Service weight kg Axle loading, loaded front/rear kg Axle loading, unloaded front/rear kg 2.1 2.2 2.3
Open the catalog to page 102 03 FORKLIFT Model Hyundai introduces a new line of 7 series LPG / Gasoline forklift trucks. Excellent power and performance make your business more profitable. New criteria of Forklift Trucks Some of the photos may include optional equipment.
Open the catalog to page 204 Fast and stable performance Being able to quickly raise and lower the mast, as well as tilt it forward and backward, provides the best operational c o n d i t i o n s d u r i n g unloading. When the truck is fully loaded, mast l o w e r i n g speed i s carefully controlled to ensure safety by the down control valve. The latest large-capacity hydraulic system reacts quickly during operation, and a low-noise control valve increases both efficiency and durability. State-of-the-art hydraulic system Powerful Engine HMC BETA Engine Market approved quality of HMC BETA engine ensures...
Open the catalog to page 307 Adjustable steering wheel Steering wheel with horn button can be adjusted by a lever on the right-hand side for the most comfortable operator position. Easy and safe shift lever A single lever on the left side of the steering column gives the operator fast, easy control of direction. The engine can be started in case of neutral position of this lever. Multi-function switch lever Multi-functional switch lever gives easy access to lights and horn. Quick response of operating control levers Only minimal operator’s effort is required for precise, safe and productive control. Ergonomically...
Open the catalog to page 409 Expansion bellows The expansion bellows absorbs vibration and reduces noise generated from the exhaust gas system and also extends the life cycle of exhaust gas system. Bright, protected headlights Bright, protected headlights are positioned for exceptional visibility. Improvement in maintenance of electric parts Var ious elect r ic par t s ar e centralized in dash board resulting in improve-ment in maintenace 08 Strong overhead guard The safety overhead guard meets EEC and ANSI regulations and protects the operator during hazardous jobs. Ground clearance The engine and transmission are...
