Catalog excerpts

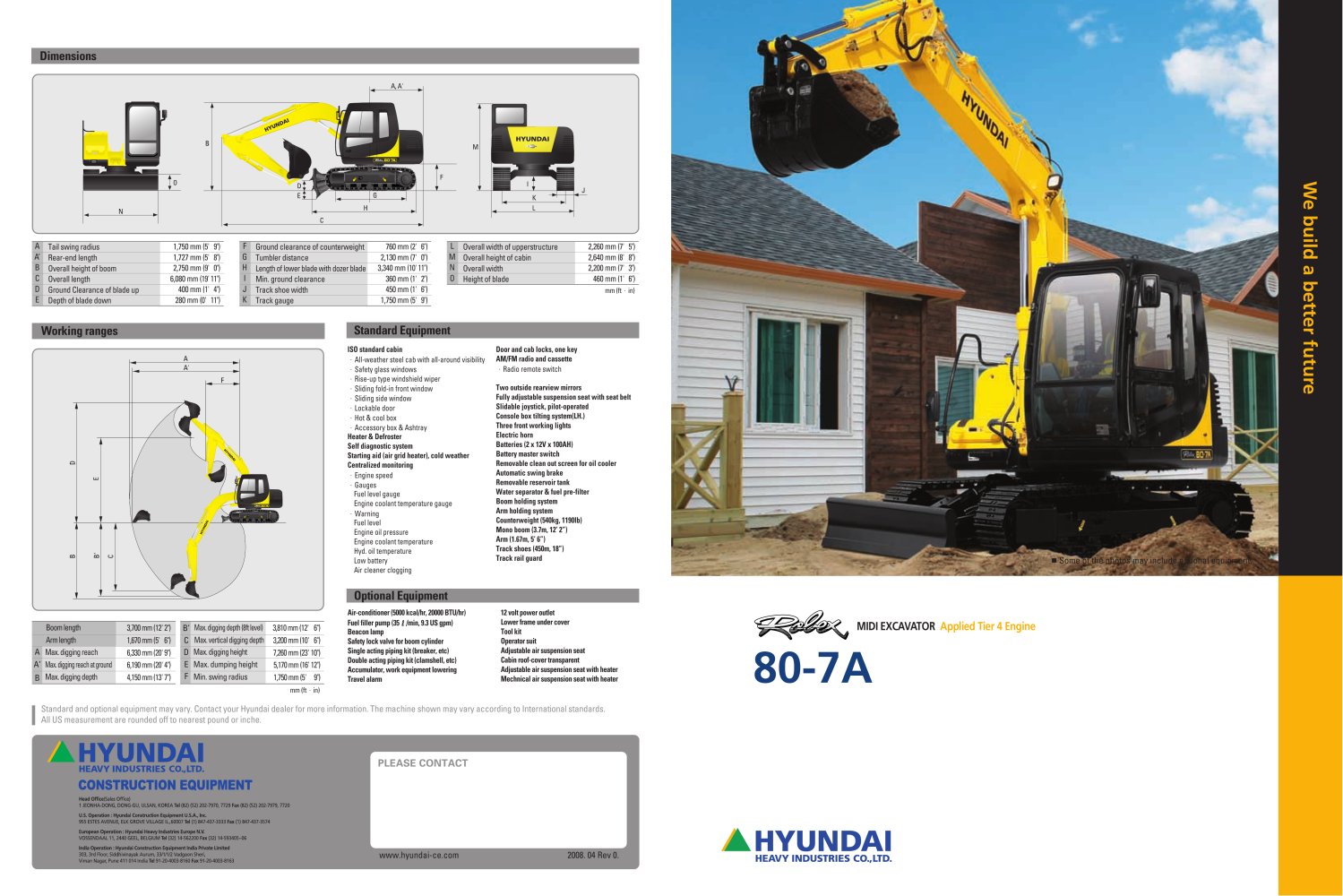

Working ranges Standard Equipment Dimensions Optional Equipment PLEASE CONTACT www.hyundai-ce.com 2008. 04 Rev 0. Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement are rounded off to nearest pound or inche. A A’ B Max. digging reach Max. digging reach at ground Max. digging depth Boom length Arm length 3,700 mm (12' 2") 1,670 mm (5' 6") 6,330 mm (20' 9") 6,190 mm (20' 4") 4,150 mm (13' 7") ISO standard cabin ..All-weather steel cab with all-around visibility ..Safety glass windows ..Rise-up type windshield wiper ..Sliding fold-in front window ..Sliding side window ..Lockable door ..Hot & cool box ..Accessory box & Ashtray Heater & Defroster Self diagnostic system Starting aid (air grid heater), cold weather Centralized monitoring ..Engine speed ..Gauges Fuel level gauge Engine coolant temperature gauge ..Warning Fuel level Engine oil pressure Engine coolant temperature Hyd. oil temperature Low battery Air cleaner clogging Door and cab locks, one key AM/FM radio and cassette ..Radio remote switch Two outside rearview mirrors Fully adjustable suspension seat with seat belt Slidable joystick, pilot-operated Console box tilting system(LH.) Three front working lights Electric horn Batteries (2 x 12V x 100AH) Battery master switch Removable clean out screen for oil cooler Automatic swing brake Removable reservoir tank Water separator & fuel pre-filter Boom holding system Arm holding system Counterweight (540kg, 1190lb) Mono boom (3.7m, 12’ 2”) Arm (1.67m, 5’ 6”) Track shoes (450m, 18”) Track rail guard Air-conditioner (5000 kcal/hr, 20000 BTU/hr) Fuel filler pump (35../min, 9.3 US gpm) Beacon lamp Safety lock valve for boom cylinder Single acting piping kit (breaker, etc) Double acting piping kit (clamshell, etc) Accumulator, work equipment lowering Travel alarm 12 volt power outlet Lower frame under cover Tool kit Operator suit Adjustable air suspension seat Cabin roof-cover transparent Adjustable air suspension seat with heater Mechnical air suspension seat with heater B’ C D E F Max. digging height Max. dumping height Min. swing radius Max. digging depth (8ft level) Max. vertical digging depth 3,810 mm (12' 6") 3,200 mm (10' 6") 7,260 mm (23' 10") 5,170 mm (16' 12") 1,750 mm (5' 9") A A’ B C D E 1,750 mm (5' 9") 1,727 mm (5' 8") 2,750 mm (9' 0") 6,080 mm (19' 11") 400 mm (1' 4") 280 mm (0' 11") Tail swing radius Rear-end length Overall height of boom Overall length Ground Clearance of blade up Depth of blade down L M N O 2,260 mm (7' 5") 2,640 mm (8' 8") 2,200 mm (7' 3") 460 mm (1' 6") Overall width of upperstructure Overall height of cabin Overall width Height of blade F G H I J K 760 mm (2' 6") 2,130 mm (7' 0") 3,340 mm (10' 11") 360 mm (1' 2") 450 mm (1' 6") 1,750 mm (5' 9") Ground clearance of counterweight Tumbler distance Length of lower blade with dozer blade Min. ground clearance Track shoe width Track gauge mm (ft..in) mm (ft..in) .. Some of the photos may include optional equipment. MIDI EXCAVATOR Applied Tier 4 Engine 80-7A

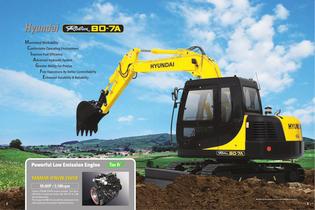

Open the catalog to page 1.. Some of the photos may include optional equipment. 2 3 Hyundai Maximized Workability Comfortable Operating Environment Improve Fuel Efficiency Advanced Hydraulic System Greater Ability For Precise Fine Operations By Better Controllability Enhanced Durability & Reliability Powerful Low Emission Engine 59.6HP / 2,100rpm Yanmar 4TNV98-ZVHYB engine provides 25.2 kgf.m (182 lbf.ft) of maximum torque with 59.6 HP at 2,100 rpm of rated power. This means the R80-7A runs with the most power in its class, giving you more power to get the job done. YANMAR 4TNV98-ZVHYB Tier IV
Open the catalog to page 2Convenient and Comfortable Space Wide Cab with Excellent Visibility The cab is roomy and ergonomically designed with low noise level and good visibility. A full view front window and large rear and side windows provide excellent visibility in all directions. Highly Sensitive Joystick and Easy Entrance New joystick grips for precise control have been equipped with double switches. (Left: Power boost / One touch deceleration, Right: Horn/Optional) Storage box and Cup Holder An additional storage box and cup holder are located behind operator’s seat, and it keeps food and beverages cool or...

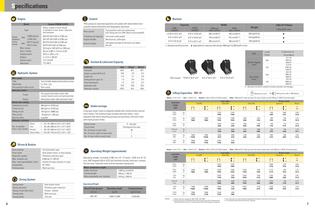

Open the catalog to page 36 7 Specifications Engine Water cooled, 4 cycle Diesel 4 cylinders in line, direct injection, low emission 59.6 HP (44.4 kW) at 2100 rpm 58.2 HP (43.4 kW) at 2100 rpm 60.4 PS (44.4 kW) at 2100 rpm 59 PS (43.4 kW) at 2100 rpm 25.2 kgf.m (182 lbf.ft) at 1350 rpm 98 mm (3.86") x 110 mm (4.33") 3319 cc (202 cu in) 2 x 12 V x 100 AH 12 V-3.0 kW 12 V-80 A Type Rated flywheel horse power Max. torque Bore x stroke Displacement Battery Starter motor Alternator J1995 (gross) J1349 (net) 6271/1 (gross) 6271/1 (net) SAE DIN Model Yanmar 4TNV98-ZVHYB Swing System Swing motor Swing reduction Swing...
