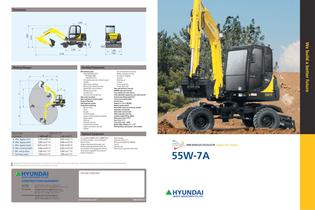

Dimensions 986 2,610 2,850 1,650 290 2,100 1,600 1,925 6,100 Working Ranges Standard Equipment A E B D C F Boom length Arm length A. Max. digging reach B. Max. digging depth C. Max. digging height D. Max. dumping height E. Min. swing radius F. Tail swing radius 3,000 mm(9' 10") ※1,600 mm(5' 3") 1,900 mm(6' 3") 6,150 mm(20' 2") 6,430 mm(21' 1") 3,500 mm(11' 6") 3,800 mm(12' 6") 6,070 mm(19' 11") 6,260 mm(20' 6") 4,340 mm(14' 3") 4,530 mm(14'10") 2,350 mm( 7' 9") 2,350 mm( 7' 9") 1,650 mm( 5' 5") 1,650 mm( 5' 5") ISO standard cabin ·Cabin ROPS(ISO 3471) FOPS(ISO 3449) TOPS(ISO 12117) ·All-weather steel cab with all-around visibility ·Safety glass windows ·Rise-up type windshield wiper ·Sliding fold-in front window ·Sliding side window ·Lockable door ·Accessory box & Ash-tray Auto warm up system Auto overheat prevention system Heater & Defroster Self diagnostic system Centralized monitoring ·Service meter ·Clock ·Gauges Fuel level gauge Engine coolant temperature gauge Engine speed ·Warning Overheat warning Fuel low level warning Engine oil pressure warning ·Prefilter Hyd. oil temperature warning Battery charging warning Air cleaner clogging ·Indicate Warming up Preheat Travel speed low Travel speed high Door and cab locks, one key AM/FM radio and cassette Two outside rear view mirrors Fully adjustable suspension seat with seat belt Console box tilting system(LH.) Three front working lights Electric horn Battery (1 x 12 V x 100 AH) Battery master switch Removable clean out screen for radiator Automatic swing brake Removable reservoir tank Water separator, fuel line Counterweight (210 kg, 460 lb) Mono boom (3.0 m, 9’10”) Arm (1.6 m, 5’ 3”) Tires (12.0 x 16.5 - 12PR) Blade (1925 x 354mm, 6’ 4” x 14”) Starting Aid(air grid heater), cold weather Some of the Photo may include optional equipment. Optional Equipment Air-conditioner(4000 kcal/hr, 16000BTU/hr) Fuel filler pump(35ℓ/min, 9.2 US gpm) Beacon lamp Single acting piping kit( breaker, etc) Double acting piping kit(clamshell, etc) Accumulator, work equipment lowering 12volt power supply(DC-DC converter) Electric transducer Quick coupler Long arm (1.9m, 6’ 3”) Narrow bucket(0.07m3, 0.09yd3) Tool kit Operator suit Mechanical suspension with heater 55W-7A Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement are rounded off to nearest pound or inche. PLEASE CONTACT www.hyundai-ce.com MINI WHEELED EXCAVATOR Applied Tier 3 Engine 2008. 03 Rev 0.

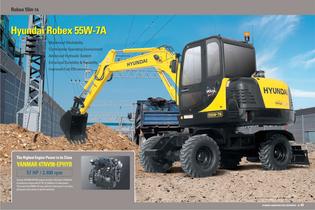

Open the catalog to page 1Robex 55W-7A Hyundai Robex 55W-7A Maximized Workability Comfortable Operating Environment Advanced Hydraulic System Enhanced Durability & Reliability Improved Fuel Efficiency The Highest Engine Power in its Class YANMAR 4TNV98-EPHYB 57 HP / 2,400 rpm Yanmar 4TNV98-EPHYB engine provides 20.5 kgf.m (148 lbf.ft) of maximum torque with 57 HP at 2,400rpm of rated power. This means the R55W-7A runs with the most power in its class, giving you more power to get the job done. Some of the Photo may include optional equipment. HYUNDAI CONSTRUCTION EQUIPMENT 02 / 03

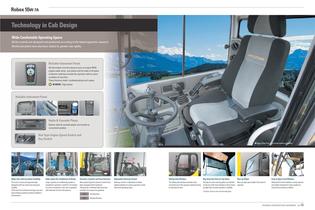

Open the catalog to page 2Robex 55W-7A Technology in Cab Design Wide Comfortable Operating Space All the controls are designed and positioned according to the latest ergonomic research. Reinforced pillars have also been added for greater cab rigidity. Reliable Instrument Panel All information from the devices such as engine RPM, engine water temp., fuel status and the state of all types of electric switches provide the operator with an exact condition of machine. These features make troubleshooting much easier. M MODE : High power Reliable Instrument Panel Radio & Cassette Player Deluxe radio & cassette player are...

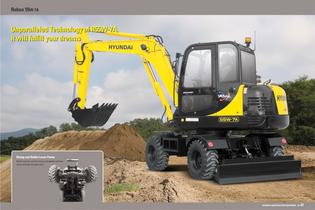

Open the catalog to page 3Robex 55W-7A Unparalleled Technology of R55W-7A. It will fulfill your dreams Strong and Stable Lower Frame Reinforced box-section frame is all welded with lowstress and high-strength steel. Some of the Photo may include optional equipment. HYUNDAI CONSTRUCTION EQUIPMENT 06 / 07
Open the catalog to page 4Robex 55W-7A Powerful and Dynamic Work Some of the Photo may include optional equipment. Exceptional Traction &Lifting Capacity Reinforced Bucket The considerable traction and lifting capacity enable all work to be done quickly. The design includes bucket link durability Reinforcements are welded to protect the and anti-wear characteristics with arm from impacts and wear. additional reinforcement plates on cutting edge section. Reinforced bucket is made with thicker steel and additional lateral plate. Reinforced Arm Gradeability Anti Restart System Easy-to-Reach Control Panels Installation...
Open the catalog to page 5Robex 55W-7A Performance and Durability Some of the Photo may include optional equipment. Arrangement Between Bucket and Blade Attachment is designed to minimize dead space between bucket and blade for efficient grading work. Powerful Dozer Blade FEM(Finite Element Method) Better Ground Clearance Steel Tube Frame Cabin Boom Cylinder Cover Applied Side Protector Large Capacity Radiator Large size blade improves work efficiency and equipment durability . Durability of structure is proven through FEM(Finite Element Method) analysis and long term durability test. Better ground clearance...
Open the catalog to page 6Robex 55W-7A Reliability and Serviceability Full open doors and master key system provide easy access for servicing. Easy to Maintain Engine Components The R55W-7A is designed with accessibility in mind. All doors, covers and hoods are built for complete open access. You’ll find that the R55W-7A offers plenty of space to complete your regular maintenance and service hassle-free. Long Life Hydraulic Filter Uses high-performance filtering materials are applied for extending the filter replacement interval. Some of the Photo may include optional equipment. Easy Change of Air Cleaner Easy to...
