Catalog excerpts

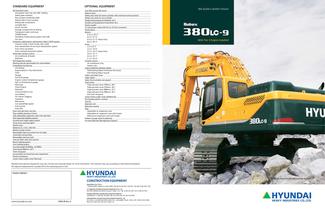

STANDARD EQUIPMENT optional EQUIPMENT ISO Standard cabin All-weather steel cab with 360O visibility Safety glass windows Rise-up type windshield wiper Sliding fold-in front window Sliding side window(LH) Lockable door Hot & cool box Storage compartment & Ashtray Transparent cabin roof-cover CD/MP3 Player Handsfree mobile phone system with USB Sun visor Computer aided power optimization (New CAPO) system 3-power mode, 3-work mode, user mode Auto deceleration & one-touch deceleration system Auto warm-up system Auto overheat prevention system Automatic climate control Air conditioner & heater Defroster Self-diagnostics system Starting Aid (air grid heater) for cold weather Centralized monitoring LCD display Engine speed or Trip meter/Accel. Clock Gauges Fuel level gauge Engine coolant temperature gauge Hyd. oil temperature gauge Warnings Check Engine Overload Communication error Low battery Air cleaner clogging Indicators Max power Low speed/High speed Fuel warmer Auto idle Door and cab locks, one key Two outside rearview mirrors Fully adjustable suspension seat with seat belt Pilot-operated slidable joystick Console box height adjust system Three front working lights Electric horn atteries (2 x 12V x 160 AH) B Battery master switch Removable clean-out screen for oil cooler Automatic swing brake Removable reservoir tank Fuel pre-filter with fuel warmer Boom holding system Arm holding system Counterweight (6,500kg, 14,330lb) Track shoes (600mm, 24”) Track rail guard Accumulator for lowering work equipment Electric transducer Lower frame under cover (Normal) Fuel filler pump (50 L/min) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single-acting piping kit (breaker, etc.) Double-acting piping kit (clamshell, etc.) Quick coupler 12 volt power outlet (24V DC to 12V DC converter) Travel alarm Booms 6.15 m, 20’ 2” 6.5 m, 21’ 4” 6.5 m, 21’ 4” Heavy Duty 8.6 m, 28’ 3” Arms 2.5 m, 8’ 2” 3.2 m, 10’ 6” 3.2 m, 10’ 6” Heavy Duty 3.9 m, 12’ 1” 4.3 m, 14’ 1” 5.1 m, 16’ 9” Climate control Air conditioner only Heater only Cabin FOPS/FOG (ISO/DIS 10262) FOPS (Falling Object Protective Structure) FOG (Falling Object Guard) Cabin roof-steel cover Cabin lights Cabin front window rain guard Track shoes Triple grousers shoe (700mm, 28”) Triple grousers shoe (750mm, 30”) Triple grousers shoe (800mm, 32”) Triple grousers shoe (900mm, 36”) Full track rail guard Lower frame under cover (Additional) Pre-heating system, coolant Tool kit Operator suit Rearview camera Seat Adjustable air suspension seat Adjustable air suspension seat with heater Mechanical suspension seat with heater Pattern change valve (2 patterns) Hi-mate (Remote Management System) We build a better future With Tier 3 Engine installed Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine may vary according to International standards. All imperial measurements rounded off to the nearest pound or inch. PLEASE CONTACT *Photo may include optional equipment. www.hyundai-ce.com 2009.08 Rev 0
Open the catalog to page 1Pride at Work Hyundai Heavy Industries strives to build state-of-the art earthmoving equipment to give every operator maximum performance, more precision, versatile machine preferences, and proven quality. Take pride in your work with a Hyundai! Machine Walk-Around Undercarriage Sealed track chain (urethane seals) / Standard track rail guard / Comfortable bolt-on steps Large upper roller cut-outs for debris clean-out / Tapered side frames for debris clean-out / Grease-type track tensioner Engine Technology Proven / reliable, fuel efficient Cummins Tier III QSC engine Electronically...

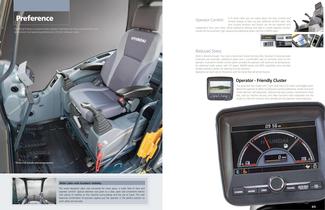

Open the catalog to page 2Preference In 9 series cabin you can easily adjust the seat, console and armrest settings to best suit your preferred comfort level. Seat and console position and height can be set together and independent from each other. Other preference settings that add to overall operator comfort include the full automatic high capacity airconditioning system and the CD/MP3 radio. Operator Comfort Operating 9 series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs. Reduced Stress Work is stressful enough. Your work...
Open the catalog to page 3Precision Innovative hydraulic system technologies make the 9 series excavator fast, smooth and easy to control. Computer Aided Power The engine horsepower and hydraulic horsepower together in unison through the advanced CAPO(Computer Aided Power Optimization) system, flow for the job at hand. Operator can set their own preferences for boom or swing priority, power mode selection and optional work tools at the touch of a button. The CAPO system also provides complete self diagnostic features and digital gauges for important information like hydraulic oil temperature, water temperatures and...

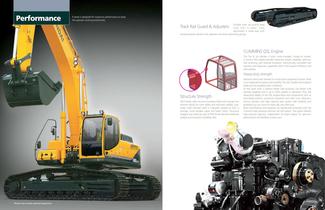

Open the catalog to page 4Performance 9 series is designed for maximum performance to keep the operator working productively. Durable track rail guards keep track links in place. Track adjustment is made easy with standard grease cylinder track adjusters and shock absorbing springs. Track Rail Guard & Adjusters CUMMINS QSL Engine The Tier III, six cylinder, 4 cycle, turbo-charged, charge air cooled, Cummins QSL engine provides maximum power, reliability, optimum fuel economy, and reduced emissions. Electronically controlled fuel injection and diagnostic capabilities add to the engines efficiency and serviceability....

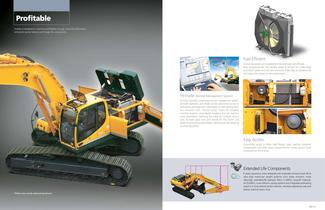

Open the catalog to page 5Profitable 9 series is designed to maximize profitability through improved efficiencies, enhanced service features and longer life components. Fuel Efficient 9 series excavators are engineered to be extremely fuel efficient. New innovations like the variable speed & remote fan, three-stage auto decel system and the new economy mode help to conserve fuel and reduce the impact on the environment. Hi-mate (Remote Management System) Hi-mate, Hyundai's proprietary remote management system, provides operators and dealer service personnel access to vital service and diagnostic information on the...
