Catalog excerpts
Dimensions ITEM (A) (B) (C) (D) (E) (F) Overall width of upper structure Overall width of cab Overall height of cab Tail swing radius Overall width Clearance under counterweight 35Z-7A 1,500mm (4'11") 1,050mm (3'5") 2,500mm (8'2") 870mm (2'10") 1,740mm (5'9") 540mm (1'9") (G) (H) (I) (J) (K) (L) ITEM Ground Clearance Tumbler distance Track length Track gauge Track shoe width Overall length 35Z-7A 290mm (11") 1,700mm (5'7") 2,130mm (6'12") 1,440mm (4'9") 300mm (12") 4,790mm (15'9") Working Range ITEM Boom length 2,500mm (8'2") Arm length 1,300mm (4'3") (A) Max. digging reach 5,360mm (17'7") (A') Max. digging reach at ground 5,240mm (17'2") (B) Max. digging depth 3,150mm (10'4") (C) Max. vertical wall digging depth (D) Max. digging height 4,830mm (15'10") (E) Max. dumping height 3,450mm (11'4") (F) Min. swing radius Some photos may include optional equipment. 2,190mm (7'2") MINI EXCAVATOR Applied Tier 4 Engine 2,350mm (7'9") 35Z-7A Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement are rounded off to nearest pound or inch. PLEASE CONTACT www.hyundai-ce.com 2008. 05 Rev 0.
Open the catalog to page 1Unparalleled Technology, Outstanding Performance! This new mini excavator provides a combination of proven power and unequaled working performance. Some photos may include optional equipment. The Highest Engine Power in its Class Tier IV Interim YANMAR 3TNV88 - BSHYB 27.3 HP / 2,200 rpm 2 Yanmar 3TNV88-BSHYB engine provides 10.9 kg.m/rpm of maximum torque with 27.3 HP at 2,200rpm of rated power. This means the R35Z-7A runs with the most power in its class, giving you more power to get the job done. 3
Open the catalog to page 2Cab Design Technology Wide, Comfortable Operating Space All controls are ergonomically engineered for maximum operator comfort and productivity. Reinforced pillars have been added for greater cab strength. Wide Canopy with Excellent Visibility Wide canopy equipped with high quality suspension seat designed to absorb shock and reduce operator fatigue. Some photos may include optional equipment. Convenient, Comfortable Work Space Safety Lock System Mechanical Suspension Seat Safety lock system is designed to Attractive, adjustable seat engineered prevent exiting the cab with live for comfort,...
Open the catalog to page 3Powerful, Dynamic Performance ! Enhanced performance! Boom Swing(Canopy Type) 75 O 50 O The R35Z-7A is designed for efficient work in congested residential and urban areas. The offset boom is designed with a 125 degree operating range. Some photos may include optional equipment. Powerful, Dynamic Performance! Reinforced Bucket Powerful Dozer Blade Bucket design is improved with new anti-wear features, additional reinforcements at the sides and bucket lip combined with more heavy duty bucket linkage. Large dozer blade provides added Standard boom cylinder cover Standard dozer cylinder cover...

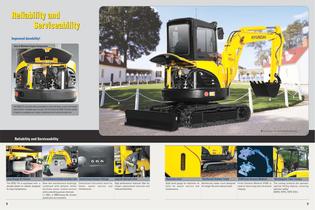

Open the catalog to page 4Reliability and Serviceability Improved durability! Easy to Maintain Engine Components The R35Z-7A was built with accessibility in mind. All doors, covers and hoods were built for complete open access. You’ll find that the R35Z-7A offers plenty of space to complete your regular maintenance and service hassle-free. Some photos may include optional equipment. Reliability and Serviceability Easy Change Air Cleaner Low maintenance bushings and polymer shims Centralized Grease Fittings Long Life Hydraulic Filter The R35Z-7A is equipped with a New low maintenance bushings Centralized lubrication...
Open the catalog to page 5Specifications Engine Model Control.2 Implement Levers Yanmar 3TNV88-BSHYB 4 Cycle. In line, water cooled Diesel Type Rated flywheel horse power J1995 (gross) SAE J1349 (net) 627 1/1 (gross) DIN 627 1/1 (net) Max. torque Bore x stroke Piston displacement Batteries Starting motor Alternator Arm Roll-Out 27.3 HP ( 20.3kW) at 2,200rpm 26.5 HP ( 19.8kW) at 2,200rpm 27.7 HP ( 20.3kW) at 2,200rpm 26.9 HP ( 19.8kW) at 2,200rpm 10.9 kgf.m at 1,200 rpm 88mm x 90mm 1,642cc 12V - 80AH 12V - 2.3kW 12V - 55A Hydraulic System Main pumps Type Rated flow Sub-pump for pilot circuit Hydraulic motors Travel...
