R35Z-7
8Pages

{{requestButtons}}

Catalog excerpts

R35Z-7 - 1

NEW 7 SERIES HYUNDAI MINI EXCAVATOR Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement are rounded off to nearest pound or inche. PLEASE CONTACT www.hyundai-ce.com 2007. 07 Rev 0. Some of the photos may include optional equipment.

Open the catalog to page 1

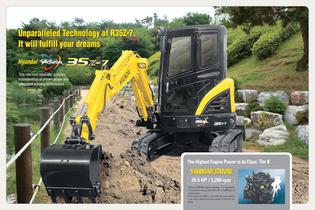

R35Z-7 - 2

Unparalleled Technology of R35Z-7. It will fulfill your dreams Hyundai This new mini excavator provides a combination of proven power and unequaled working performance. Some of the photos may include optional equipment. The Highest Engine Power in its Class Tier II YANMAR 3TNV88 26.5 HP / 2,200 rpm 2 Yanmar 3TNV88 engine provides 11.1 kg.m/rpm of maximum torque with 26.5 HP at 2,200rpm of rated power. This means the R35Z-7 runs with the most power in its class, giving you more power to get the job done. 3 3

Open the catalog to page 2
R35Z-7 - 3

Technology in Cab Design Wide, Comfortable Operating Space All the controls are designed and positioned according to the latest ergonomic research. Reinforced pillars have also been added for greater cab rigidity. Wide Canopy with Excellent Visibility Wide enough canopy and high quality suspension seat by absorbing digging shock prevent operator tiredness. Some of the photos may include optional equipment. Convenient and Comfortable Space Safety Lock System Mechanical Suspension Seat Safety system works if safety lock An attractive and adjustable seat, lever is released upwards. based on a...

Open the catalog to page 3

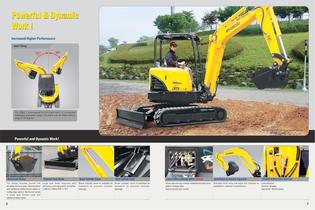

R35Z-7 - 4

Powerful & Dynamic Work ! Increased Higher Performance Boom Swing 75 O 50 O The R35Z-7 is designed for efficient work in congested residential and urban areas. The boom can be offset within a range of 125 degrees. Some of the photos may include optional equipment. Powerful and Dynamic Work! Reinforced Bucket Powerful Dozer Blade Boom Cylinder Cover Dozer Cylinder Cover The design includes bucket link Large size blade improves work Boom cylinder cover is installed as Dozer cylinder cover is installed as durability and anti-wear characteristics efficiency and equipment durability . standard...

Open the catalog to page 4
R35Z-7 - 5

Hyundai 8 Some of the photos may include optional equipment. 9

Open the catalog to page 5

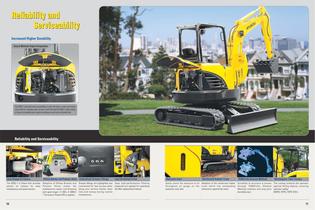

R35Z-7 - 6

Reliability and Serviceability Increased Higher Durability Easy to Maintain Engine Components The R35Z-7 was built with accessibility in mind. All doors, covers and hoods were built for complete open access. You’ll find that the R35Z-7 offers plenty of space to complete your regular maintenance and service hassle-free. Some of the photos may include optional equipment. Reliability and Serviceability Easy Change Air Cleaner Oilless-Bushes and Polymer shims Centralized Grease Fittings The R35Z-7 is fitted with durable Adoption of Oilless-Bushes and plastic air cleaner for easy Polymer Shims...

Open the catalog to page 6
R35Z-7 - 7

Specifications Engine Model Operator’s Cab Yanmar 3TNV88 4 Cycle. In line, water cooled Diesel Type Rated flywheel horse power J1995 (gross) SAE J1349 (net) 627 1/1 (gross) DIN 627 1/1 (net) Max. torque Bore x stroke Piston displacement Batteries Starting motor Alternator Noise Levels (dynamic value) LwA LpA 27.3 HP ( 20.3kW) at 2,200rpm 26.5 HP ( 19.8kW) at 2,200rpm 27.7 HP ( 20.3kW) at 2,200rpm 26.9 HP ( 19.8kW) at 2,200rpm 10.8kgf.m at 1,200 rpm Ø88mm x 90mm 1,642cc 12V - 80AH 12V - 2.3kW 12V - 55A Swing System 94dB 75dB Forward Swing Right Hydraulic System Main pumps Type Rated flow...

Open the catalog to page 7
R35Z-7 - 8

Dimensions & Working ranges Lifting Capacities Dimensions Lifting capacities R35Z-7 D A •Boom : 2.50m (8’ 2”) •Arm : 1.30 m (4’ 3”) •Bucket : 0.11 m3 SAE heaped •Shoe : 300mm(12”) rubber track and 420kg (925 lb) counterweight Load radius Load point 2.0 m(6.6 ft) 3.0 m(9.8 ft) 4.0 m(13.1 ft) 1.0 m(3.3 ft) height m(ft) B G F C 4.0 m 13.1 ft 3.0 m 9.8 ft 2.0 m 6.6 ft 1.0 m 3.3 ft Ground Line -1.0 m -3.3 ft -2.0 m -6.6 ft K H I J E L (A) (B) (C) (D) (E) (F) (G) (H) (I) (J) (K) (L) ITEM Overall width of upper structure Overall width of cab Overall height of cab Tail swing radius Overall width...

Open the catalog to page 8
