Catalog excerpts

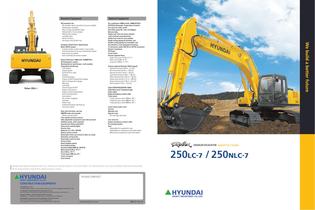

Standard Equipment Optional Equipment ■ All-weather steel cab with all-around visibility ■ Safety glass windows ■ Rise-up type windshield wiper ■ Sliding fold-in frontwindow ■ Sliding side window Computer Aided Power Optimization ■ 2-power mode, 3-work mode, 2-user mode ■ Auto deceleration & one touch deceleration system ■ Auto warm up system ■ Auto overheat prevention system Self diagnostic system Starting Aid (air grid heater), cold weather Centralized monitoring Engine speed Clock & Error code Fuel level gauge Engine coolant temperature gauge Fuel level Engine coolant temperature Preheat & Engine warming-up AM/FM radio and cassette ■ Radio remote switch Two outside rearview mirrors Fully adjustable suspension seat with seat belt Slidable joystic, pilot-operated Console boxtilting system(LH.) Three front working lights Electric horn Battery master switch Removable clean out screen for Hyd. oil cooler Automatic swing brake Removable reservoir tank Fuel pre-filter Boom holding system Track rail guard Fuel warmer Air-conditioner (5000 kcal/hr, 20000 BTU/hr) FATC(Full Automatic Temperature Control) Sun visor for cabin inside Fuel filler pump (35{/min, 9.5 USgpm) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single acting piping kit (breaker, etc) Double acting piping kit (cramshell, etc) Accumulator, work equipment lowering 12 volt power outlet (24V DC to 12V DC converter) Electric transducer Travel alarm Various optional Arms Various optional Buckets (SAE heaped) Light duty bucket (1.50 m3,1.96 yd3) ■Heavy duty bucket (1.07 m3,1.40 yd3) ■Heavy duty bucket (1.27 m3,1.66 yd3) ■ Heavy duty bucket (1.46 m3,1.91 yd3) Cabin Roof-cover Transparent type Cabin lights Engine emergency control cable Track shoes ■ Triple grousers shoe (700mm, 28") ■ Triple grousers shoe (800mm, 32") ■ Triple grousers shoe (900mm, 36") Lower frame undercover Operator suit Special cowl ■Air vent type side door Engine emergency control cable Pre-heating system ■Adjustable air suspension seat ■Adjustable air suspension seatwith heater ■ Mechanical suspension seat with heater Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement rounded off to nearest pounds or inches. HEAVY INDUSTRIES CO.,LTD. CONSTRUCTION EQUIPMENT Head Office(Sales Office) U.5. Operation: Hyundai Construction Equipment U.5.A* Inc. 955 ESTES AVENUE, ELK GROVE VILLAGE IL.6OO07 Tel (1) 847-437-3333 Fax (1) 847-437-3574 European Operation: Hyundai Heavy Industries Europe N.V. India Operation: Hyundai Construction Equipment India Private Limited J,3rd Floor, Siddhivinayak Aurum, 33/1/1/2 Vadgaon Sheri, HEAVY INDUSTRIES CO.,LTD.

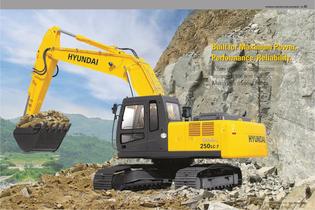

Open the catalog to page 1HYUNDAI CONSTRUCTION EQUIPMENT 02 / 03 Built for Maximum Power, Performance, Reliability. A new chapter in construction equipment has now begun. Making the dream a reality. Some of the Photo may include optional equipment. NEW 7 SERIES Robex 250LC-7
Open the catalog to page 2Operator's Comfort is Foremost. Wide Cab Exceeds Industry Standard Even more visibility than before, for safer, more efficient operating Excellent Ventilation ■ Ventilation has been improved by the addition of the larger fresh air intake and by providing additional air flow throughout the cab. ■ Sliding front and side windows provide improved ventilation. ■ A large sunroof offers upward visibility and additional ventilation Comfortable Operator Environment ■ The control levers and seat can be adjusted to provide maximum operator co ■ The seat is fully adjustable for optimum operating...
Open the catalog to page 3perating Environment Wide Cab with Excellent Visibility designed with low noise level and good Afull view front window and large rear and side windows provide excellent Highly Sensitive Joystick and Easy Entrance New joystick grips for precise control have been equiped with double switches. (Left: Power boost/ One touch deceleration. Right: Horn/Optional) Easy-to-Reach Control Panels Switches and other essential controls are located near the operator. This helps keep operator movement to a minimum, enhancing control with less operator fatigue. The best working conditions in a pleasant...

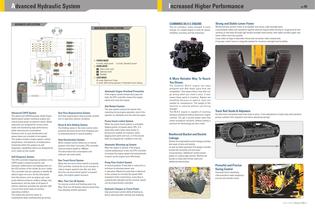

Open the catalog to page 4Advanced Hydraulic System Increased Higher Performance 08 / CUMMINS B5.9-C ENGINE ADVANCED CAPO SYSTEM NEW MODE CONTROL SYSTEM Strong and Stable Lower Frame The six cylinders, turbo-charged, 4 cycle, charger air cooled engine is built for power, reliability, economy and low emissions. 09 Reinforced box-section frame is all welded, low-stress, high-strength steel. It guarantees safety and resistance against external impact when driving on rough ground and working on wet sites through high tensile strength steel panels, with highly durable upper and lower rollers and track guards. Long...

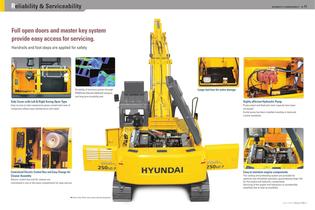

Open the catalog to page 5Reliability & Serviceability RELIABILITY & SERVICEABILITY 10 / 11 Full open doors and master key system provide easy access for servicing. Handrails and foot steps are applied for safety Durability of structure proven through FEM(Finite Element Method) analysis and long term durability test. Large tool box for extra storage Side Cover with Left & Right Swing Open Type Highly efficient Hydraulic Pump Easy access to vital components gives unrestricted view of component allows easy maintenance and repair. Pump output and Hydraulic tank capacity have been increased. A pilot pump has been...

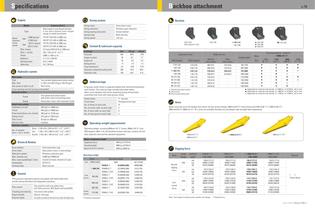

Open the catalog to page 6Specifications Backhoe attachment Engine Swing system Model Type Rated flywheel horse power Cummins B5.9-C Watercooled, 4 cycle Diesel,6-Cylinders in line, direct injection,Turbo charged, charger air cooled, low emission J1995 (gross) J1349 (net) 6271/1 (gross) DIN 6271/1 (net) Max. torque Bore x stroke Piston Batteries Starting motor Alternator SAE 173 HP (129 kW) at 2000 rpm 163 HP (121 kW) at 2000 rpm 175 PS (129 kW) at 2000 rpm 165 PS (121 kW) at 2000 rpm 72.2 kgf.m(522 lbf.ft) at 1500 rpm 102 x 120 mm (4” x 4.7”) 5,880 cc (359 cu in) 2 x 12 V x 100 AH 24 V, 4.5kW 24 V, 50 Amp Hydraulic...
