Standard Equipment ISO standard cab . All-weather steel cab with all-around visibility . Safety glass windows . Raise-up type windshield wiper . Sliding fold-in front window . Sliding side window . Lockable door . Hot & cool box . Accessory box & Ashtray Computer Aided Power Optimization(New CAPO) system . 2-power mode, 3-work mode, 2-user mode . Auto deceleration & one touch deceleration system . Auto warm up system . Auto overheat prevention system Robex 180LC-7 Heater & Defroster Self diagnostic system Starting aid, cold weather Centralized monitoring . LCD display Engine speed Clock & Error code . Gauges Fuel level gauge Engine coolant temperature gauge Hyd. oil temperature gauge . Warning Engine coolant & Fuel level Check Engine & CPU Engine oil pressure Engine coolant temperature Hyd. oil temperature Low battery Air cleaner clogging . Indicator Power max. Preheat & engine warming-up One touch decel Door and cab locks, one key AM/FM radio and cassette . Radio remote switch Two outside rearview mirrors Fully adjustable suspension seat with seat belt Slidable joystick, pilot-operated Console box tilting system (LH.) Three front working light Electric horn Batteries (2X12 VX100 AH) Battery master switch Automatic swing brake Removable reservoir tank Water separator, fuel line Boom holding system Arm holding system Counterweight (2950 kg, 6500 lb) Mono boom (5.1 m, 16’ 9”) Arm (2.6 m, 8’ 6”) Track shoes (600 mm, 24”) Track rail guard Fuel warmer Optional Equipment Air-conditioner (5000 kcal/hr, 20000 BTU/hr) Sun visor for cabin inside Fuel filler pump (35 /min, 9.5 USgpm) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single acting piping kit (breaker, etc) Double acting piping kit (clamshell, etc) Accumulator, work equipment lowering 12 volt power supply (DC-DC converter) Electric. transducer Travel alarm CD Player Various optional Boom . Hyd. adjustable boom (5.1m, 16’ 9”) Various optional Arms . Short arm (2.2m, 7’ 3”) . Long arm (3.10m, 10’ 2”) Various optional Buckets (SAE heaped) . Standard bucket (0.76m3, 0.99yd3) . Narrow bucket (0.39m3, 0.51yd3) . Narrow bucket (0.50m3, 0.44yd3) . Narrow bucket (0.64m3, 0.55yd3) . Light duty bucket (0.89m3, 1.16yd3) . Light duty bucket (1.05m3, 1.37yd3) . Heavy duty bucket(0.69m3, 0.9yd3) Cabin lights Cabin FOPS/FOG(ISO/DIS 10262) Cabin Roof-cover Transparent Track shoes . Triple grousers shoe (500mm, 20”) . Triple grousers shoe (700mm, 28”) . Triple grousers shoe (800mm, 32”) Lower frame under cover Pre heating system Tool kit Operator suit Special cowl . Air vent type side door Emergency engine control cable Some of the Photo may include optional equipment. CRAWLER EXCAVATOR Applied Tier 2 Engine 180LC-7 / 180LCD-7 Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement rounded off to nearest pounds or inches. PLEASE CONTACT www.hyundai-ce.com 2008. 05 Rev.04

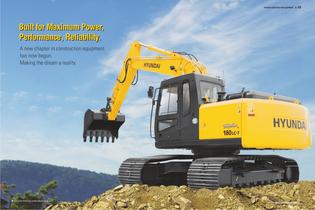

Open the catalog to page 1HYUNDAI CONSTRUCTION EQUIPMENT 02 / 03 Built for Maximum Power, Performance, Reliability. A new chapter in construction equipment has now begun. Making the dream a reality. Some of the Photo may include optional equipment. NEW 7 SERIES Robex 180LC-7

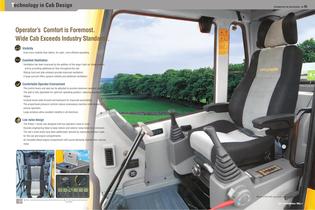

Open the catalog to page 2Technology in Cab Design TECHNOLOGY IN CAB DESIGN 04 / Operator’s Comfort is Foremost. Wide Cab Exceeds Industry Standards. Visibility . Even more visibility than before, for safer, more efficient operating. Excellent Ventilation . Ventilation has been improved by the addition of the larger fresh air intake system, and by providing additional air flow throughout the cab. . Sliding front and side windows provide improved ventilation. . A large sunroof offers upward visibility and additional ventilation. Comfortable Operator Environment . The control levers and seat can be adjusted to provide...

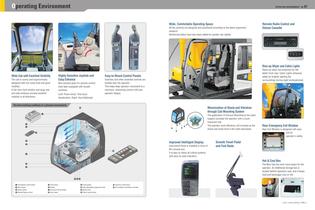

Open the catalog to page 3Operating Environment OPERATING ENVIRONMENT 06 / Wide, Comfortable Operating Space All the controls are designed and positioned according to the latest ergonomic research. Reinforced pillars have also been added for greater cab rigidity. 07 Remote Radio Control and Deluxe Cassette Rise-up Wiper and Cabin Lights Wide Cab with Excellent Visibility The cab is roomy and ergonomically designed with low noise level and good visibility. A full view front window and large rear and side windows provide excellent visibility in all directions. Highly Sensitive Joystick and Easy Entrance New joystick...

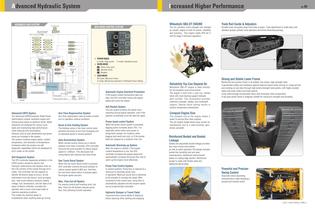

Open the catalog to page 4Advanced Hydraulic System ADVANCED CAPO SYSTEM Increased Higher Performance 08 / Mitsubishi S6S-DT ENGINE Transmission NEW MODE CONTROL SYSTEM Auto deceleration pressure switch Main control valve Track Rail Guide & Adjusters The six cylinders turbo-charged and charged air cooled, engine is built for power, reliability and economy. This engine meets EPA tier II and EU stage II emission regulation. 09 Durable track rail guides keep track links in place. Track adjustment is made easy with standard grease cylinder track adjusters and shock absorbing springs. Extra C Extra B (Dozer) Bucket Arm 1...

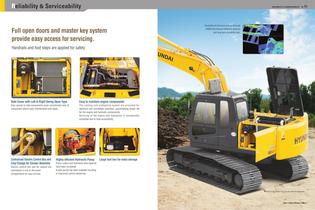

Open the catalog to page 5Reliability & Serviceability RELIABILITY & SERVICEABILITY 10 / Full open doors and master key system provide easy access for servicing. 11 Durability of structure proven through FEM(Finite Element Method) analysis and long term durability test. Handrails and foot steps are applied for safety Side Cover with Left & Right Swing Open Type Easy to maintain engine components Easy access to vital components gives unrestricted view of component allows easy maintenance and repair. The cooling and preheating system are provided for optimum and immediate operation, guaranteeing longer life for the...
Open the catalog to page 6Specifications Backhoe attachment Engine Type Rated flywheel horse power Mitsubishi S6S-DT Water cooled, 4 cycle diesel, 6-cylinders in line, direct injection turbocharged and charge air cooled J1995 (gross) J1349 (net) 6271/1 (gross) DIN 6271/1 (net) Max. torque Bore x stroke Piston Batteries Starting motor Alternator SAE 126 HP (94 kW) at 2,100 rpm 116 HP (87 kW) at 2,100 rpm 128 PS (94 kW) at 2,100 rpm 118 PS (87 kW) at 2,100 rpm 42.5 kgf.m(307 lbf.ft) at 1,500 rpm 94 x 120 mm (3.70” x 4.72”) 4,996 cc (305 in3) 2 x 12 V x 100 AH 24 V- 5.0kW 24V-50 Amp Hydraulic system Main pump Type Two...
