Hyundai Construction Equipment Americas, Inc.
HSL850-7

HSL850-7

Product catalog summary

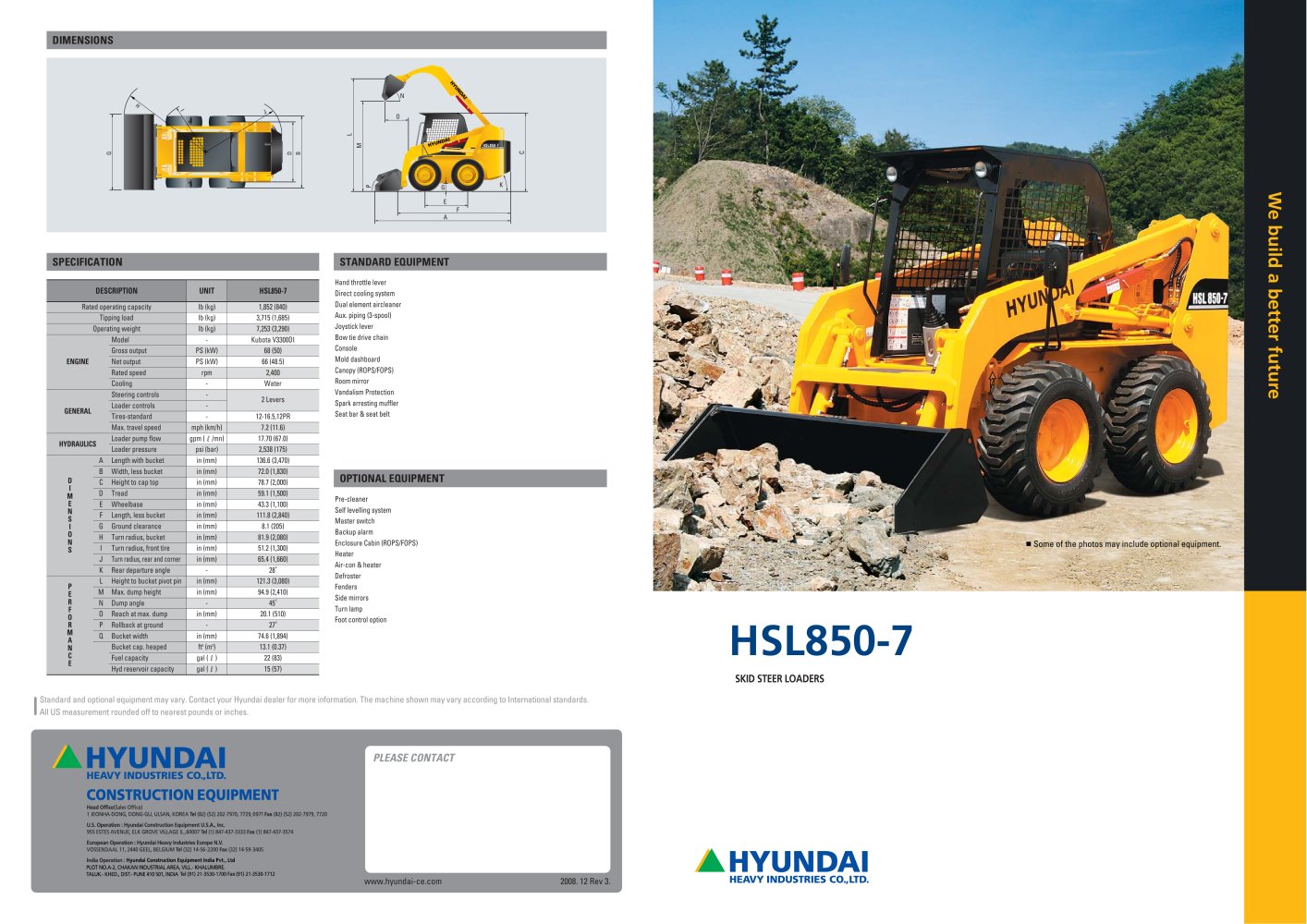

Overview: The document provides detailed specifications and features of the Hyundai HSL850-7 Skid Steer Loader, highlighting its standard and optional equipment, dimensions, performance, and maintenance features.

Specifications: The HSL850-7 is equipped with a Kubota V3300DI engine, offering a gross output of 68 PS (50 kW) and a net output of 66 PS (48.5 kW) at 2,400 rpm. It features a direct cooling system and dual element air cleaner. The loader has a rated operating capacity of 1,852 kg and a tipping load of 3,715 kg.

Dimensions: Key dimensions include a length of 136.6 inches with the bucket, a width of 72 inches without the bucket, and a height of 78.7 inches to the cab top. The wheelbase measures 43.3 inches, and the ground clearance is 8.1 inches.

Performance: The loader offers a maximum travel speed of 7.2 mph and a loader pump flow of 17.70 gpm. It includes a self-leveling system for efficient load handling, available as an optional feature.

Standard Equipment: Includes a hand throttle lever, joystick lever, bow tie drive chain, canopy (ROPS/FOPS), room mirror, vandalism protection, and a spark arresting muffler. Safety features include a seat bar and seat belt.

Optional Equipment: Options include a pre-cleaner, self-leveling system, master switch, backup alarm, enclosure cabin (ROPS/FOPS), heater, air conditioning, defroster, fenders, side mirrors, turn lamp, and foot control option.

Maintenance Features: The design allows for easy access to hydraulic and hydrostatic components, with a tilting canopy and swing-out tailgate for engine checks and maintenance. A centralized fuse box and quick attachment system enhance operational efficiency.

Safety and Comfort: The ROPS/FOPS canopy ensures operator safety and comfort, with features like a wide entrance, handles, non-slip foot steps, and a centralized dashboard for ease of use. A reliable safety device includes a safety lever to stop functions when the operator departs and a parking brake engaged by raising the safety bar.
