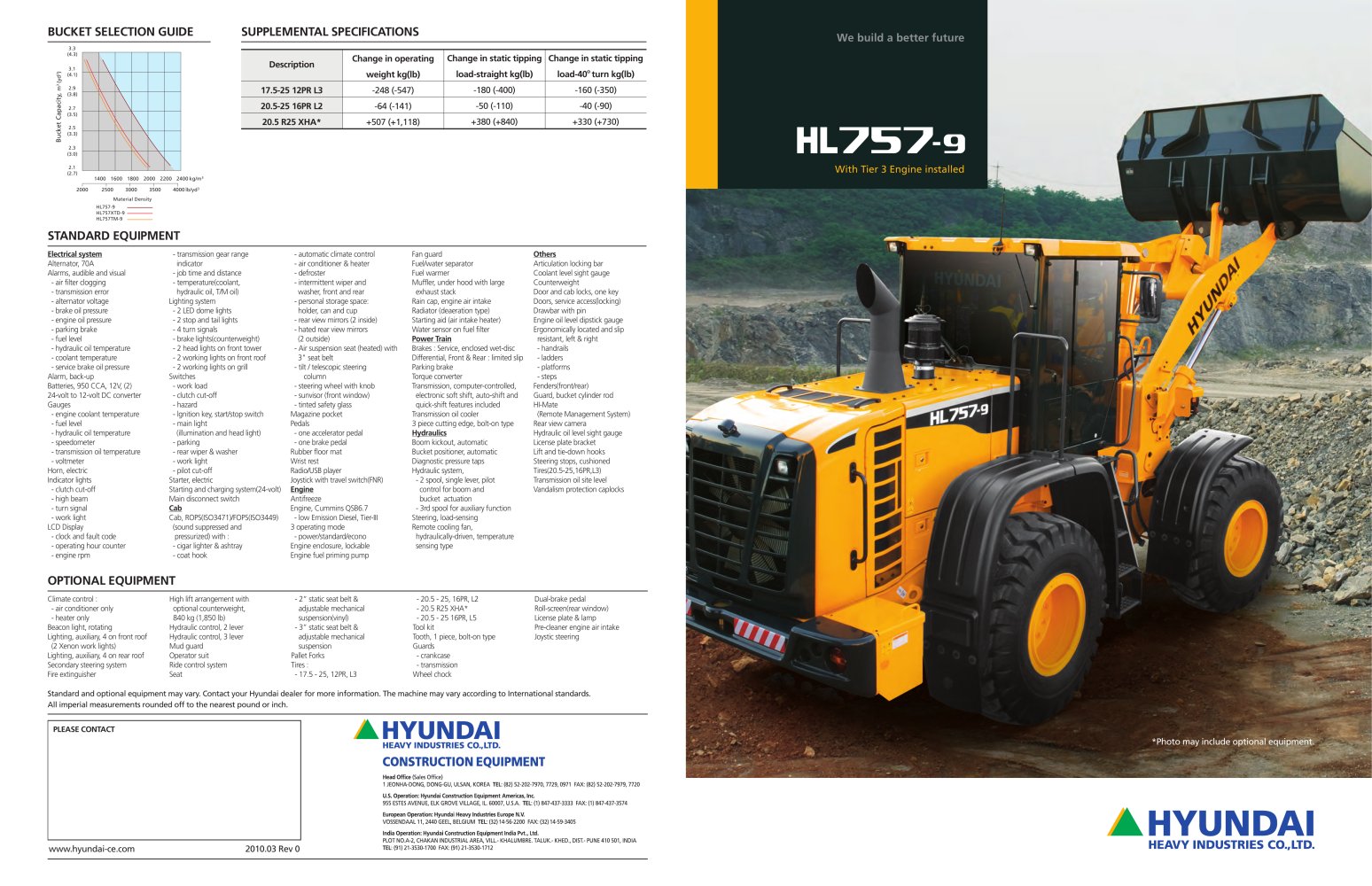

*Photo may include optional equipment. PLEASE CONTACT www.hyundai-ce.com 2010.03 Rev 0 Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine may vary according to International standards. All imperial measurements rounded off to the nearest pound or inch. Bucket Selection Guide optional EQUIPMENT Climate control : - air conditioner only - heater only Beacon light, rotating Lighting, auxiliary, 4 on front roof (2 Xenon work lights) Lighting, auxiliary, 4 on rear roof Secondary steering system Fire extinguisher High lift arrangement with optional counterweight, 840 kg (1,850 lb) Hydraulic control, 2 lever Hydraulic control, 3 lever Mud guard Operator suit Ride control system Seat - 2” static seat belt & adjustable mechanical suspension(vinyl) - 3” static seat belt & adjustable mechanical suspension Pallet Forks Tires : - 17.5 - 25, 12PR, L3 - 20.5 - 25, 16PR, L2 - 20.5 R25 XHA* - 20.5 - 25 16PR, L5 Tool kit Tooth, 1 piece, bolt-on type Guards - crankcase - transmission Wheel chock Dual-brake pedal Roll-screen(rear window) License plate & lamp Pre-cleaner engine air intake Joystic steering STANDA RD EQUIPMENT Electrical system Alternator, 70A Alarms, audible and visual - air filter clogging - transmission error - alternator voltage - brake oil pressure - engine oil pressure - parking brake - fuel level - hydraulic oil temperature - coolant temperature - service brake oil pressure Alarm, back-up Batteries, 950 CCA, 12V, (2) 24-volt to 12-volt DC converter Gauges - engine coolant temperature - fuel level - hydraulic oil temperature - speedometer - transmission oil temperature - voltmeter Horn, electric Indicator lights - clutch cut-off - high beam - turn signal - work light LCD Display - clock and fault code - operating hour counter - engine rpm - transmission gear range indicator - job time and distance - temperature(coolant, hydraulic oil, T/M oil) Lighting system - 2 LED dome lights - 2 stop and tail lights - 4 turn signals - brake lights(counterweight) - 2 head lights on front tower - 2 working lights on front roof - 2 working lights on grill Switches - work load - clutch cut-off - hazard - lgnition key, start/stop switch - main light (illumination and head light) - parking - rear wiper & washer - work light - pilot cut-off Starter, electric Starting and charging system(24-volt) Main disconnect switch Cab Cab, ROPS(ISO3471)/FOPS(ISO3449) (sound suppressed and pressurized) with : - cigar lighter & ashtray - coat hook - automatic climate control - air conditioner & heater - defroster - intermittent wiper and washer, front and rear - personal storage space: holder, can and cup - rear view mirrors (2 inside) - hated rear view mirrors (2 outside) - Air suspension seat (heated) with 3" seat belt - tilt / telescopic steering column - steering wheel with knob - sunvisor (front window) - tinted safety glass Magazine pocket Pedals - one accelerator pedal - one brake pedal Rubber floor mat Wrist rest Radio/USB player Joystick with travel switch(FNR) Engine Antifreeze Engine, Cummins QSB6.7 - low Emission Diesel, Tier-III 3 operating mode - power/standard/econo Engine enclosure, lockable Engine fuel priming pump Fan guard Fuel/water separator Fuel warmer Muffler, under hood with large exhaust stack Rain cap, engine air intake Radiator (deaeration type) Starting aid (air intake heater) Water sensor on fuel filter Power Train Brakes : Service, enclosed wet-disc Differential, Front & Rear : limited slip Parking brake Torque converter Transmission, computer-controlled, electronic soft shift, auto-shift and quick-shift features included Transmission oil cooler 3 piece cutting edge, bolt-on type Hydraulics Boom kickout, automatic Bucket positioner, automatic Diagnostic pressure taps Hydraulic system, - 2 spool, single lever, pilot control for boom and bucket actuation - 3rd spool for auxiliary function Steering, load-sensing Remote cooling fan, hydraulically-driven, temperature sensing type Others Articulation locking bar Coolant level sight gauge Counterweight Door and cab locks, one key Doors, service access(locking) Drawbar with pin Engine oil level dipstick gauge Ergonomically located and slip resistant, left & right - handrails - ladders - platforms - steps Fenders(front/rear) Guard, bucket cylinder rod HI-Mate (Remote Management System) Rear view camera Hydraulic oil level sight gauge License plate bracket Lift and tie-down hooks Steering stops, cushioned Tires(20.5-25,16PR,L3) Transmission oil site level Vandalism protection caplocks 3.3 (4.3) 3.1 (4.1) 2.9 (3.8) 2.7 (3.5) 2.5 (3.3) 2.3 (3.0) 2.1 (2.7) 1400 2000 2500 3000 3500 4000 1600 1800 2000 2200 2400 Material Density HL757-9 kg/m3 lb/yd3 Bucket Capacity, m3 (yd3) HL757XTD-9 HL757TM-9 Supplemental Specifications Description 17.5-25 12PR L3 20.5-25 16PR L2 20.5 R25 XHA* Change in operating weight kg(lb) -248 (-547) -64 (-141) +507 (+1,118) Change in static tipping load-straight kg(lb) -180 (-400) -50 (-110) +380 (+840) Change in static tipping load-40o turn kg(lb) -160 (-350) -40 (-90) +330 (+730) We build a better future With Tier 3 Engine installed

Hyundai Heavy Industries strives to build state-of-the art earthmoving equipment to give every operator maximum performance, more precision, versatile machine preferences, and proven quality. Take pride in your work with Hyundai! Load sensing hydraulic system with variable displacement piston pump and closed-center MCV (main control valve). Long-life cooling system, designed for additional durability, resistant to thermal shock, impulse and vibration. Redesigned steering cylinder lug and bucket link, now cast steel for additional strength and reliability. Reversible, swing-out, cooling fan for...

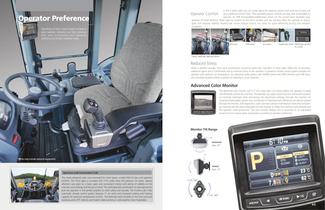

Operator Preference Operating a 9 series wheel loader is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs. 4/5 The newly designed cabin was conceived for more space, a wider field of view and operator comfort. The front glass is rounded and 17% wider than the previous 7A series. Special attention was given to a clean, open and convenient interior with plenty of visibility on the machine surroundings and the job at hand. This well balanced combination of cab ergonomics puts the operator in the perfect position...
