Dimension Specification Identification 1.1 Manufacturer Hyundai Hyundai Hyundai 1.2 Manufacturer’s type designation 50D-7E 60D-7E 70D-7E 80D-7E 1.3 Drive: electric (battery or mains),diesel,petrol,fuel gas,manual DIESEL DIESEL DIESEL DIESEL 1.4 Type of operation:hand,pedestrian,standing,seated,order-picker seated seated seated seated 1.5 Load capacity / rated load 11,023 13,228 15,432 17,637 1.6 Load center distance c(in) 23.6 23.6 23.6 23.6 1.8 Load distance, center of drive axle to fork x(in) 23.8 23.8 23.8 27.2 1.9 Wheelbase y(in) 94.5 94.5 94.5 98.5 lb Weights Service weight 2.1 2.2 2.3 Hyundai lb 18607 20382 21762 24560 Axle loading, loaded front/rear lb 26557 / 3430 29923 / 3688 32990 / 4204 37853 / 4343 Axle loading, unloaded front/rear lb 9709 / 9255 9707 / 10675 9405 / 12357 10737 13823 Tires:solid rubber, superelastic, pneumatic, polyurethane pneumatic pneumatic pneumatic pneumatic Tires size, front(Øx width) 8.25-15-14 8.25-15-14 8.25-15-14 9.00-20-14 Tires size, rear(Øx width) 8.25-15-14 8.25-15-14 8.25-15-14 9.00-20-14 4x/2 4x/2 4x/2 4x/2 Wheels, Chassis 3.1 3.2 3.3 3.5 3.6 3.7 Wheels, number front x rear (x=driven wheels) Track width, front in 62.2 62.2 62.2 64.3 Track width, rear in 63.1 63.1 63.1 66.9 Basic Dimensions 4.1 Mast / fork carriage tilt forward / backward (αxβ) 15 / 10 15 / 10 15 / 10 15 / 10 4.2 Lowered mast height h1 (in) 99 99 99 105.3 4.3 Free lift h2 (in) 5.5 5.5 5.5 5.7 4.4 Lift height h3 (in) 119.3 119.3 119.3 119.7 4.5 Extended mast height h4 (in) 168.3 168.3 168.3 172.2 4.7 Overhead guard height h5 (in) 98.4 98.4 98.4 102.4 4.8 Seat height / standing height h7 (in) 53.7 53.7 53.7 59 4.12 Coupling height h10 (in) 16.9 16.9 16.9 19.3 4.19 Overall length l1 (in) 185 187.6 189.8 196.9 4.20 Length to face of forks l2 (in) 137.8 140.5 142.9 153.5 4.21 Overall width b1 (in) 89.3 / 82.2 89.3 / 82.2 89.3 / 82.2 89.6 4.22 Fork dimensions(hook type) 2.4 x 5.9 x 47.2 2.6 x 5.9 x 47.2 2.6 x 5.9 x 47.2 2.8 x 7.1 x 47.2 4.23 Fork carriage ISO 2328, class / type A,B Class IV Class IV Class IV Class IV 4.24 Fork-carriage width b3 (in) 82.2 82.2 82.2 89.3 4.31 Ground clearance, loaded, under mast m1(in) 7.7 7.7 7.7 9.8 4.32 Ground clearance, centre of wheelbase m2(in) 9.3 9.3 9.3 12.3 4.33 Aisle width for pallets 1,000x1,200 crossways (LxW) Aisle width for pallets 800x1,200 lengthways (WxL) Ast(in) 200.2 202 203.7 216.1 4.34 Ast(in) 208.1 209.8 211.6 224 4.35 Turning radius Wa(in) 128.7 130.5 132.3 141.7 4.36 Smallest pivot point distance in 46.9 46.9 46.9 53.3 degrees s / e / l (in) Performance Data 5.1 5.2 5.3 5.5 5.7 5.9 5.10 Travel speed, unloaded mph 21.8 21.7 21.6 21.4 Lift speed, loaded / unloaded fpm 86.6 / 90.5 84.6 / 90.5 82.6 / 90.5 80.7 / 94.5 Lowering speed, loaded / unloaded fpm 98.4 / 88.6 98.4 / 88.6 98.4 / 88.6 98.4 / 88.6 Drawbar pull, loaded lb 14,264 14,334 14,390 14,228 Gradient performance, loaded / unloaded % 48.3 41.7 37.2 32.9 Acceleration time, loaded / unloaded(10m) - - - - FOOT (Hydraulic) FOOT (Hydraulic) FOOT (Hydraulic) FOOT (Hydraulic) HMC D4DD Service brake HMC D4DD HMC D4DD Some of the photos may include optional equipment. HMC D4DD Engine 6.1 6.2 6.3 6.4 6.5 Engine manufacturer / type Engine power acc. to ISO 1585 HP 98.6 98.6 98.6 98.6 1/min 2,300 2,300 2,300 2,300 No. of cylinder / cubic capacity cm2 3,907 3,907 3,907 3,907 Fuel consumption acc. To VDI cycle ℓ/h 4.0 4.2 4.5 5.2 Other Details 8.1 Type of drive control 8.2 Operating pressure (system / attach) 8.3 Oil volume (hydraulic) 8.4 Noise (at driver’s ear according to DIN 12 053) Full Auto Full Auto Full Auto Power Shaft bar 185 185 185 210 ℓ 105 105 105 100 db(A) 82 82 82 85 North America Only Rated speed PLEASE CONTACT www.hyundai-ce.com 2010. 07. Rev 0 HYUNDAI DIESEL FORKLIFT TRUCKS Applied Tier 3 Engine 50/60/70/80D-7E

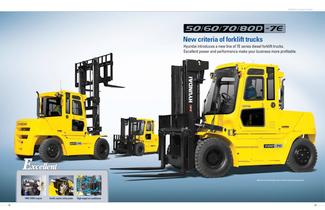

Open the catalog to page 1FORKLIFT Excellent Model New criteria of forklift trucks Hyundai introduces a new line of 7E series diesel forklift trucks. Excellent power and performance make your business more profitable. Some of the photos may include optional equipment. HMC D4DD engine 02 Durable, superior cooling system High-output air conditioner 03
Open the catalog to page 2High Power & Performance The new master on the job-site! Smooth running, efficient and ergonomically designed, 50/60/70/80D-7E series are made to meet your needs. High Power Low Noise Powerful engine HMC D4DD Engine Market approved quality of HMC D4DD engine ensures incomparable performance, durability and excellent fuel efficiency. This engine meets EPA Tier-III and EU stage IIIA emission regulations. 98.6HP/ 2,300rpm 38kgf.m/1,600rpm State-of-the-art hydraulic system Tilt cylinder Control valve Down control valve Lift cylinder Priority Hydraulic valve pump Power Steering unit The latest...
Open the catalog to page 3Comfortable Operation Ergonomic operator friendly compartment design! A design based on human engineering relieves fatigue and increases operator’s efficiency. MP3 CD player Operator friendly gauges and water-resistant monitor panel High-output air conditioner & heater A high output air conditioner and heater provides maximum comfort for the operator in any environment. Some of the photos may include optional equipment. 40 o 3.15 in Quick response of operating control levers Only minimal operator’s effort is required for precise, safe and productive control. 06 Centralized instrument switch...
Open the catalog to page 4Endurance & Safety Enhanced safety through high durability! Safety and durability are priorities in the design of the equipment. Durable, superior cooling system Fuel efficiency and low noise are acheived by applying hydraulic cooling fan sensing intake air temperature, transmission oil temperature, coolant temperature and hydraulic temperature. Full-automatic transmission Full-automatic transmission gives easy, convenient handling and soft, smooth shifting. The operator can select two kinds of automatic mode. Highly durable split type drive axle The durable drive axle provides fast travel...
Open the catalog to page 5Durability Easy Maintenance Centralized design for easy service! An ideal arrangement of component parts ensures easy access and convenience for the technican. Large engine hood Highly accessible engine compartment assures fast and efficient maintenance. Easy change air cleaner The air filter is readily accessible for cleaning or replacement. Cabin tilting automatic system 10 Cabin air fresh filter The internal pressure is maintained to be slightly higher than that of outside to exclude dust and to reduce noise levels. Cabin tilting automatic system makes Mechanic friendly servicing of all...
Open the catalog to page 6All Hyundai Construction Equipment Americas catalogs and technical brochures
-
