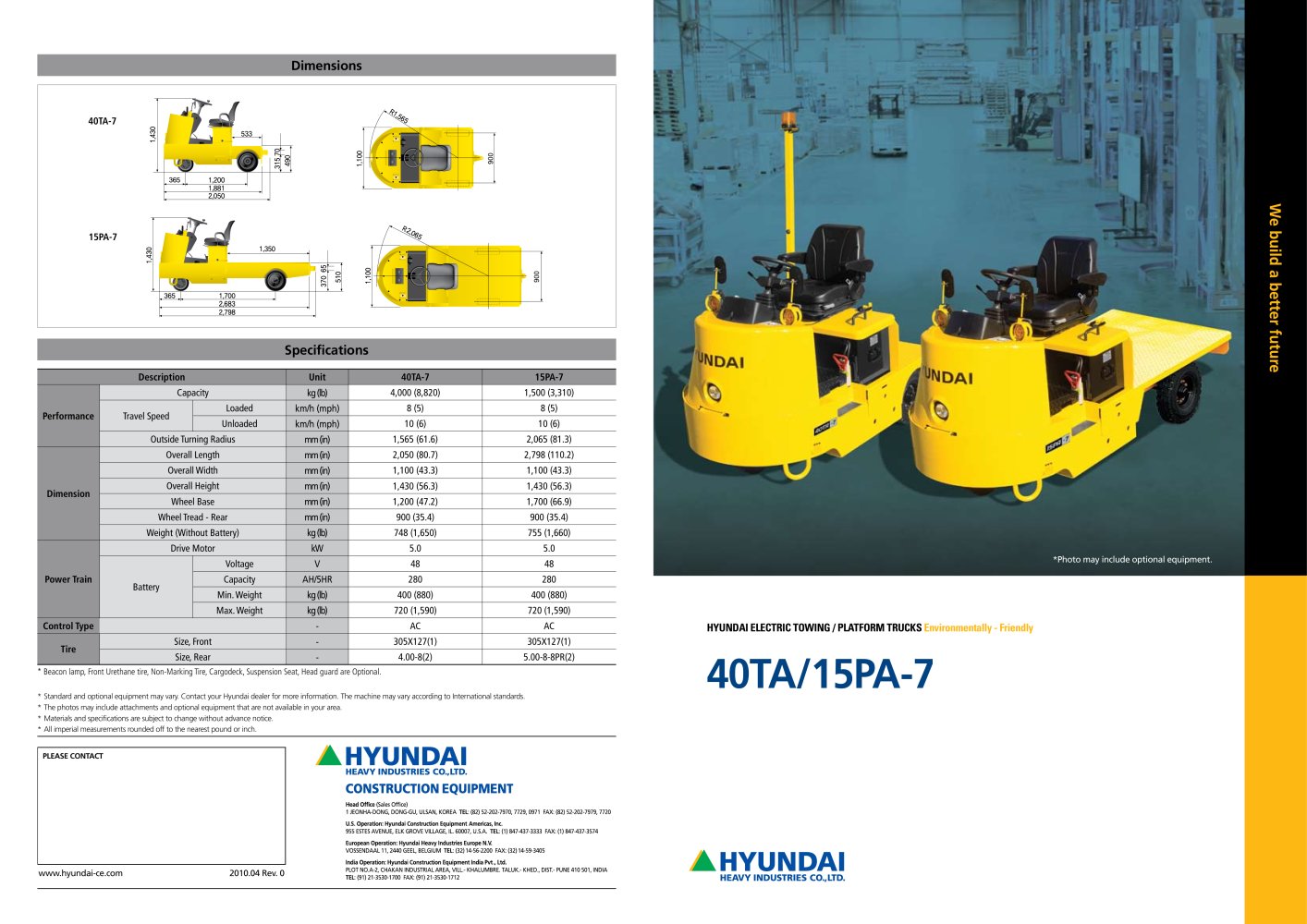

*Photo may include optional equipment. HYUNDAI ELECTRIC TOWING / PLATFORM TRUCKS Environmentally - Friendly * Beacon lamp, Front Urethane tire, Non-Marking Tire, Cargodeck, Suspension Seat, Head guard are Optional. 40TA/15PA-7 Description Capacity kg (lb) km/h (mph) km/h (mph) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) kg (lb) kW V AH/5HR kg (lb) kg (lb) - - - Travel Speed Outside Turning Radius Overall Length Overall Width Overall Height Wheel Base Wheel Tread - Rear Weight (Without Battery) Drive Motor Battery Size, Front Size, Rear Voltage Capacity Min. Weight Max. Weight Loaded Unloaded Performance Dimension Power Train Control Type Tire Unit 40TA-7 15PA-7 4,000 (8,820) 8 (5) 10 (6) 1,565 (61.6) 2,050 (80.7) 1,100 (43.3) 1,430 (56.3) 1,200 (47.2) 900 (35.4) 748 (1,650) 5.0 48 280 400 (880) 720 (1,590) AC 305X127(1) 4.00-8(2) 1,500 (3,310) 8 (5) 10 (6) 2,065 (81.3) 2,798 (110.2) 1,100 (43.3) 1,430 (56.3) 1,700 (66.9) 900 (35.4) 755 (1,660) 5.0 48 280 400 (880) 720 (1,590) AC 305X127(1) 5.00-8-8PR(2) Specifications Dimensions 40TA-7 15PA-7 PLEASE CONTACT www.hyundai-ce.com 2010.04 Rev. 0 * Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine may vary according to International standards. * The photos may include attachments and optional equipment that are not available in your area. * Materials and specifications are subject to change without advance notice. * All imperial measurements rounded off to the nearest pound or inch.
Open the catalog to page 1Revolutionizing the productivity in the material industry! Quiet and Environmentally-Friendly 40TA-7/15PA-7 Hyundai’s towing / platform trucks are electrically powered to provide quiet and environmentally-friendly operation for use not only in factories, but in places of business such as food plants, where hygiene and sanitation are a must. Maximize the productivity of your business with our powerful and agile electric trucks. With our vast experience in the production of construction equipment, Hyundai is able to meet the demands of our consumers. 40TA-7/15PA-7, produced by Hyundai are not...
