HEAVY INDUSTRIES CO.,LTD. Head Office (Sales Office) 14TH FL, HYUNDAI BLDG. 140-2, KYE-DONG, JONGNO-GU, SEOUL, KOREA 110-793 Americas Operation : Hyundai Construction Equipment Americas, Inc. 955 ESTES AVENUE, ELK GROVE VILLAGE, IL. 60007, U.S.A. TEL (1) 847-437-3333 FAX (1) 847-437-3574 Europe Operation: Hyundai Heavy Industries Europe N.V. idude optional equipment. North America only HYUNDAI DIESEL FORKLIFT TRUCKS App HEAVY INDUSTRIES CO..LTD.
Open the catalog to page 1FORKLIFT Excellent Model NEW criterion of Big Forklift Truck Hyundai introduces a new line of 7E-series diesel forklift truck. Excellent power and performance makes your business more profitable. Cruise Control Instrument Switch Panel Air Conditioner & Heater Rear View Camera Load Indicator ESL(Engine Start Limit) Some of the photos may include optional equipment. 02 03

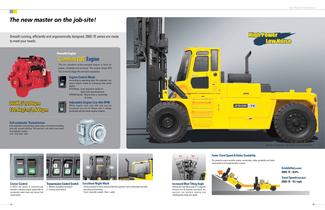

Open the catalog to page 2High Power & Performance The new master on the job-site! High Power Low Noise Smooth running, efficiently and ergonomically designed, 250D-7E series are made to meet your needs. Powerful Engine Cummins QSC Engine The six cylinders turbo-charged engine is built for power, reliability and economy. This engine meets EPA Tier 3 and EU stage IIIA emission regulation. Engine Control Mode According to operating load, the operator can select engine mode by changing side panel switch. STD Mode : Fuel reduction mode for light-duty operating load POWER Mode : Heavy-duty or operating at slope 260HP/...
Open the catalog to page 3Comfortable Operation Ergonomic operator friendly compartment design! A design based on human engineering relieves fatigue and increases operator’s efficiency. Operator friendly gauges and water-resistant monitor panel Specify full suspension seat Easily adjustable suspension seat An attractive and adjustable seat, based on a human engineering design, provides great comfort, safety and durability. (Head Rest - option) High-output Air Conditioner & Heater (Option) air conditioner unit and condensor are mounted on upper side of the cabin to increase operator space within the compartment. air...

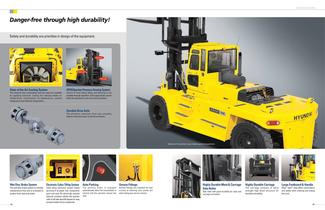

Open the catalog to page 4Endurance & Safety Danger-free through high durability! Safety and durability are priorities in design of the equipment. Lift Lock Drive Lock Tilt Lock State of the Art Cooling System The minimum fuel consumption and low noise are available by applying hydraulic cooling fan sensing intake air temperature, transmission oil temperature, coolant temperature and hydraulic temperature. OPSS(Operator Presence Sensing System) Control of mast tilting, lifting and lowering is not possible through operation of the appropriate control when the operators is not in the normal position. Durable drive...
Open the catalog to page 5Durability Easy Maintenance Centralized design for easy service! An ideal arrangement of component parts ensures easy access and convenience for maintenance. Large Engine Hood Highly accessible engine compartment assures fast and efficient maintenance. Easy Change Air Cleaner This air filter is readily accessible for cleaning or replacement. Cabin Air Fresh Filter The internal pressure is maintained to be slightly higher than that of outside to exclude dust and to reduce noise levels. Some of the photos may include optional equipment. Compact fuse box for easy inspection 10 Mechanic...
Open the catalog to page 6Specifications Mast Specification Maximum Fork Height (in) Mast Type Overall Height Lowerd (in) Dimension Identification Tilt Angle (deg) Fwd Specification Bwd 1.1 10 12 152.6 158.7 250D-7E Drive: electric (battery or mains),diesel,petrol,fuel gas,manual DIESEL Type of operation:hand,pedestrian,standing,seated,order-picker b14 seated 1.5 100 Load capacity / rated load 250D-7E * V400 Hyundai Manufacturer’s type designation 1.3 Truck Weight Unloaded (lb) Manufacturer 1.2 1.4 Load Capacity (47.2 in)(lb) 25.0 c (in) 47.2 Load center distance 1.8 Load distance, center of drive axle to fork b12 x...
