Catalog excerpts
Specification Dimension Identification 1.1 h7 h10 h2 m2 h5 m1 h1 h3 h7 h10 m2 m1 c ( in) Load distance, center of drive axle to fork Wheelbase LP seated 3,000 3,500 4,000 24 24 24 x (in) 15.47 15.47 15.7 y (in) 49.2 49.2 49.2 lb Weights 2.1 Service weight lb 6,234.7 6,673 6,988 Axle loading, loaded front/rear lb 8,093.2 / 1,448.4 8,913.3 / 1,618.21 9,773.1 / 1,624.8 Axle loading, unloaded front/rear lb 2,425.1 / 3,809.6 2,284 / 4,389.4 2,195.8 / 4,792.8 y I2 I1 3.1 Tires:solid rubber, superplastic, pneumatic, polyurethane Solid rubber Solid rubber Solid rubber 3.2 Tires size, front (Φ x width) 18 x 6 x 12.125 18 x 6 x 12.125 18 x 7 x 12.125 3.3 Tires size, rear (Φ x width) 14 x 5 x 10 14 x 5 x 10 14 x 5 x 10 3.5 Wheels, number front / rear (x=driven wheels) x2/2 x2/2 x2/2 3.6 h2 S Track width, front (in) 32.6 32.6 33.9 3.7 Track width, rear (in) 33.6 33.6 33.6 Basic Dimensions 130.9 131.1 Extended mast height h4 (in) 170.5 170.5 170.5 Overhead load guard (cab) height h5 (in) 84.4 84.4 84.4 Seat height / standing height h7 (in) 40.9 40.9 40.9 Coupling height h10 (in) 9 9 9 Overall length l1 (in) 117.8 119.2 120.35 Length to face of forks l2 (in) 82.4 83.7 84.92 4.21 Overall width b1 (in) 38.6 38.6 40.63 4.22 Fork dimensions 1.4 x 3.9 x 35.4 1.4 x 3.9 x 35.4 1.4 x 3.9 x 35.4 4.23 Fork carriage ISO 2328, class / type A,B II / A II / A II / A 4.24 Fork-carriage width b12 (in) 35 35 35 4.31 Ground clearance, loaded, under mast m1 (in) 3.54 3.54 3.66 Ground clearance, centre of wheelbase m2 (in) 3.8 3.74 3.74 Aisle width for pallets 1000x1200 crossways Ast (in) 137.3 138.4 139.4 Aisle width for pallets 800x1200 lengthways Ast (in) 145.1 146.2 147.2 4.35 I6 130.9 4.20 100 h3 (in) 4.34 wa 4.72 Lift height 4.33 b13 4.5 4.32 Ast 4.5 4.19 b13 h2 (in) 4.12 b1 83.8 Free lift 4.8 e 6/8 83.6 4.7 b1 6/8 83.6 4.5 e 6/8 h1 (in) 4.4 b12 degrees Lowered mast height 4.3 b12 Mast / fork carriage tilt forward / backward( α / β) 4.2 100 4.1 I6 S Load center distance LP seated 2.3 h4 x Load capacity / rated load LP seated Wheels, Chassis I1 I Type of operation:hand,pedestrian,standing,seated,order-picker 2.2 y I2 Q Drive: electric (battery or mains),diesel,petrol,fuel gas,manual 1.4 1.8 h5 h1 I 20LC-7M 1.9 c Hyundai 18LC-7M 1.6 x Hyundai 15LC-7M 1.5 Q Hyundai Manufacturer’s type designation 1.3 c Manufacturer 1.2 Turning radius Wa (in) 74.5 75.6 76.4 4.36 Smallest pivot point distance b13 (in) 20.8 20.8 20.8 s / e / l (in) Performance Data Ast 5.1 10.5 10.5 ft / min 128 / 133.9 128 / 133.9 128 / 133.9 Lowering speed, Loaded / Unloaded ft / min 98.4 / 88.6 98.4 / 88.6 98.4 / 88.6 5.5 Drawbar pull, Loaded lb 3,686 3,686 3,699 5.7 Gradient performance, Loaded % 37.1 32.8 30.6 5.9 Acceleration time, loaded / unloaded (10m) sec NA NA NA 5.10 wa 10.5 Lift speed, Loaded / Unloaded 5.3 100 Travel speed, Unloaded 5.2 Service brake Mechanic / Hydraulic Mechanic / Hydraulic Mechanic / Hydraulic MMC 2.0L MMC 2.0L mph Some of the photos may include optional equipment. North America Only Engine 6.1 6.2 Engine power acc. to ISO 1585 6.3 Rated speed 6.4 100 Engine manufacturer / type No. of cylinder / cubic capacity 6.5 Fuel consumption acc. To VDI cycle MMC 2.0L HP 49.3 49.3 49.3 1 / min 2,300 2,300 2,300 4 / 1,997 4 / 1,997 4 / 1,997 NA NA NA anz / cm3 liter / h Other Details 8.2 Type of drive control Power Shift Power Shift Power Shift 8.3 Operating pressure(System / Attach) bar 190 / 150 190 / 150 190 / 150 8.4 Oil volume liter 30 30 30 8.5 Noise db(A) 80 80 80 PLEASE CONTACT www.hyundai-ce.com 2012. 06 Rev 0. HYUNDAI LPG FORKLIFT TRUCKS Applied Tier 4 Engine 15/18/20LC-7M

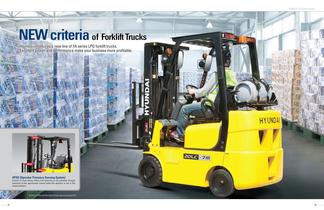

Open the catalog to page 1FORKLIFT Excellent Model NEW criteria of Forklift Trucks Hyundai introduces a new line of 7A series LPG forklift trucks. Excellent power and performance make your business more profitable. Lift Lock Tilt Lock Drive Lock OPSS (Operator Presence Sensing System) Control of mast tilting, lifting and lowering is not possible through operation of the appropriate control when the operator is not in the seated position. Some of the photos may include optional equipment. 02 03
Open the catalog to page 2High Power & Performance The new master on the job-site! Smooth running, efficient and ergonomically designed, 15/18/20-7M series are made to meet your needs. 49.3HP/ 2,300rpm Powerful Engine MMC 2.OL Engine Market approved quality of MMC 2.0L engine ensures incomparable performance, durability and additional value to the machine. Powerful and efficient engine provides excellent fuel economy and excellent torque for improved operation.(EPA/CARB Tier-IV Certified) Fast and Stable Performance Being able to quickly raise and lower the mast, as well as tilt it forward and backward, provides the...
Open the catalog to page 3Comfortable Operation Ergonomic operator friendly compartment design! A design based on human engineering relieves fatigue and increases operator's efficiency. Operator Friendly Gauges and Water-resistant Monitor Panel O Parking brake lamp © Fuel warning lamp © Engine oil warning lamp © Battery charging warning lamp 8 Air cleanerfilter warning light O Working light indicator ® Water separator lamp (D Water temperature gauge ® Engine check lamp ® Seat belt warning New High Visibility for Safe Operation The operator is able to work with increased safety and accuracy due to a wider view mast....

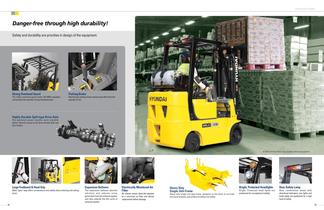

Open the catalog to page 4Endurance & Safety Danger-free through high durability! Safety and durability are priorities in design of the equipment. Strong Overhead Guard The safety overhead guard meets ISO 6055 regulation and protects the operator during hazardous jobs. Parking Brake Ratchet type parking brake requires less effort from the operator to set. Highly Durable Split type Drive Axle The optimized power transfer parts smoothly deliver desired torque to the drive wheels with wet disc brakes. Some of the photos may include optional equipment. Large Footboard & Hand Grip Wide "open" step offers convenience and...
Open the catalog to page 5Durability Easy Maintenance Mast Specification Designed for quick and easy service! An ideal arrangement of component parts ensures easy access and convenience for Free Lift Free Lift * TS-Mast: Wide Visible 3 Stage Full Free Lift Mast with 2 Free Lift Cylinders. Load Capacity Load Center(in) Various electric parts are centralized in dash board resulting in effortless easily without any disassembly. Brake Fluid Reservoir Highly visible, easily accessible reservoir makes for quicker daily SIDE SHIFT INTEGRAL SIDE SHIFT OVER SHOE(Extension Fork): 51.2, 59.1, 66.9 in Optional Items • TIRE:...
