Overview

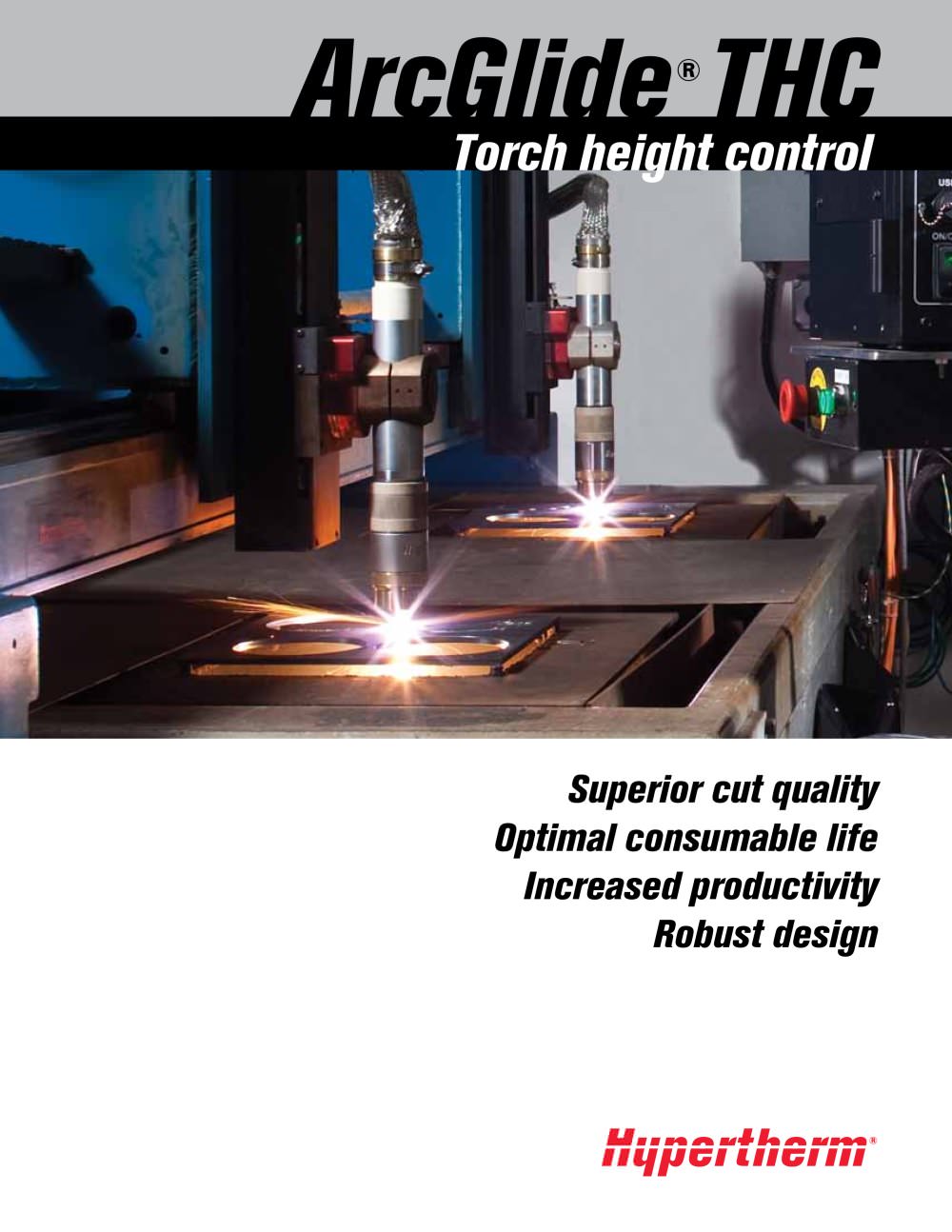

The document provides a detailed description of the ArcGlide THC® system, highlighting its benefits in plasma cutting applications. Key features include superior cut quality, optimal consumable life, increased productivity, and robust design.

Specifications
- Regulatory Compliance: CE, CSA, GOST-R
- Temperature Range: -10°C to +40°C (14°F to 104°F)
- Humidity: 95% RH
- Dimensions: Lifter (127 mm x 151 mm x 743 mm), HMI (298 mm x 131 mm x 118 mm), Control Module (359 mm x 157 mm x 206 mm)
- Torch Mount/Breakaway Assembly: 11.4 kg (25 lbs) magnetic, 4.5 kg (10 lbs) magnetic, Pneumatic
- Stroke Speed: 15240 mm/min (600 ipm)
- Lift Capacity: 11.4 kg (25 lbs)
- Warranty: Two-year standard
- Communication Protocol: Discrete wiring
- Voltage: 115V/230V for HMI and Control Module at 50/60hz
- Lifter Stroke Length: 241 mm (9.4")
- Table Types: Downdraft and water table
- High Amperage Capacity: 1 – 4 plasma system

Key Features and Benefits
- Optimal Consumable Life and Cut Quality: Utilizes arc voltage sampling and control to maintain proper torch height automatically, enhancing consumable life and cut quality without operator intervention.
- Increased Productivity: Rapid Ignition™ technology reduces cut-to-cut cycle time by up to 60%, increasing parts cut per hour by up to 80%.
- Robust Design: Enclosed mechanics protect against dust ingress, and features like pierce guard and magnetic breakaway ensure durability in harsh environments.
- Easy Operation: User-friendly HMI allows for quick job setup, with simplified controls to minimize operator training and errors.

Performance Advantages
The ArcGlide THC system is designed to deliver optimized performance with minimal operator input, ensuring consistent results across different shifts and operators. It leverages over 40 years of Hypertherm’s experience in the cutting industry.

Graphical Data Summary
- The system shows a significant increase in the number of consumable starts and parts per day, with a 60% reduction in cut-to-cut cycle time and an 80% increase in parts produced.

Contact Information
Hypertherm, Inc. and its global subsidiaries provide contact details for further inquiries and support.
