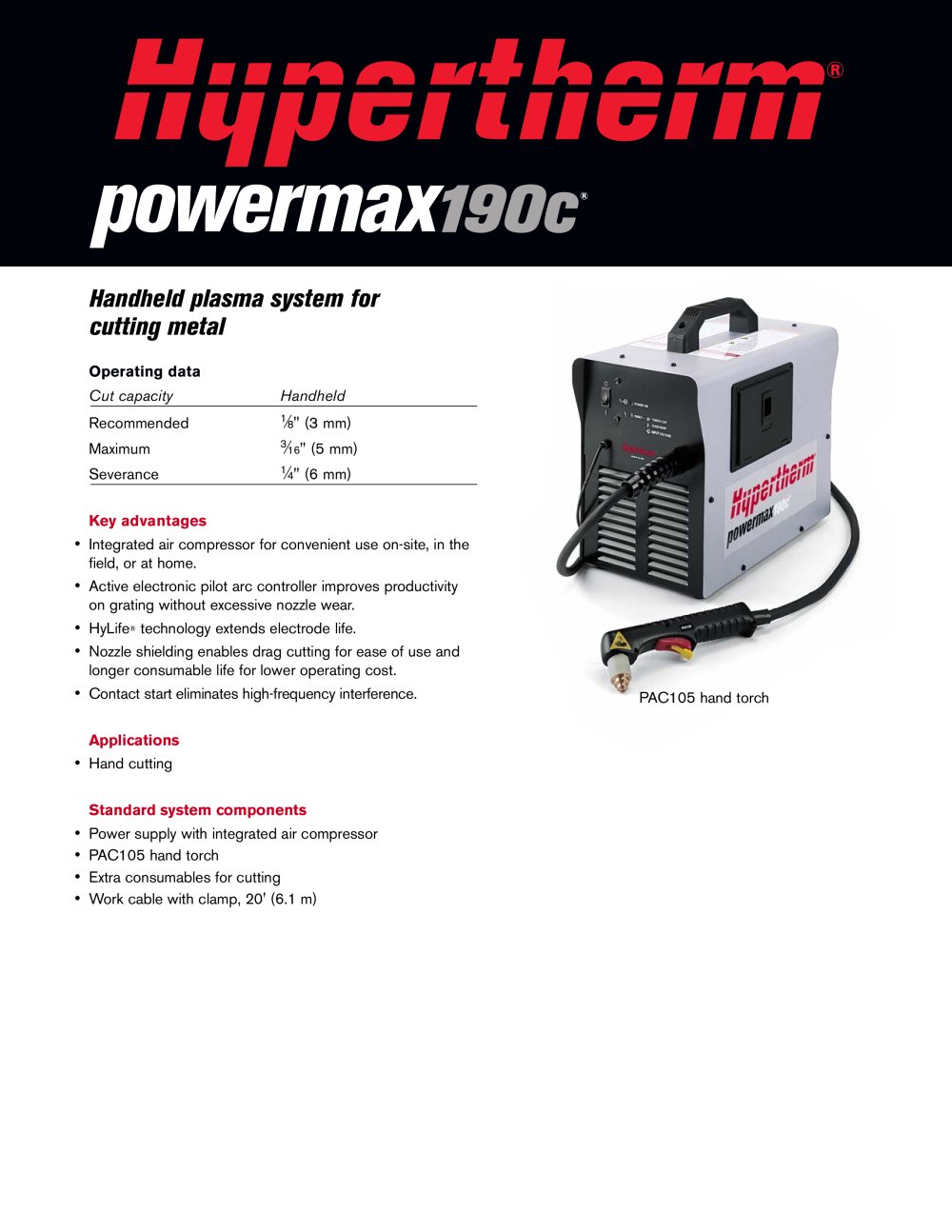

Powermax190c System Brochure

Powermax190c System Brochure

Product catalog summary

Overview: The PAC105 hand torch is a handheld plasma system designed for cutting metal, featuring an integrated air compressor for versatile use in various locations.

Operating Data: The system is recommended for cutting mild steel at a thickness of 1/8" (3 mm) with a maximum capacity of 3/16" (5 mm) and a severance capacity of 1/4" (6 mm).

Key Advantages:

Integrated air compressor for on-site convenience.
Active electronic pilot arc controller for improved productivity and reduced nozzle wear.
HyLife® technology for extended electrode life.
Nozzle shielding for drag cutting, enhancing ease of use and consumable life.
Contact start to eliminate high-frequency interference.

Applications: Primarily used for hand cutting.

Standard System Components:

Power supply with integrated air compressor.
PAC105 hand torch.
Extra consumables for cutting.
20' (6.1 m) work cable with clamp.

Specifications:

Input Voltage: 120 V, 1-PH, 60 Hz, CSA.
Input Current: 20 A at 1.32 kW.
Rated Output Voltage: 110 VDC.
Output Current: 12 A.
Duty Cycle: 35% at 12 A at 40˚C (104˚F).
Maximum OCV: 335 VDC.
Dimensions: 15.8" D x 8.5" W x 12" H.
Weight: 46 lbs (20.9 kg).
Gas Supply: On-board air compressor.
Input Power Cable Length: 10' (3 m).
Work Cable Length: 20' (6.1 m).
Warranty: 3-year power supply warranty and 1-year torch warranty.

Cut Chart: Provides maximum cut speeds for various thicknesses of mild steel, with speeds ranging from 100 ipm (2540 mm/min) for 18 GA to 9 ipm (229 mm/min) for 1/4" thickness.

Capacity Ratings:

Recommended: Good cut quality and speeds at or greater than 20" (500 mm) per minute for 80% or more of cutting.
Maximum: Good cut quality at reduced speeds of 10" (250 mm) per minute for 20% or less of cutting.
Severance: Reasonable severance with poor cut quality and slow speed, used infrequently.

Ordering Information: For more details, contact an authorized Hypertherm dealer or visit their website.
