Hypertherm, Inc.
HPR400XD System Brochure

HPR400XD System Brochure

Product catalog summary

Overview: The document provides a detailed overview of the HyPerformance® Plasma HPR400XD® system, highlighting its superior cut quality, productivity, minimized operating costs, and unmatched reliability. It emphasizes the system's advanced technologies, including PowerPierce™ shield technology for extreme piercing capability.

Specifications: The HPR400XD system is designed for precision cutting with a maximum cutting capacity of 80 mm (3.2") for mild steel. It operates at 400 A with a 100% duty cycle at 40°C (104°F) and 80 kW. The system supports various gases, including O2, N2, F5, H35, Air, and Ar, with specific pressure requirements for manual and automatic gas consoles.

Technological Features: The system incorporates several patented technologies:

HyDefinition Technology: Aligns and focuses the plasma arc for precision cutting.
LongLife Technology: Extends consumable life by controlling electrical current and gas pressure.
PowerPierce Technology: Enables robust piercing up to 50 mm (2") in mild steel.

Productivity and Cost Efficiency: The HPR400XD maximizes productivity through fast cutting speeds, rapid process cycling, and quick changeovers. It reduces operating costs with its LongLife technology, which extends consumable life and maintains consistent cut quality over time.

Reliability: The system is designed with 50% fewer parts than competitors, enhancing reliability. It undergoes rigorous testing equivalent to over 10 years of use in extreme environments. Self-diagnostics ensure peak performance during operation.

Performance Data: The document includes detailed performance data, comparing the HPR400XD with competitors in terms of cut quality, speed, and consumable life. It highlights the system's ability to deliver consistent quality from the first cut to the last, with significant reductions in operating costs.

Conclusion: The HPR400XD is positioned as a leading choice for customers seeking high productivity, low operating costs, and reliable performance in plasma cutting applications.

Catalog excerpts

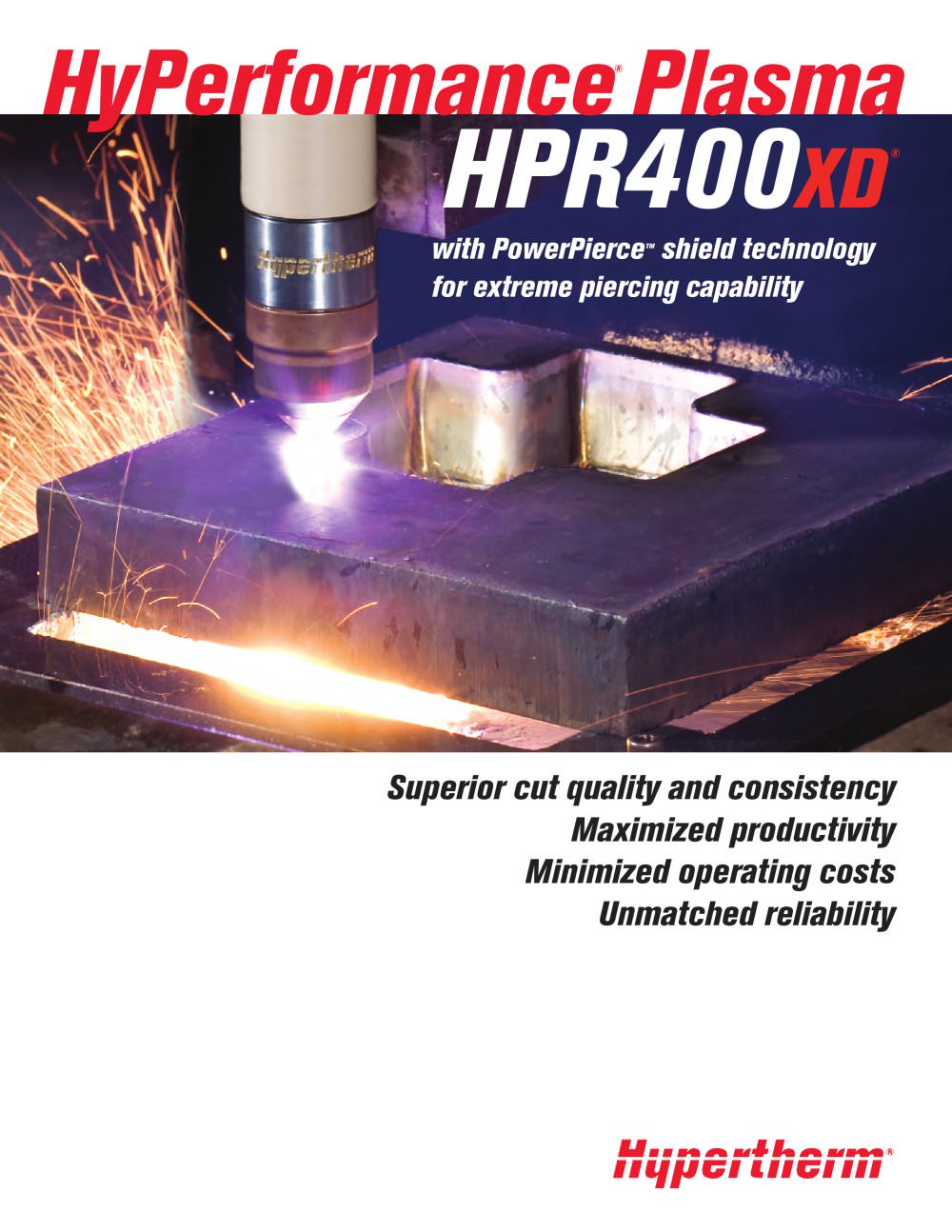

HyPerformance > Plasma > with PowerPierce Ι shield technologyfor extreme piercing capability XD Superior cut quality and consistencyMaximized productivityMinimized operating costsUnmatched reliability size="-1">

Open the catalog to page 1

Hypertherm has spent more than four decades developing over 70 patented plasma technologies to provide customers with exceptional performance they can count on. With thousands of HyPerformance Plasma systems sold around the world, the HPR product family has become the plasma system of choice for customers who demand the most consistent cut quality, highest productivity, lowest operating cost and unmatched reliability. > HyPerformance Plasma cuts fine-feature partswith superior quality and consistency, eliminating the cost of secondary operations. HyPerformance Plasma combines fast cuttingspeeds,...

Open the catalog to page 2

HyFlowvortex nozzlePlasma gas inletPlasma gas ventWorkpieceHyperthermshield technologyShieldgas inlet Vented nozzle technology aligns and focusestheplasma arc. ՕHyDefinition technology enables powerful precisioncutting for superior quality and consistency. > Ramps electrical current and gas pressure up anddown in a tightly controlled manner.ՕTo reduce electrode and nozzle erosion, LongLifetechnology delivers consistent HyDefinition cut quality over the longest period of time for a significant reduction in operating cost and downtime. Patented HyDefinition cutting for consistent quality Consistent...

Open the catalog to page 3
