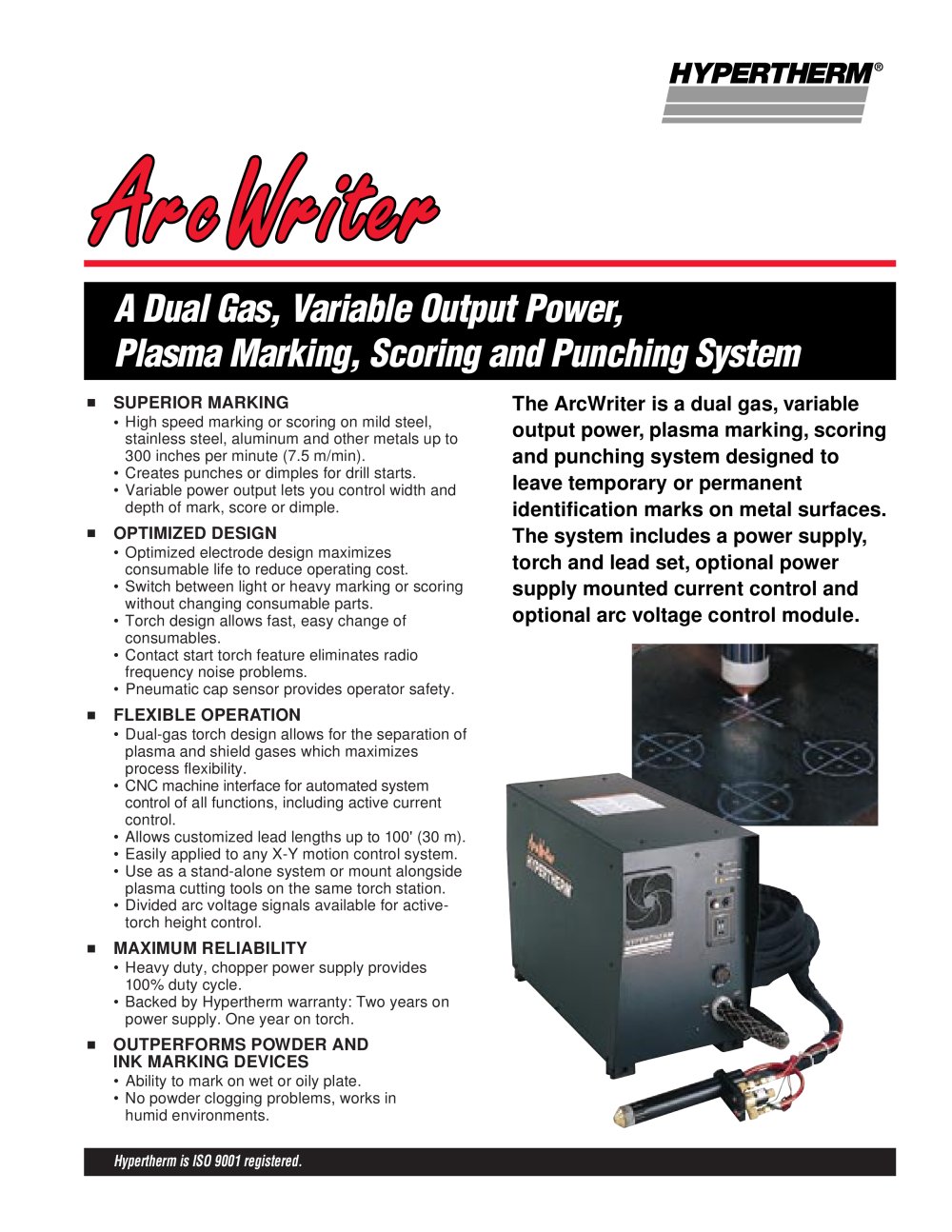

ArcWriter System Brochure

ArcWriter System Brochure
1 / 2Pages

Catalog excerpts

Ε High speed marking or scoring on mild steel,stainless steel, aluminum and other metals up to 300 inches per minute (7.5 m/min).Creates punches or dimples for drill starts. ?Variable power output lets you control width anddepth of mark, score or dimple. > ?Optimized electrode design maximizes consumable life to reduce operating cost.?Switch between light or heavy marking or scoringwithout changing consumable parts.?Torch design allows fast, easy change of consumables.?Contact start torch feature eliminates radio frequency noise problems.?Pneumatic cap sensor provides operator safety. > ?Dual-gas torch design allows for the separation ofplasma and shield gases which maximizes process flexibility.?CNC machine interface for automated system controlof all functions, including active currentcontrol.?Allows customized lead lengths up to 100' (30 m). ?Easily applied to any X-Y motion control system. ?Use as a stand-alone system or mount alongsideplasma cutting tools on the same torch station.?Divided arc voltage signals available for active-torch height control. > ?Heavy duty, chopper power supply provides100% duty cycle.?Backed by Hypertherm warranty: Two years onpower supply. One year on torch. > ?Ability to mark on wet or oily plate.?No powder clogging problems, works in humid environments. Hypertherm is ISO 9001 registered. >

Open the catalog to page 1
