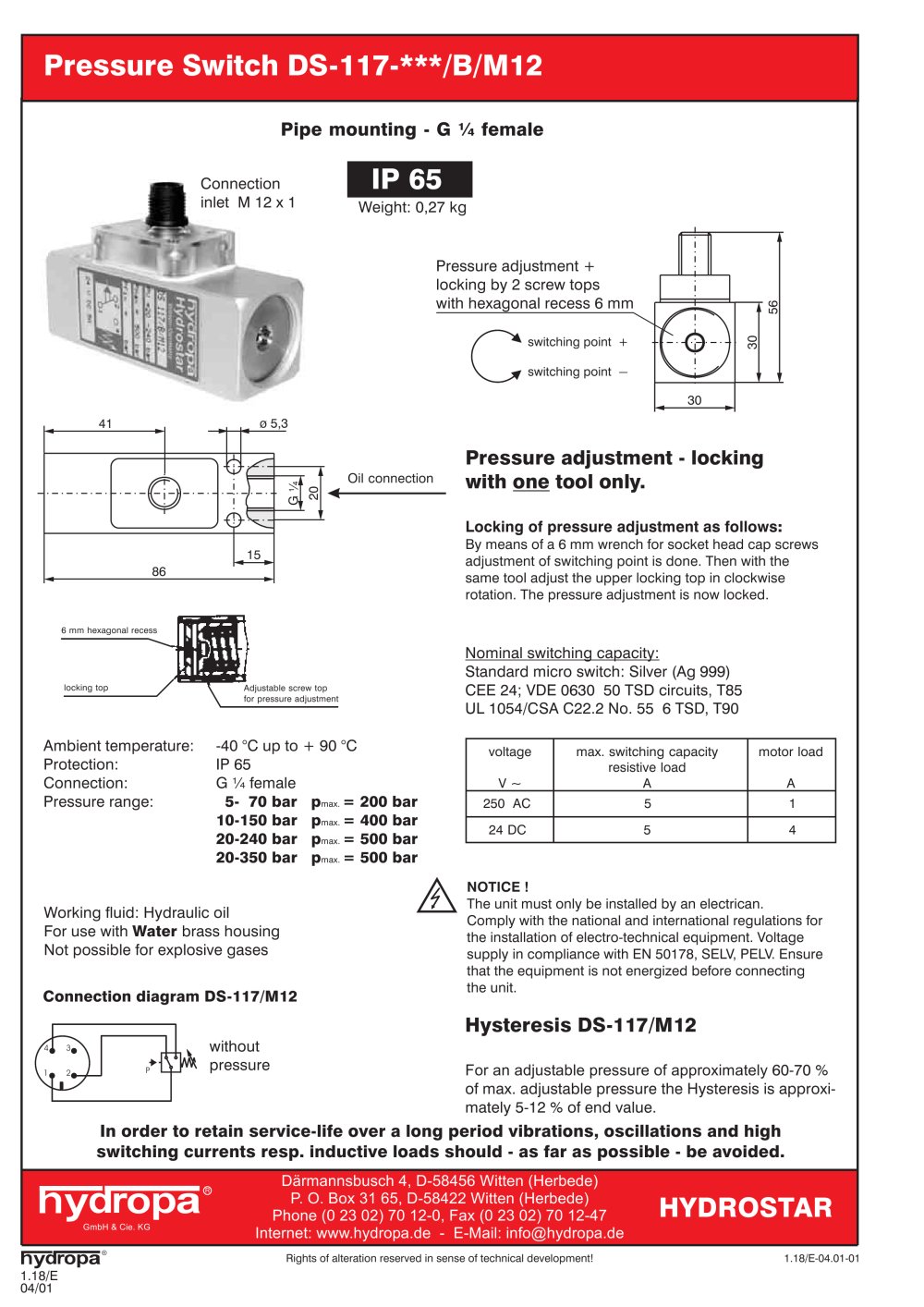

Pressure Switch DS-117-***/B/M12 Overview
This document provides technical specifications and installation guidelines for the Pressure Switch DS-117-***/B/M12 by HYDROSTAR. It includes details on hysteresis, nominal switching capacity, ambient temperature, protection, connection, pressure range, and working fluid.

Specifications

Hysteresis: Adjustable pressure of approximately 60-70% of max adjustable pressure, with hysteresis approximately 5-12% of end value.
Nominal Switching Capacity: Standard micro switch with silver (Ag 999), compliant with CEE 24, VDE 0630, UL 1054/CSA C22.2 standards.
Ambient Temperature: -40 °C to +90 °C.
Protection: IP 65.
Connection: G ¼ female, with pressure adjustment and locking by two screw tops with a 6 mm hexagonal recess.
Pressure Range: Various ranges with maximum pressures of 200, 400, and 500 bar.
Working Fluid: Hydraulic oil, not suitable for explosive gases or water.
Weight: 0.27 kg.

Electrical Specifications

Voltage: 250 AC and 24 DC.
Max Switching Capacity: 5 A resistive load, 1 A motor load for 250 AC; 5 A resistive load, 4 A motor load for 24 DC.

Installation and Safety Instructions

The unit must be installed by a qualified electrician.
Comply with national and international regulations for electro-technical equipment installation.
Ensure the equipment is not energized before connecting.
Voltage supply must comply with EN 50178, SELV, PELV standards.
Avoid vibrations, oscillations, and high switching currents to retain service life.

Pressure Adjustment

Adjust the switching point using a 6 mm wrench for socket head cap screws.
Lock the pressure adjustment by rotating the upper locking top clockwise with the same tool.
