Hydropa
KOMPAKT-AGGREGATE

KOMPAKT-AGGREGATE

Product catalog summary

Introduction
The document provides technical specifications and descriptions for the compact power units ZA13 and ZA30, manufactured by Hydropa GmbH & Cie. KG. These units are designed for hydraulic systems with low displacement and short duty cycles.

Specifications

ZA 30: Tank volume of 30 liters, displacement of 8 to 15 liters per minute, and operating pressure of 100 to 170 bar.
ZA 13: Tank volume of 13 liters, displacement of 2.2 to 5.4 liters per minute, and operating pressure of 140 to 190 bar.

Description
The ZA13 and ZA30 units serve as pressure oil distributors for various hydraulic systems, including small presses, tensioning devices, machine tools, and lifting equipment. They are suitable for applications with short duty cycles.

Duty Cycle
The duty cycle is primarily limited by the maximum permissible oil temperature of 80°C. The heating of the oil depends on the maximum operating pressure and the oil filling of the tank. Higher oil consumption and driving power result in faster heating of the residual oil.

Ordering Code
The document provides a detailed ordering code for specifying the desired configuration of the compact power units, including tank volume, drive power, and standard voltage.

Dimensions and Circuit Diagram
Dimensions and circuit diagrams for the basic versions of ZA13 and ZA30 are provided, detailing the layout and positioning of components such as the drain plug and block valves.

Conclusion
Hydropa GmbH & Cie. KG positions itself as an innovative system partner for the industry, emphasizing competence, flexibility, and quality orientation.

Catalog excerpts

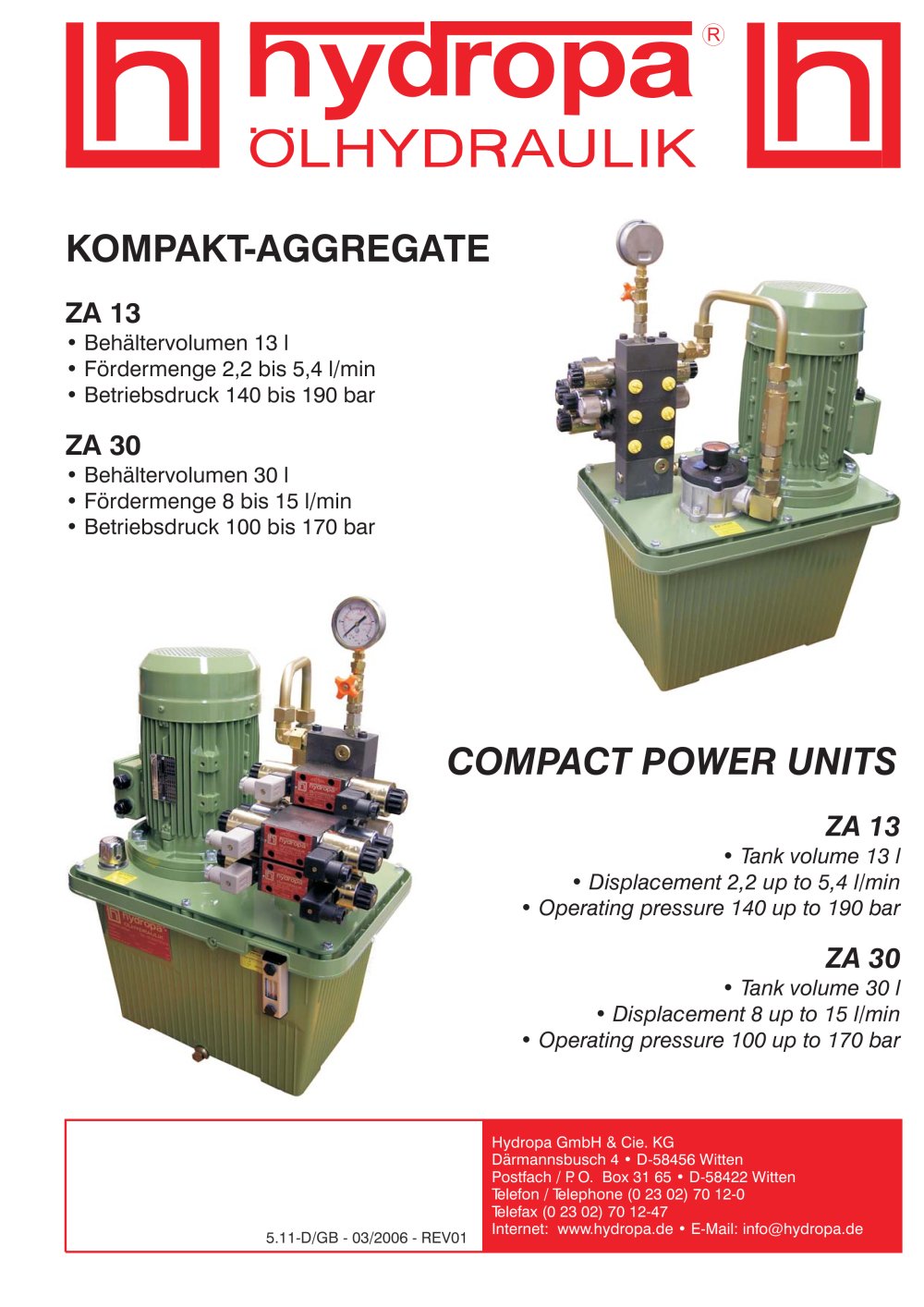

R KOMPAKT-AGGREGATE COMPACT POWER UNITS 5.11-D/GB - 03/2006 - REV01 Hydropa GmbH & Cie. KG Därmannsbusch 4 • D-58456 Witten Postfach / P. O. Box 31 65 • D-58422 Witten Telefon / Telephone (0 23 02) 70 12-0 Telefax (0 23 02) 70 12-47 Internet: www.hydropa.de • E-Mail: [email protected] ZA 30 • Behältervolumen 30 l • Fördermenge 8 bis 15 l/min • Betriebsdruck 100 bis 170 bar ZA 30 • Tank volume 30 l • Displacement 8 up to 15 l/min • Operating pressure 100 up to 170 bar ZA 13 • Behältervolumen 13 l • Fördermenge 2,2 bis 5,4 l/min • Betriebsdruck 140 bis 190 bar ZA 13 • Tank volume 13 l • Displacement 2,2 up to 5,4 l/min • Operating pressure 140 up to 190 bar

Open the catalog to page 1

Kompakt-Aggregate ZA13 und ZA30 Compact power units ZA13 and ZA30 2/4 5.11-D/GB - 03/2006 - REV01 R BESCHREIBUNG Die Kompakt-Aggregate ZA13 und ZA30 dienen als Druckölversorger für alle Arten von Hydrauliksystemen mit kleinem Fördervolumen wie z. B. Kleinpressen, Spanneinrichtungen, Werkzeugmaschinen, Hubgeräten und Vorrichtungen. Sie sind geeignet für alle Anwendungsfälle mit geringer Einschaltdauer. EINSCHALTDAUER Eine genaue Angabe über die Einschaltdauer ist nicht möglich, da diese in erster Linie durch die max. zulässige Öltemperatur von 80° C begrenzt ist. Die Erwärmung des Öles auf diese...

Open the catalog to page 2

Kompakt-Aggregate ZA13 und ZA30 Compact power units ZA13 and ZA30 5.11-D/GB - 03/2006 - REV01 3/4 R ABMESSUNGENUNDSCHALTSCHEMA Grundausführung DIMENSIONSANDCIRCUIT DIAGRAM Basic version A B C D E H1 H2 H3 M ZA 13 ZA 30 250 170 248 340 ca. 460 293 228 ca. 520 M 8 300 150 353 503 ca. 570 395 330 ca. 660 M 10 N R 06/1-1 R 06/1-2 R 06/1-3 Lage der Ablassschraube bei ZA 13 Position of drain plug (ZA 13) EBF nur bei ZA 30 (bei ZA 13 TSDA) EBF for ZA 30 only (TSDA for ZA 13) M FAT nur bei ZA 30 FAT for ZA 30 only

Open the catalog to page 3

Münster / Recklinghausen A 43 Herbede Wittener Straße Ausfahrt Witten - Herbede Bochum - Stiepel Wittener Straße HYDROPA Därmannsbusch Kämpenstraße weideter es W Kämpenstraße Wuppertal Rüssbergstraße Im Hammertal Hattingen Und so finden sie uns: And so you find us: Blockventile / Block valves Anlagen / Units Hydraulikzylinder / Hydraulic cylinder Druckschalter / Pressure switches Pumpen / Pumps R Innovativer Systempartner der Industrie - KOMPETENT - FLEXIBEL - QUALITÄTSORIENTIERT Innovative systempartner of the industry - COMPETENT - FLEXIBLE - QUALITY ORIENTED

Open the catalog to page 4
