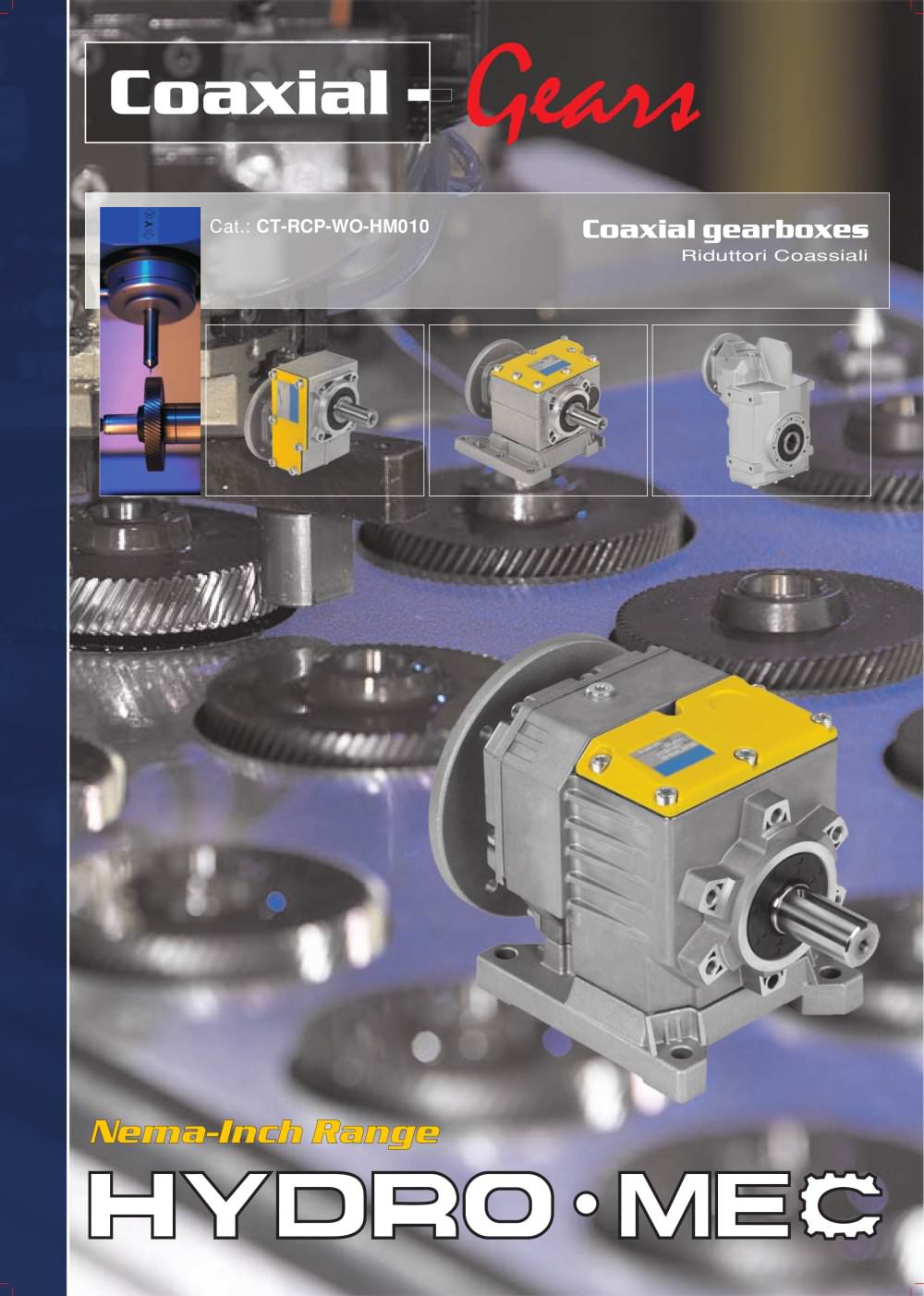

Coaxial Gears Coaxial gearboxes Riduttori Coassiali Cat.: CT-RCP-WO-HM010 Nema-Inch Range

Nema Electric motors Coaxial-Gear One Step-Gear Coaxial-Gear Motors Nema dimensions. Dimensioni motori Nema. Cast iron in line gearboxes with two or three stages of reduction. Riduttori coassiali in ghisa con due o tre stadi di riduzione. See technical data table. Vedi tabelle dati tecnici. Paragraph 6 Compact aluminum in line gearboxes with one stage of reduction. Riduttori coassiali in alluminio con uno stadio di riduzione. See technical data table. Vedi tabelle dati tecnici. Paragraph 4 See technical data table. Vedi tabelle dati tecnici. Paragraph 5 Compact aluminum in line gearboxes...

Feet Removable feet. Flange Fully modular to IEC and Compact integrated motor. NEMA C flange Gears Hardened and ground gears. Output shaft With well proportioned bearings World wide sales network. Single-piece aluminum alloy housing Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing Removable inspection cover Allows periodic inspection of gearing during routine maintenance Alloy housing Is vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint A modular and compact product...

Selection Features Selection guide - fs Guida alla selezione Mounting pos. - Lubrication Pos. di montaggio - lubrificazione 2 - 6 poles selection Selezione 2 - 6 poli Radial - axial loads Carichi radiali e assiali Reversibility Reversibilità Thermal limit Limite termico Atex certification Certificazione Atex Accessories Accessori Download 3D drawings Download disegni 3D Interchangeability Intercambiabilità Installation and maintenance Installazione, uso e manutenzione Spare parts list Liste parti di ricambio For : / Per : / Para : 211A 177lb in 311A 266lb in 411A 336lb in 511A 1044lb in 4-3...

ø ø A pedido, se pueden enviar nuestros productos de acuerdo con las normas ATEX. A richiesta possiamo fornire i nostri prodotti secondo le normative ATEX On request we can deliver our products according to the ATEX 4-1 1 Special output shaft Albero uscita speciale B R P H1 M -N Mounted feet Only on request for Q.ty A richiesta per quantità Stages Riduzioni Stufen Etapas With IEC motor With male input shaft With motor flange Without flange / feet Modular Base -F Output flange diameter Diametro flangia uscita Output shaft diameter Diametro albero uscita P 311A -F 2.84 X W 211A 311A 411A 511A...

266lb in One step Ratios code ø standard ø0.625 Output Shaft - QUICK SELECTION / Selezione veloce input speed (n ) = 1750 min-1 1 1113.6 615.7 531.3 1.57 2.84 3.29 0.75 0.75 0.75 56 100 116 2.1 2.0 2.0 n[min2 -1] i P1M [HP] M2M [lb in] f.s. [HP] [lb in] Output Speed Ratio Motor power Output torque Service factor Nominal power Nominal torque 56C - Available NEMA motor flanges W - 2844 1954 1756 4-2 Velocità in entrata Input speed Velocidad de entrada A Select required torque (according to service factor) Seleccionar el par deseado (incluyendo el factor de servicio) B Select ouput speed...

177lb in Coaxial - Gear Motor Flange Holes Position Posizione Fori Flangia Motore Motor Flanges Available Flange Motore Disponibili Supplied with Reduction Bushing Fornito con Bussola di Riduzione Available on Request without reduction bushing B) B)Disponibile a Richiesta senza Bussola di Riduzione C) n2 FA FR 22.7 134.9 156.5 170.0 196.9 215.8 113.3 27.0 31.0 33.9 39.3 43.2 700 600 400 300 200 140 LUBRICATION 211A Oil Quantity 1.76 ounces RADIAL AND AXIAL LOADS Output shaft Albero di uscita *Strong axial loads in the DX direction are not allowed. Non sono consentiti forti carichi assiali...

266lb in One step FR (lb) The dynamic efficiency is 0.98 for all ratios tab. 1 RADIAL AND AXIAL LOADS Output shaft Albero di uscita Input shaft Albero in entrata tab. 2 X FA (lb) FR (lb) Feq (lb) 94.4 FA FR 700 18.9 600 22.5 112.3 400 25.8 130.3 300 28.3 141.5 200 32.8 164.0 140 35.9 179.7 Feq = FR . 1.61 X+0.83 n FA FR 2 n FA FR 2 Ratios code ø standard ø0.625 On request ø0.750 ø0.875 Output Shaft - = = Motor Flange Holes Position Posizione Fori Flangia Motore Motor Flanges Available Flange Motore Disponibili Supplied with Reduction Bushing Fornito con Bussola di Riduzione Available on...

EN I E Unit 411A is supplied with synthetic oil for lifetime lubrification, no maintenance is necessary. See table 1 for lubrication and recommended quantity. In table 2 please see possible radial loads and axial loads on the gearbox. For complete documentation please visit our web site. Il riduttore 411A viene fornito completo di olio sintetico per la lubrificazione permanente e non necessita di alcuna manutenzione. Vedi tab.1 per oli e quantità consigliati. In tab.2 sono presenti i carichi radiali e assiali applicabili al riduttore. Per la documentazione completa consulta il nostro sito....

EN I E Unit 511A is supplied with synthetic oil for lifetime lubrification, no maintenance is necessary. See table 1 for lubrication and recommended quantity. In table 2 please see possible radial loads and axial loads on the gearbox. For complete documentation please visit our web site. Il riduttore 511A viene fornito completo di olio sintetico per la lubrificazione permanente e non necessita di alcuna manutenzione. Vedi tab.1 per oli e quantità consigliati. In tab.2 sono presenti i carichi radiali e assiali applicabili al riduttore. Per la documentazione completa consulta il nostro sito....

Feet Removable feet. With patented locking system. Flange Fully modular to IEC and Compact integrated motor. NEMA C flange Gears Hardened and ground gears. Foot prints Compatible to the main standard of the market. Oil seals Two oil seals on request Output shaft With well proportioned bearings World wide sales network. Single-piece aluminum alloy housing Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing Removable inspection cover Allows periodic inspection of gearing during routine maintenance Alloy housing Is vacuum impregnated...
