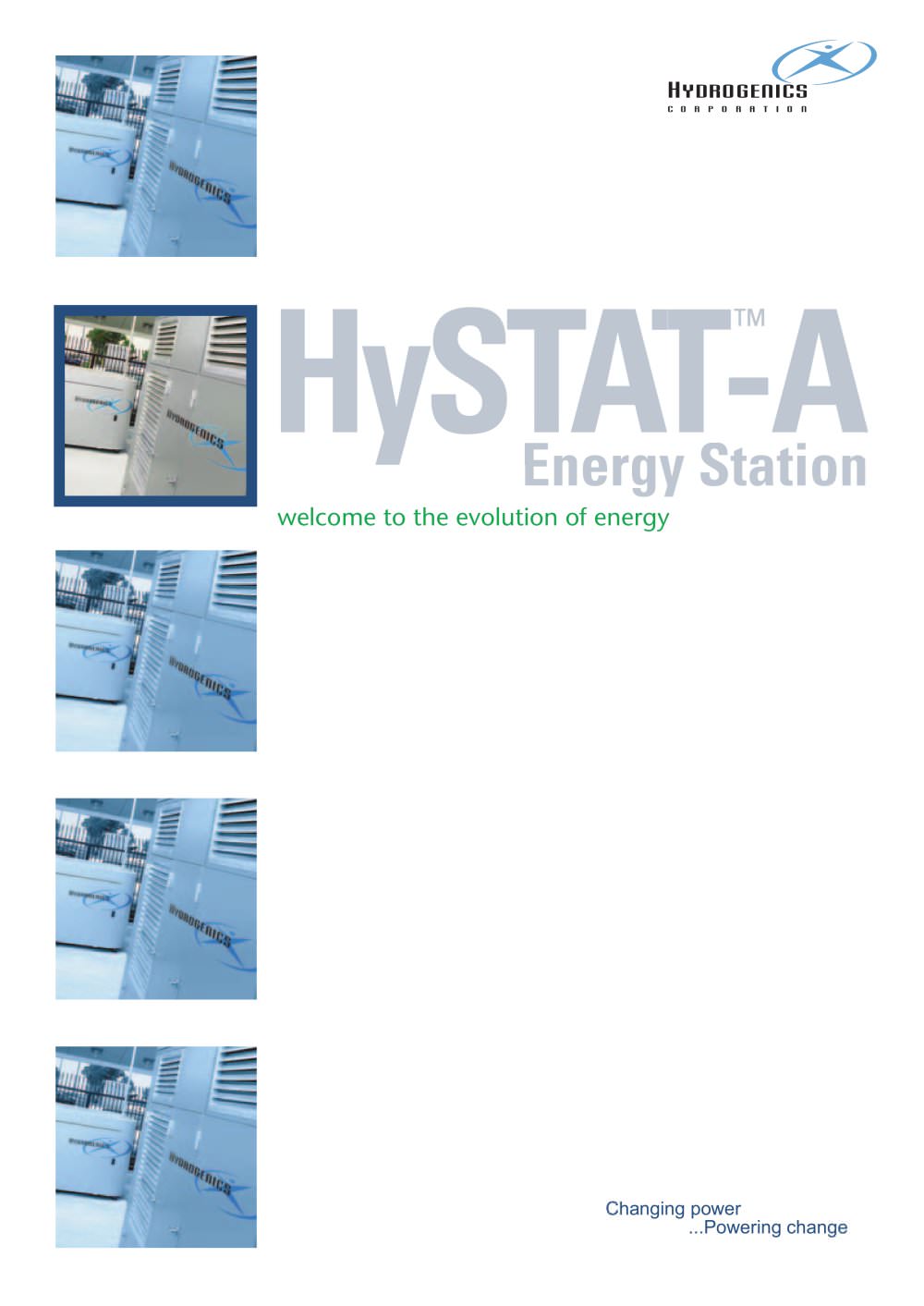

HySTA A A T T T - > welcome to the evolution of energy Energy Station Energy A > Changing power ...Powering change size="-4">

HySTAT > -A Energy Station > About Hydrogenics Hydrogenics Corporation is a leading global developer of clean energy solutions, advancing the Hydrogen Economy by commercializing hydrogen and fuel cell products.Through the acquisition of Stuart Energy, Hydrogenics has strength- ened its position by gaining over 50 years experience from Stuartْs legacy as the global leader in the develop- ment, manufacture and integration of multi-use hydrogen infrastructure products. The combined companies bring together the best available technolo- gies and an experienced team of hydrogen experts. At Hydrogenics...

The HySTAT 4. Fuel Dispenser > HySTAT Hydrogenics֒ proprietary HySTAT IMET > electrolysis based energy station, > Ι - A Generator Module is based on emission-free electrolysis technology that generates hydrogen gas on-site, reliably and safely. > Dispenser Module can deliver pure hydrogen for fuel cell and hydrogen ICE vehicles, as > ٙ - A is the worlds first multi- purpose hydrogen infrastructure product that transforms electricity into stored high value hydrogen energy. The 2. Compression Module The Compression Module raises the hydrogen gas to a desired pressure, currently up to 430 bar (6,250...

IMET The HySTAT > ٙ - A Hydrogen Generator Module is a water electrolysis based product that generates high-purity hydrogen, and oxygen, for use in a variety of applications. > Technology features electrical connections that automatically ground the unit making the IMET > ή technology one of the safest electro- lysers in the market. In addition, this technology is highly efficient with IMET > Technology is a pressurized alkaline electrolyzer that generates high-purity hydrogen at pressures up to 25 bar (363 psi) directly from the electrolyzer. The patented membrane technology, is developed Electrolysis...

Virtually maintenance-freeOn-site and on-demand productionReliable supply, and efficient delivery of hydrogenFlexibility to meet a customerΒs specific needsMulti-use systemEasy to installSafe operationEasy to use Pumpless electrolyte circulation; minimal moving parts.Variable hydrogen production from 25 - 100% of capacity.> 98% availability; efficiently manage hydrogen inventories.IMET > - A Generator Module can also be supplied with a standard deoxo-drier purification package for ٓfuel cell grade hydrogen.The deoxo vessel removes entrained oxygen through a catalytic reaction, and the drier removes...

HySTAT > ٙ SPECIFICATIONS Hydrogen Output Nm > 3 /h 1-3 4-15 16-30 31-45 46-60* (scfh) (38-114) (152-570) (608-1140) (1178-1710) (1748-2280) Cell Stack Technology IMET > 300 Series IMET > ή 1000 SeriesNumber of Cell Stacks 1 1 2 3 4 Maximum Pressure bar 25 10 or 25* (psi) (363) (145 or 363) Cell Surface Area cm > 2 300 1000 (in > 2 ) (46.5) (155) Standard Purity % 99.9** 99.9*** Power Consumption kWh/Nm > 3 4.2 4.2 (Electrolysis) (kWh/100scf) (11.0) (11.0) Power Consumption kWh/Nm > 3 4.9 4.8 (inc. rectifier and auxiliaries) (kWh/100scf) (12.9) (12.6) Power Supply ח 380 - 600 VAC / 50 - 60 Hz,...

HySTAT Cascade Storage > The cascade system consists of storage tanks arranged in a series of banksӔ managed by a control system that determines which bank > Hydrogenics HySTAT > ҙ Storage Module is composed of a series of storage tanks mechanically con- nected and electronically controlled by proprietary software. The Storage Module receives hydrogen directly from the Hydrogen Generation/ Compression Modules. When hydro- gen is required, the flow is managed according to customer requirements. The > Storage Module is available in two types of tanks, steel and composite. Both options are available...

Hydrogenicsْ HySTAT > Fuel Dispenser Module Dispenser Safety Features Many of the features and options of the HySTAT is available with a variety of options that meet the personal or commercial fueling needs of any customer. The Fuel Dispenser Module consists of a hose and nozzle, and a system that con- trols the operation of the dispenser and the flow of hydrogen or hydro- gen natural gas mixture to a vehicle. > ٙ Fuel Dispenser are designed to make the fueling of a hydrogen-powered vehicle familiar, comfortable and safe for customers. Hydrogenics uses Փhydrogen-only nozzles that are designed...

* For more in f ormation on t h e H y PM > ծ ran g e o f p ro d ucts re f e r to our we b site: www. hyd ro g enics.com >

Toyota & the National Fuel Cell Centre at the University of California Irvine Hydrogenics opened a small scale HySTAT HySTAT ٙ- - A A * Refueling Station for vehicle fueling in June 2005. This Refueler has been installed at the National Fuel Cell Research Center (NFCRC) at the University of California, Irvine. The refueler will provide clean Hydrogen fuel to the Toyota Fuel Cell Hybrid Vehicles (FCHV) managed by the NFCRC. > * Formerly known to as Stuart Energy Station (SES-f) Hydrogenicsْ HySTAT - A Refueling Station installed at the U.S.A. headquarters of Toyota Motor Sales in Torrance, California,...
