HYDRO LEDUC
Catalog excerpts

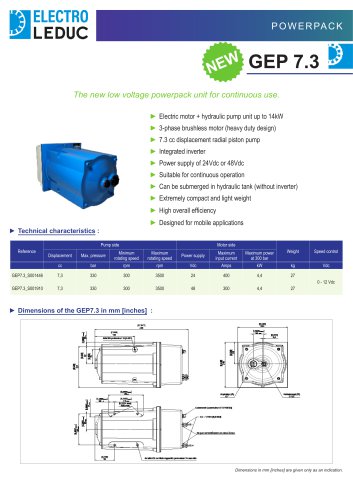

The new low voltage powerpack unit for continuous use. ► Electric motor + hydraulic pump unit up to 14kW ► 3-phase brushless motor (heavy duty design) ► 7.3 cc displacement radial piston pump ► Integrated inverter ► Power supply of 24Vdc or 48Vdc ► Suitable for continuous operation ► Can be submerged in hydraulic tank (without inverter) ► Extremely compact and light weight ► High overall efficiency ► Designed for mobile applications ► Technical characteristics : Reference Pump side Motor side Minimum rotating speed Maximum rotating speed Power supply Maximum input current Speed control Dimensions in mm [inches] are given o
Open the catalog to page 1
Flow (l/min) Flow (l/min) B : Speed supply input (+12 Vdc) A : Speed signal input (0 -> +12 Vdc) F : ON/OFF (0 : OFF / +24 Vdc : ON) C/E : Power supply (+ 24Vdc) D : Start info output (0 : motor OFF / +24 Vdc : motor ON) Electro-hydraulic schematic : Standard settings : Power supply 24 Vdc or 48 Vdc Input current 300 Amps Maximum current settings Inverter configuration Other set
