XYZ Keyway Cutter
1Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

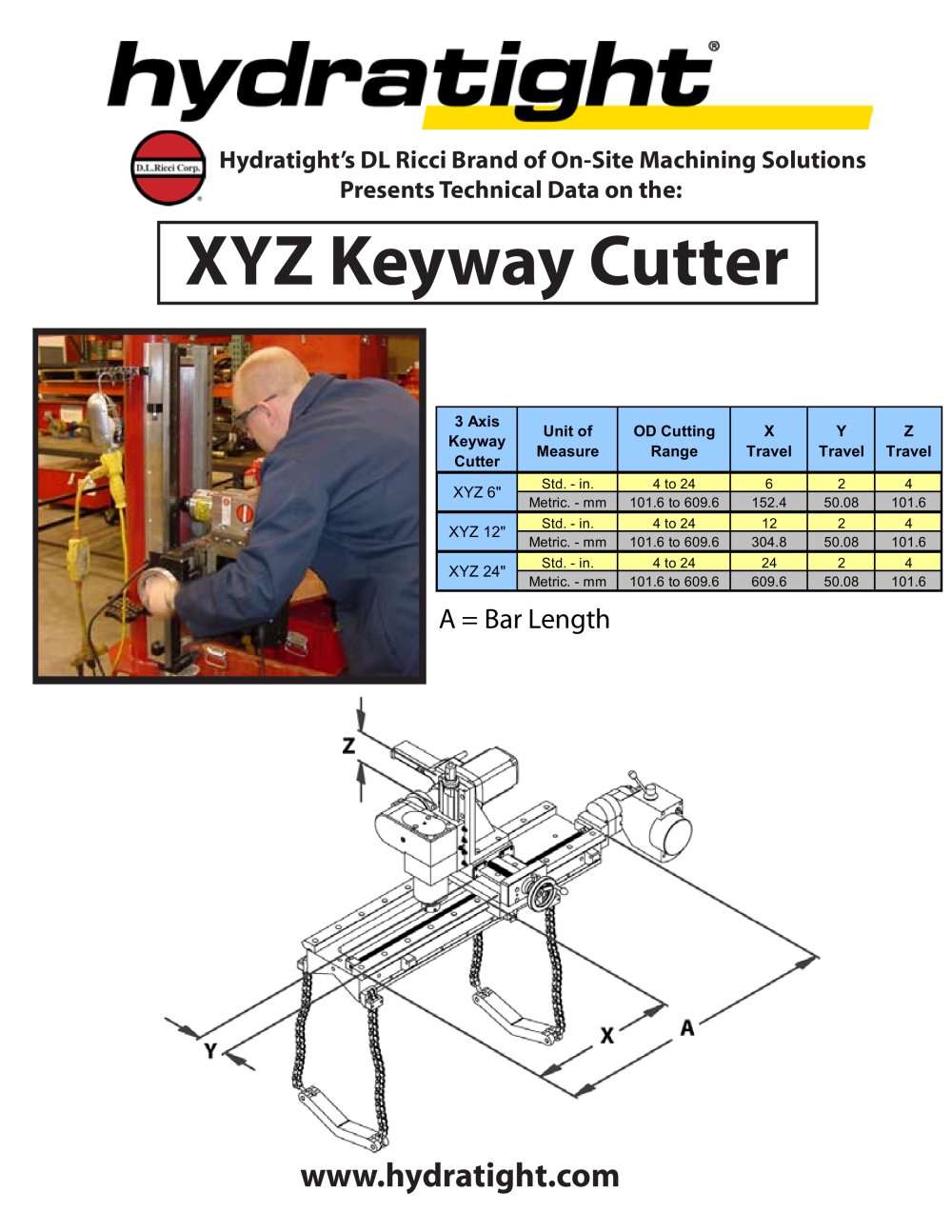

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: XYZ Keyway Cutter www.hydratight.com A = Bar Length 3 Axis Keyway Cutter Unit of Measure OD Cutting Range X Travel Y Travel Z Travel Std. - in. 4 to 24 6 2 4 Metric. - mm 101.6 to 609.6 152.4 50.08 101.6 Std. - in. 4 to 24 12 2 4 Metric. - mm 101.6 to 609.6 304.8 50.08 101.6 Std. - in. 4 to 24 24 2 4 Metric. - mm 101.6 to 609.6 609.6 50.08 101.6 XYZ 6" XYZ 12" XYZ 24"

Open the catalog to page 1
