QD Boring Bar
QD Boring Bar
- Bar Lengths: Available in 4', 6', and 8' lengths.
- Travel Max. Work Diameter: Ranges from 8.5 inches (215.9 mm) to 16.5 inches (419.1 mm).
- Min. Work Diameter: Ranges from 1.31 inches (33.27 mm) to 2.06 inches (52.32 mm).
- An optional facing head is available for the QD Bore Bar.
- Travel distances and screw lengths are specified for different bar lengths, indicating the operational range and flexibility of the equipment.
Catalog excerpts

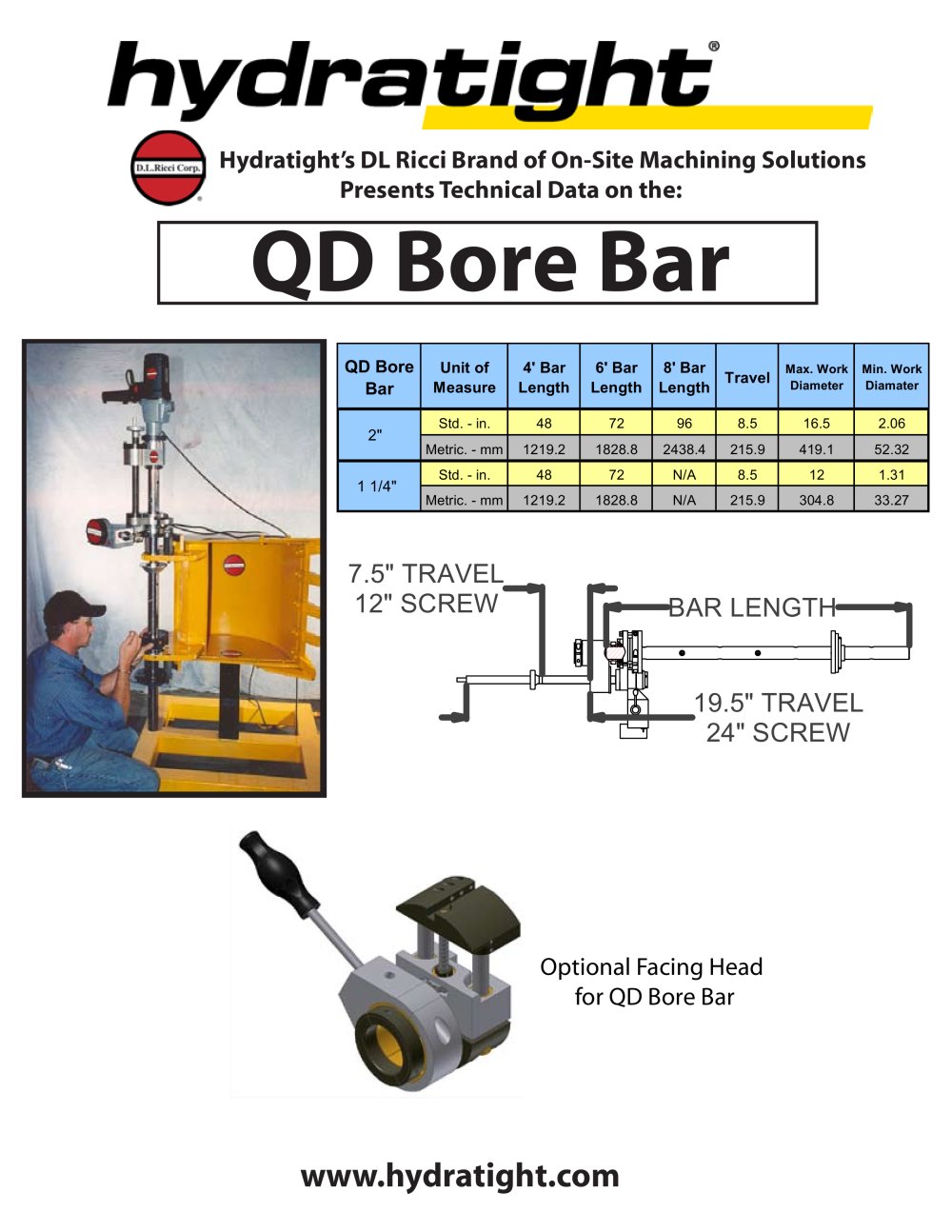

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: QD Bore Bar www.hydratight.com QD Bore Bar Unit of Measure 4' Bar Length 6' Bar Length 8' Bar Length Travel Max. Work Diameter Min. Work Diamater Std. - in. 48 72 96 8.5 16.5 2.06 Metric. - mm 1219.2 1828.8 2438.4 215.9 419.1 52.32 Std. - in. 48 72 N/A 8.5 12 1.31 Metric. - mm 1219.2 1828.8 N/A 215.9 304.8 33.27 2" 1 1/4" 7.5" TRAVEL 12" SCREW 19.5" TRAVEL 24" SCREW BAR LENGTH Optional Facing Head for QD Bore Bar
