Hydratight
PowerPak Air Ultra

PowerPak Air Ultra

Product catalog summary

Overview
The Powerkeg Air Powered Torque Wrench Pumps are designed for high efficiency and performance, specifically for hydraulic torque wrenches. These pumps are characterized by their durability, lightweight design, and optimal power-to-weight ratio, ensuring long life and low maintenance.

Features

High performance capable of operating single or multiple tools in parallel.
3-stage hydraulic pump for optimal performance with power and speed.
Overlay gauges for calibration with Hydratight torque wrenches.
Integrated heat exchanger to cool oil and warm exhaust air, preventing freezing.
Round design for easy handling and accessibility to connection points.
Designed for continuous operation in challenging conditions.

Specifications

Hydraulic Pump Output: Stage 1 - 7.5 l/m @ 80 bar, Stage 2 - 3.8 l/m @ 290 bar, Stage 3 - 1.0 l/m @ 690 bar.
Oil Reservoir Capacity: 10 litres.
Dimensions: 466 mm x Ø 375 mm.
System Weight: 30 kg (without oil).
Noise Level: 82 dBA - 86 dBA.

Productivity and Reliability

Long life and low maintenance.
High reliability with a three-year warranty.

Contact Information
Hydratight provides global support with offices in the USA, Brazil, UK, France, Germany, Holland, Azerbaijan, Saudi Arabia, Qatar, Trinidad, Singapore, and Australia. Contact details for each location are provided for customer support and inquiries.

Additional Information

Standard Powerkeg pumps are available without twin line hydraulic hose.
Stainless version available upon request.

Catalog excerpts

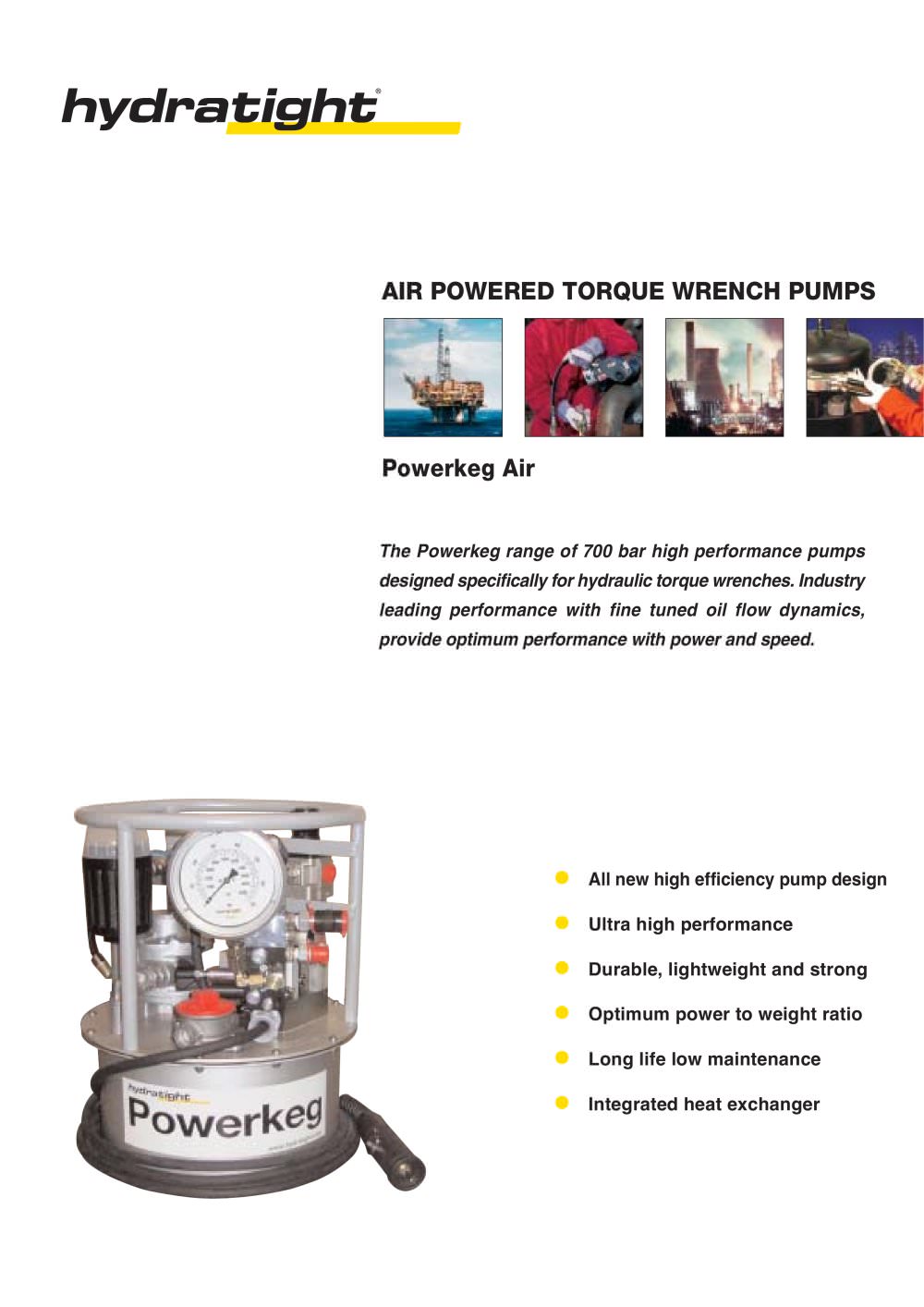

AIR POWERED TORQUE WRENCH PUMPS Powerkeg Air • All new high efficiency pump design • Ultra high performance • Durable, lightweight and strong • Optimum power to weight ratio • Long life low maintenance • Integrated heat exchanger The Powerkeg range of 700 bar high performance pumps designed specifically for hydraulic torque wrenches. Industry leading performance with fine tuned oil flow dynamics, provide optimum performance with power and speed.

Open the catalog to page 1

HT/PK/E/06-06 Global Joint Integrity Management Solutions Features Specification • Durable and lightweight • Ultra high performance capable of operating single or multiple tools in parallel • Industry leading performance from 3-stage hydraulic pump, providing optimum performance for hydraulic torque wrenches with power and speed • Overlay gauges calibrate the pump for all Hydratight torque wrenches • Heat exchanger cools the oil and warms exhaust air to prevent freezing • Ingenious round design significantly eases operator handling and ensures maximum accessibility to connection points • Designed...
