PowaPak Electric data sheet

PowaPak Electric data sheet

Product catalog summary

Overview: The PowaPak Electric is a high-efficiency, electric-powered hydraulic pump designed for bolting applications. It offers higher flow rates, cooler operation, lower power consumption, and increased service life. The pump operates at 700 bar and is available in 110V or 230V options.

Key Features:

Unique brush design extends brush life up to four times the standard.
External access to brush cavity for easy and rapid brush changes.
Auto stop shunt to prevent commutator damage.
Low voltage pendant with sealed switches for operator safety.
Auto cycle and pressure readout in PSI, BAR, and MPa.
Includes pump history, running hours, cycle count, low voltage warning, and recording.
Self-test and diagnostic functions.
Multilingual support in English, French, German, Italian, Portuguese, and Spanish.

Specifications:

Hydraulic Pump Output: Stage 1 - 7.78 l/m @70 bar; Stage 2 - 1 l/m @700 bar.
Oil Reservoir Capacity: 4 litres.
Dimensions: 432 mm H x 414 mm W x 267 mm D.
System Weight: 28 kg without oil.
Noise Level: 85-90 dBA.

Ordering Information: The pump can be ordered using a menu-based part number system. Standard pump units come with optional accessories such as heat exchangers, skid bars, 4 port manifolds, roll cages, and CEJN type couplings.

Contact Information: Hydratight has offices worldwide, including in the USA, Brazil, UK, France, Germany, Holland, Azerbaijan, Saudi Arabia, Qatar, Trinidad, Singapore, and Australia. Contact details for each location are provided for inquiries and support.

Catalog excerpts

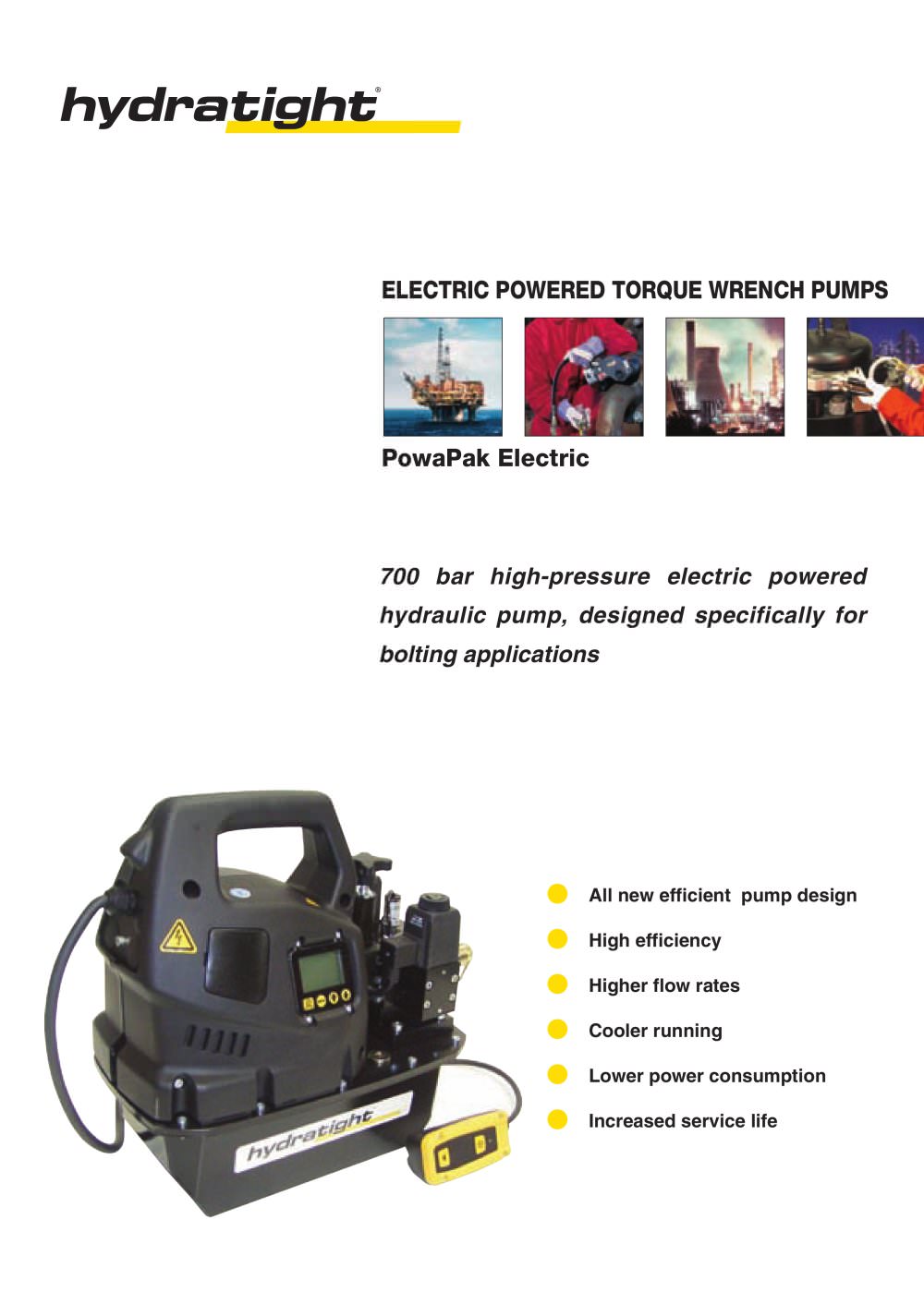

ELECTRIC POWERED TORQUE WRENCH PUMPS PowaPak Electric • All new efficient pump design • High efficiency • Higher flow rates • Cooler running • Lower power consumption • Increased service life 700 bar high-pressure electric powered hydraulic pump, designed specifically for bolting applications

Open the catalog to page 1

• 2 options 110V or 230V • Unique brush design up to 4 times standard brush life • External access to brush cavity allows easy and rapid brush change • “Auto stop” shunt to prevent commutator damage • Low voltage pendant (15 vdc) sealed switches for operator safety • Auto cycle • Pressure read out in PSI, BAR, MPa • Pump history, running hours and cycle count • Low voltage warning and recording • Self-test and diagnostic function • 6 m pendant length • 0.6 m power cable • Multilingual-English, French, German, Italian, Portugese and Spanish HT/ZU/E/06-06 Global Joint Integrity Management Solutions...

Open the catalog to page 2
