Oval Manway Seat Grinder

Oval Manway Seat Grinder

Product catalog summary

Overview: The document provides technical data for Hydratight's DL Ricci brand Oval Manway Seat Grinder, a solution for on-site machining.

Specifications: The Oval Manway Seat Grinder is available in standard and extended versions. The unit of measure is provided in both inches and millimeters.

Dimensions:

Standard Version:
- X min: 12.5 in (317.5 mm)
- X max: 19.5 in (495.3 mm)
- Y min: 8.5 in (215.9 mm)
- Y max: 15.5 in (393.7 mm)
- Max OD: 20 in (508 mm)
With Extension:
- X min: 18.5 in (469.9 mm)
- X max: 25.5 in (647.7 mm)
- Y min: 14.5 in (368.3 mm)
- Y max: 21.5 in (546.1 mm)
- Max OD: 28 in (711.2 mm)

Key Information: The document highlights the range of dimensions the grinder can accommodate, emphasizing its versatility for different on-site machining needs.

Catalog excerpts

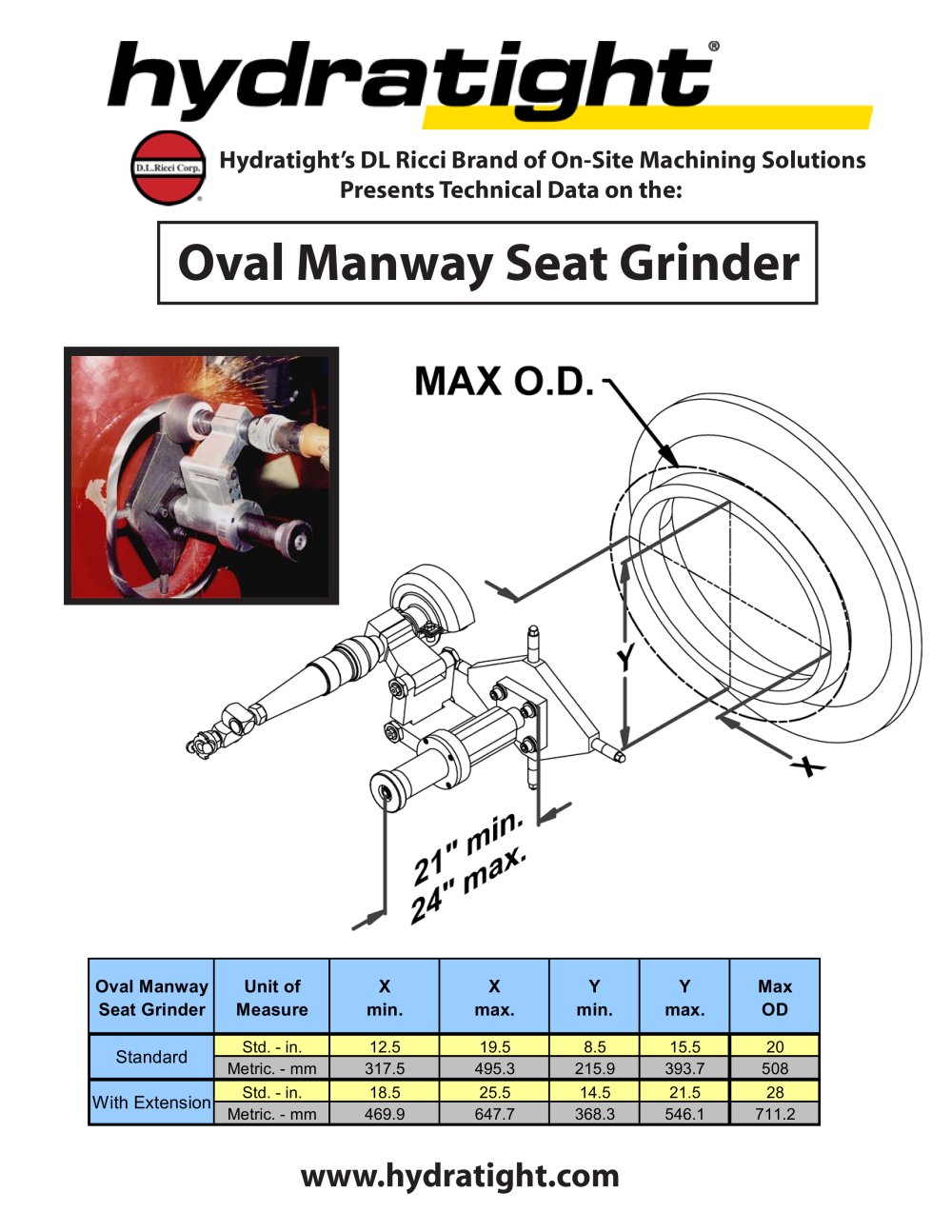

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: www.hydratight.com Oval Manway Seat Grinder Oval Manway Seat Grinder Unit of Measure X min. X max. Y min. Y max. Max OD Std. - in. 12.5 19.5 8.5 15.5 20 Metric. - mm 317.5 495.3 215.9 393.7 508 Std. - in. 18.5 25.5 14.5 21.5 28 Metric. - mm 469.9 647.7 368.3 546.1 711.2 Standard With Extension

Open the catalog to page 1
