Product catalog summary

Technical Specifications Summary

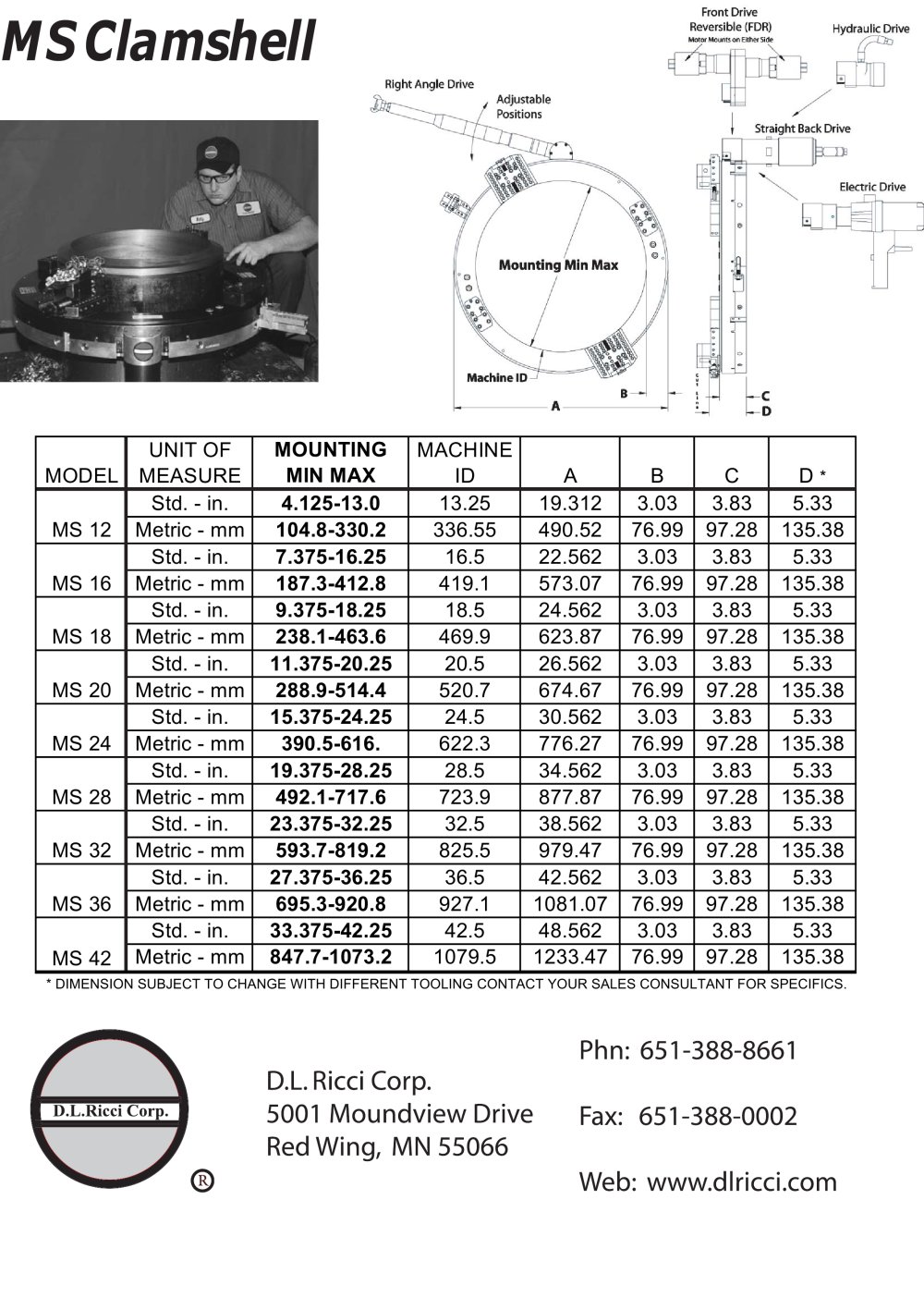

Overview: This document provides detailed specifications for various models of MS Clamshell machines, including both standard and metric measurements. The specifications cover dimensions and mounting requirements for each model.

Specifications:

Model MS 12:
- Standard (inches): Mounting range 4.125-13.0, Max 13.25, Machine dimensions A: 19.312, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 104.8-330.2, Max 336.55, Machine dimensions A: 490.52, B: 76.99, C: 97.28, D: 135.38
Model MS 16:
- Standard (inches): Mounting range 7.375-16.25, Max 16.5, Machine dimensions A: 22.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 187.3-412.8, Max 419.1, Machine dimensions A: 573.07, B: 76.99, C: 97.28, D: 135.38
Model MS 18:
- Standard (inches): Mounting range 9.375-18.25, Max 18.5, Machine dimensions A: 24.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 238.1-463.6, Max 469.9, Machine dimensions A: 623.87, B: 76.99, C: 97.28, D: 135.38
Model MS 20:
- Standard (inches): Mounting range 11.375-20.25, Max 20.5, Machine dimensions A: 26.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 288.9-514.4, Max 520.7, Machine dimensions A: 674.67, B: 76.99, C: 97.28, D: 135.38
Model MS 24:
- Standard (inches): Mounting range 15.375-24.25, Max 24.5, Machine dimensions A: 30.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 390.5-616.0, Max 622.3, Machine dimensions A: 776.27, B: 76.99, C: 97.28, D: 135.38
Model MS 28:
- Standard (inches): Mounting range 19.375-28.25, Max 28.5, Machine dimensions A: 34.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 492.1-717.6, Max 723.9, Machine dimensions A: 877.87, B: 76.99, C: 97.28, D: 135.38
Model MS 32:
- Standard (inches): Mounting range 23.375-32.25, Max 32.5, Machine dimensions A: 38.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 593.7-819.2, Max 825.5, Machine dimensions A: 979.47, B: 76.99, C: 97.28, D: 135.38
Model MS 36:
- Standard (inches): Mounting range 27.375-36.25, Max 36.5, Machine dimensions A: 42.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 695.3-920.8, Max 927.1, Machine dimensions A: 1081.07, B: 76.99, C: 97.28, D: 135.38
Model MS 42:
- Standard (inches): Mounting range 33.375-42.25, Max 42.5, Machine dimensions A: 48.562, B: 3.03, C: 3.83, D: 5.33
- Metric (mm): Mounting range 847.7-1073.2, Max 1079.5, Machine dimensions A: 1233.47, B: 76.99, C: 97.28, D: 135.38

Note: Dimensions are subject to change with different tooling. Contact your sales consultant for specifics.
