MC clamshell

Product catalog summary

Technical Data Overview for Hydratight’s DL Ricci MC Clamshell Model

Product Description

The document provides technical specifications for the Hydratight DL Ricci brand MC Clamshell, an on-site machining solution designed for precise mounting and machining operations.

Specifications

Model: MC
Mounting Diameter Range: Minimum 0.840 inches (21.3 mm) to Maximum 2.375 inches (60.3 mm)
Dimensions:

Dimension	Inches (Std.)	Millimeters (Metric)
A	2.625	66.7
B	6.438	163.5
C	3.25	82.6
D	1.906	48.4
Additional Dimension	4.313	109.5

Key Points

The MC Clamshell is designed for mounting on shafts or machine IDs within the specified diameter range.
Dimensions are provided in both imperial and metric units for international applicability.
The data supports selection and setup for on-site machining tasks requiring precise clamping and alignment.

Notes

The document references an MC2 model, but no further data is provided for this variant.

Catalog excerpts

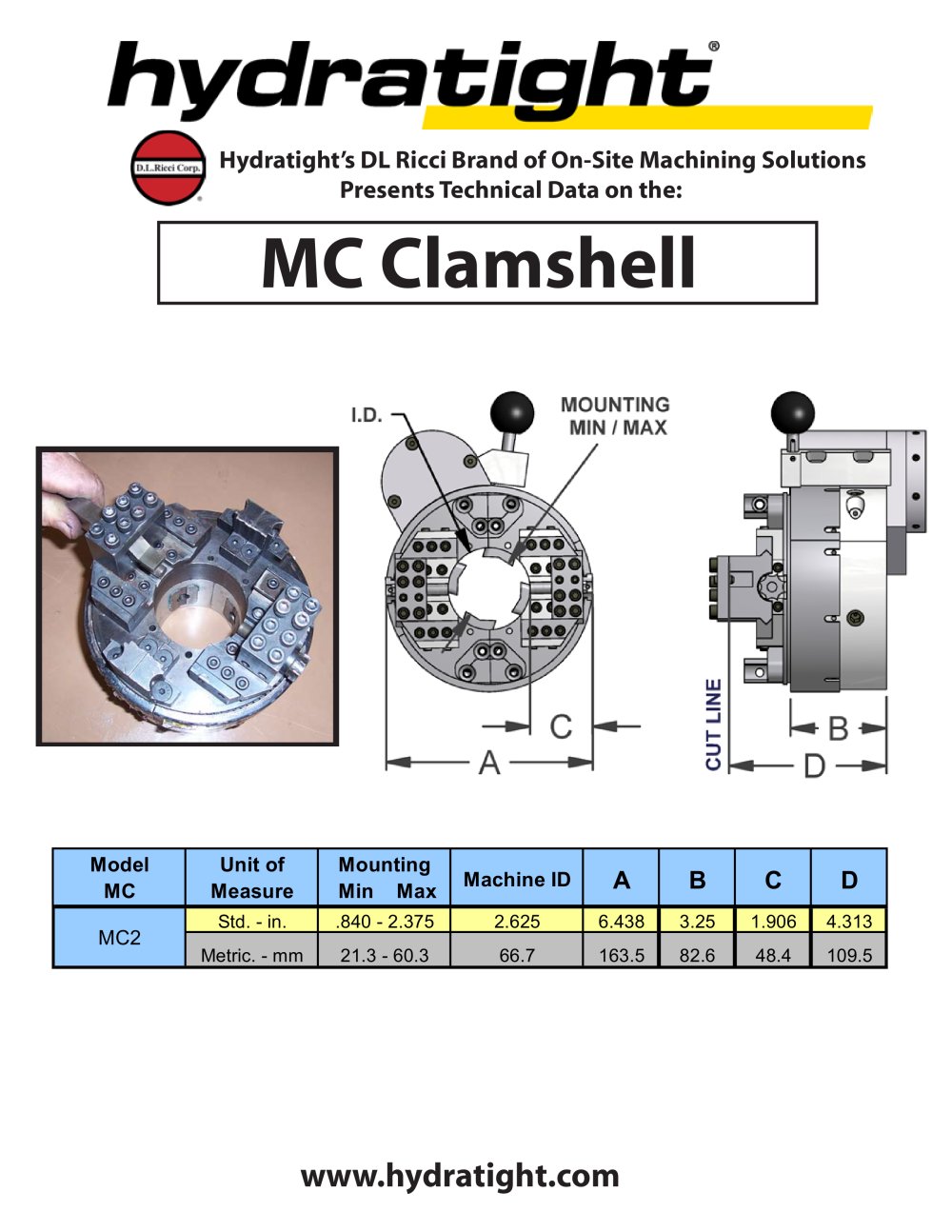

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: www.hydratight.com MC Clamshell Model MC Unit of Measure Mounting Min Max Machine ID A B C D Std. - in. .840 - 2.375 2.625 6.438 3.25 1.906 4.313 Metric. - mm 21.3 - 60.3 66.7 163.5 82.6 48.4 109.5 MC2

Open the catalog to page 1
