Hydraulic Power Supply Units
Hydraulic Power Supply Units
- Power Supply Units: The document details two main configurations of hydraulic power supplies, differentiated by their power requirements and output capabilities.
- Standard Units: Available in both standard and metric measurements, the units are designed for 3-phase power at 440 volts, with flow rates ranging from 3 to 17.5 gallons per minute (11.4 to 66.5 liters per minute) and pressures up to 200 PSI (137.9 Bar).
- Drive Motor Power: The units require drive motor power of 10HP or 20HP, corresponding to 7.45 kW and 14.9 kW respectively.
- Dimensions: The dimensions for the units are provided in both inches and millimeters, ensuring compatibility with various installation requirements.
- Flow Rate: The flow rate is adjustable, allowing for precise control over hydraulic operations.
- Pressure Range: The units support a wide pressure range, making them suitable for diverse applications.
- Ensure compatibility with existing systems by verifying voltage and phase requirements.
- Consider the specific flow rate and pressure needs of your application when selecting a unit.
Catalog excerpts

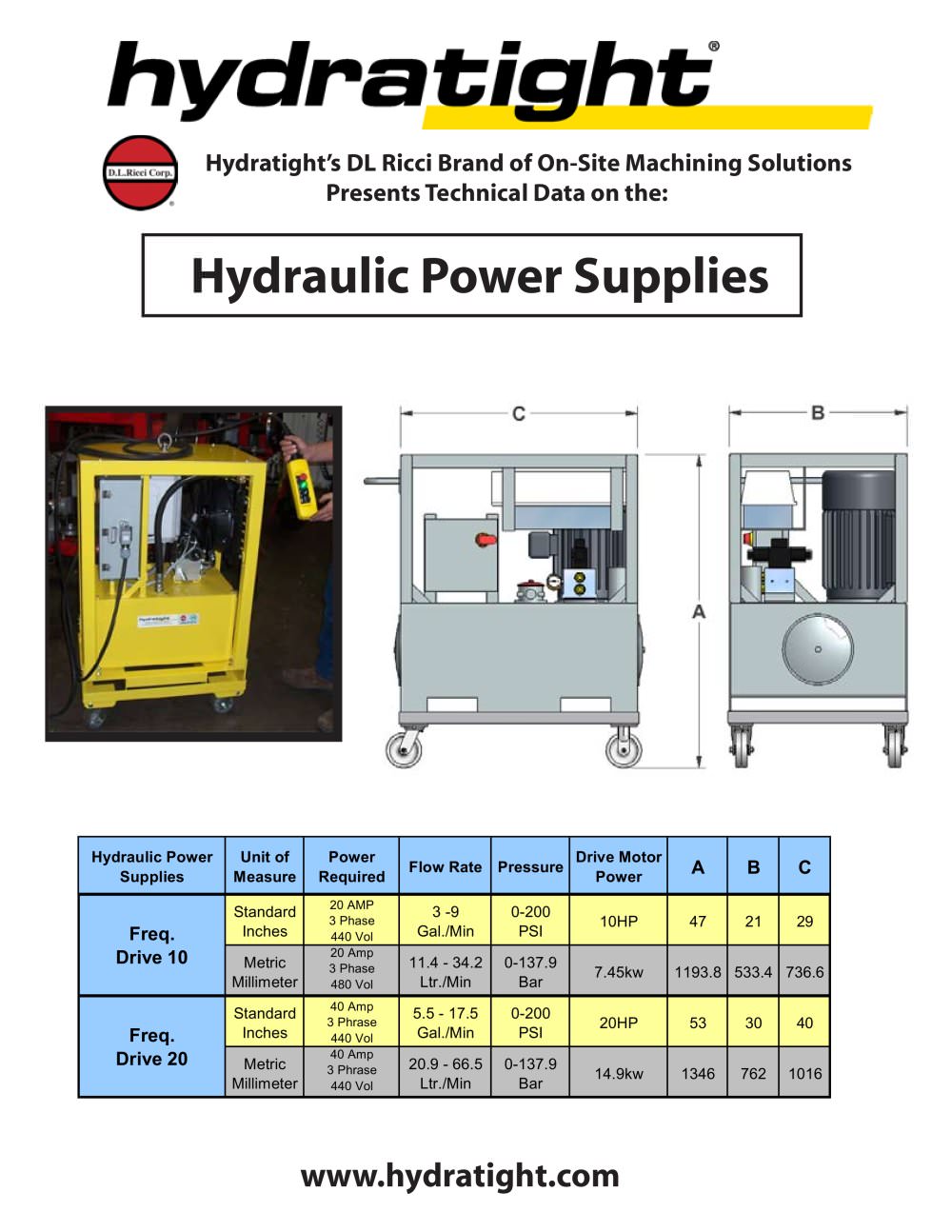

www.hydratight.com Hydraulic Power Supplies Hydraulic Power Supplies Unit of Measure Power Required Flow Rate Pressure Drive Motor Power A B C Standard Inches 20 AMP 3 Phase 440 Vol 3 -9 Gal./Min 0-200 PSI 10HP 47 21 29 Metric Millimeter 20 Amp 3 Phase 480 Vol 11.4 - 34.2 Ltr./Min 0-137.9 Bar 7.45kw 1193.8 533.4 736.6 Standard Inches 40 Amp 3 Phrase 440 Vol 5.5 - 17.5 Gal./Min 0-200 PSI 20HP 53 30 40 Metric Millimeter 40 Amp 3 Phrase 440 Vol 20.9 - 66.5 Ltr./Min 0-137.9 Bar 14.9kw 1346 762 1016 Freq. Drive 10 Freq. Drive 20 Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the:
