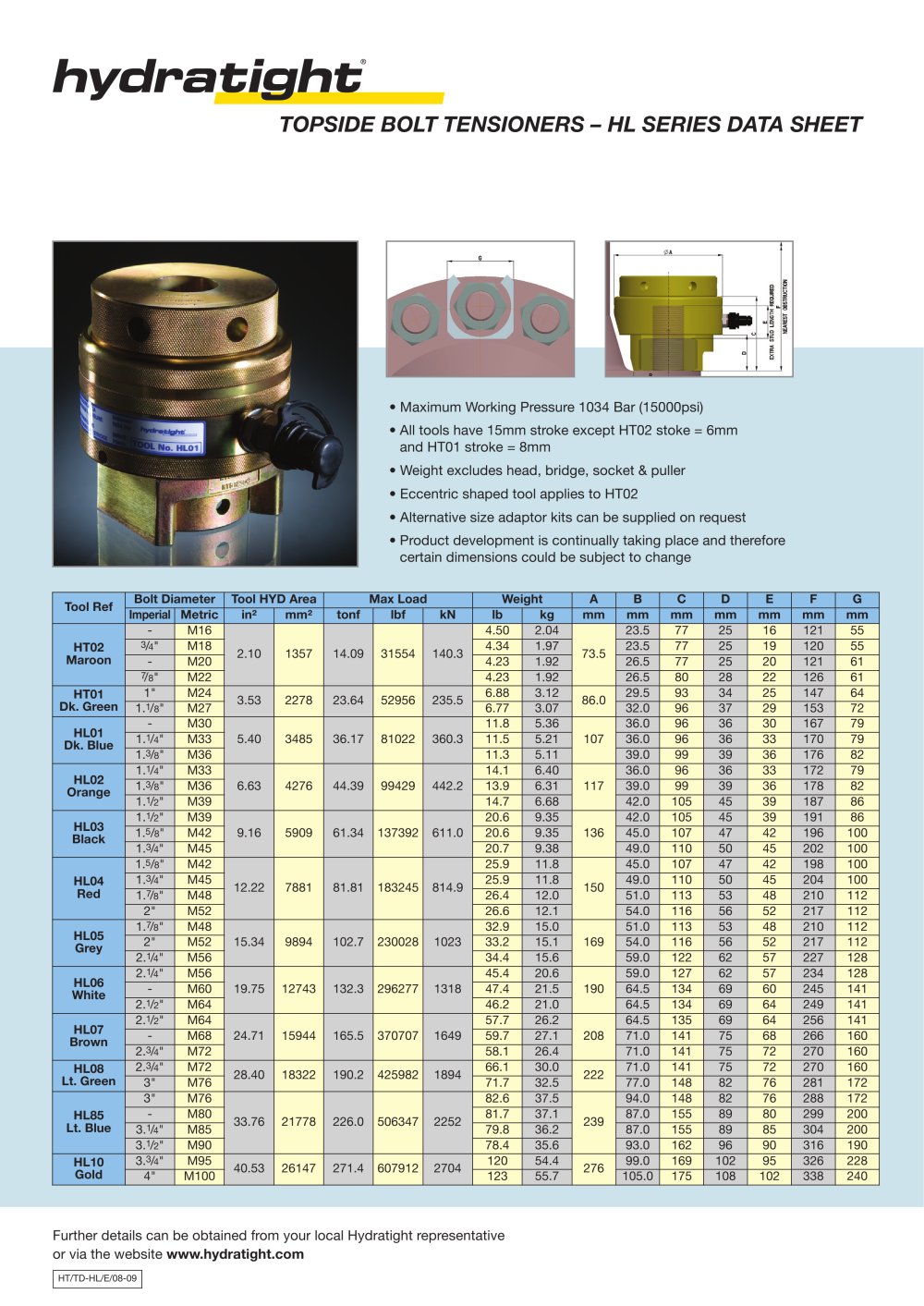

HL Tensioner
1 / 1 PageView full catalog
HL Tensioner
Product catalog summary
Overview: The document provides technical specifications for the HL Series of topside bolt tensioners, highlighting their maximum working pressure, stroke lengths, and weight considerations. It also notes the availability of alternative size adaptor kits and the potential for changes due to ongoing product development.
Specifications:
- Maximum Working Pressure: 1034 Bar (15000 psi)
- Stroke Lengths: Generally 15mm, except HT02 (6mm) and HT01 (8mm)
- Weight Considerations: Excludes head, bridge, socket, and puller
- Tool Shape: Eccentric shape applies to HT02
Tool Reference Details: The document lists various tools with their respective bolt diameters, hydraulic areas, maximum loads, and dimensions. Each tool is identified by a color code and includes both imperial and metric measurements. Key parameters include:
- HT02 (Maroon): Suitable for M16 to M22 bolts, with a hydraulic area of 2.10 in² and a maximum load of 14.09 tonf.
- HT01 (Dark Green): Suitable for M24 to M27 bolts, with a hydraulic area of 3.53 in² and a maximum load of 23.64 tonf.
- HL01 (Dark Blue): Suitable for M30 to M36 bolts, with a hydraulic area of 5.40 in² and a maximum load of 36.17 tonf.
- HL02 (Orange): Suitable for M33 to M39 bolts, with a hydraulic area of 6.63 in² and a maximum load of 44.39 tonf.
- HL03 (Black): Suitable for M39 to M45 bolts, with a hydraulic area of 9.16 in² and a maximum load of 61.34 tonf.
- HL04 (Red): Suitable for M42 to M52 bolts, with a hydraulic area of 12.22 in² and a maximum load of 81.81 tonf.
- HL05 (Grey): Suitable for M48 to M56 bolts, with a hydraulic area of 15.34 in² and a maximum load of 102.7 tonf.
- HL06 (White): Suitable for M56 to M64 bolts, with a hydraulic area of 19.75 in² and a maximum load of 132.3 tonf.
- HL07 (Brown): Suitable for M64 to M72 bolts, with a hydraulic area of 24.71 in² and a maximum load of 165.5 tonf.
- HL08 (Light Green): Suitable for M72 to M76 bolts, with a hydraulic area of 28.40 in² and a maximum load of 190.2 tonf.
- HL85 (Light Blue): Suitable for M76 to M90 bolts, with a hydraulic area of 33.76 in² and a maximum load of 226.0 tonf.
- HL10 (Gold): Suitable for M95 to M100 bolts, with a hydraulic area of 40.53 in² and a maximum load of 271.4 tonf.
Additional Information: For further details, users are directed to contact their local Hydratight representative or visit the website www.hydratight.com.
